ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
Specifications
Brand Name :
BOTO
Model Number :
BT-S-250
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
170 Set/Sets per Month
Delivery Time :
5-25 days
Packaging Details :
wooden case
Internal dimensions (mm) :
640*1000*500
Overall dimensions (mm) :
810*1800*1180
Temperature range :
Ambient ~60℃
Humidity range :
95% ~ 98% RH
Temperature fluctuations :
+/- 0.5 ℃
Temperature deviation: :
+/- 2.0 ℃
Test time :
1~999 hours, settable
Spray deposition :
1~2ml / 80cm2 · h
Spray type :
Continuous / Periodic
Interior /Exterior material :
Glass fiber reinforced plastics
Power Supply :
AC 220V 50HZ
Test standard :
ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Description

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

Advantages of Salt Spray Environment Test Chamber

● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.

● Brine in high uniformity, not easy to caking, not blocking atomizer system

● Quartz nozzle, high temperature resistant, no blocking, easy to clean.

Specifications of Salt Spray Environment Test Chamber

Product Name
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
Model
BT-S-150
BT-S-250
BT-S-750
Internal dimensions (mm)
470*590*400
640*1000*500
750*1100*500
Overall dimensions (mm)
620*1400*1050
810*1800*1180
920*1900*1200
Temperature range
Ambient ~60℃
Humidity range
95% ~ 98% RH
Temperature fluctuations
+/- 0.5 ℃
Temperature deviation:
+/- 2.0 ℃
Test time
1~999 hours, settable
Spray deposition
1~2ml / 80cm2 · h
Spray type
Continuous / Periodic
Interior /Exterior material
Glass fiber reinforced plastics
Power Supply
AC 220V 50HZ
Test standard
ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227

Details of Salt Spray Environment Test Chamber

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

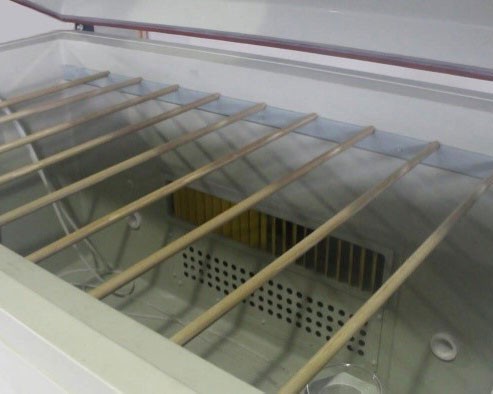

Test Area

● Glass Fiber Reinforced Plastics, strong corrosion resistance, long service lifespan, strong plasticity.

● Quartz nozzle, high temperature resistant, no blocking, easy to clean.
● Sample Holder, round bar+ V shape groove,It also can be customized.

● Air circulation, circulation system for air cycling, easy to maintain humidity.

● Heater strip housed in base of chamber, effectively & evenly heating.
ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

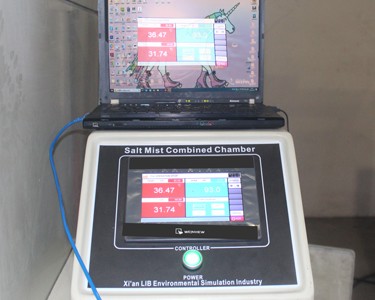

Control Panel

● Equip with PLC touch screen controller, can set programs directly on controller.

● Multi-language, English, Polish language, Turkish, Portuguese, Spanish,French, Russia, Chinese.

● With Ethernet interface, able to download testing data to PC, More function performed, combined climate and salt spray into one chamber.
● USB, RS-232, APP.

Atomizer Tower and Spraying

● Semi-Automatic PET Bottle Blowing Machine Bottle

● Making Machine Bottle Moulding Machine, automizer Tower and Spraying

● Corrosion-resistant atomizer tower.
● Corrosion-resistant quartz spray nozzles.
● Fog is more fine and uniform distribution
● Perform a variety of salt corrosion test.

Air Circulation

● Only for cyclic salt spray test chamber for temperature and humidity test, have circulation system for air cycling,
easy to maintain humidity.
