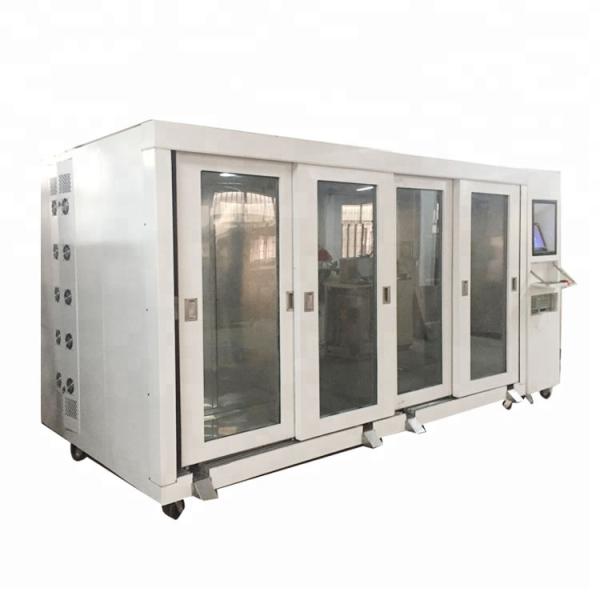

PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
Specifications
Brand Name :
BOTO
Model Number :
BT-YBRT
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T100
Supply Ability :
Set/Sets per Month
Delivery Time :
5-25 days
Packaging Details :
wooden case
Product name: :
Phone LCD screen burn-in chamber
Certificate: :
CE and ISO9001
Inner chamber material: :
SUS#304 Stainless steel
Temp.fluctuation: :
±0.3°C
Temp. range: :
R.T+10°C ~+80°C
Power: :
Electronic
Insulation: :
PU&fiberglass wool
Color: :
Gray
Exterior chamber material: :
SUS 304/PVC+stainless steel powder coating
Indication resolution: :
±0.1°C
Heating insulation material: :
Polyurethane foam 60mm
Description

PCB board programmable burn-in test equipment phone LCD screen electricity aging burn-in aging test chamber

Product Description

Burn-in aging test chamber uses elevated voltages, temperatures and power cycling to evaluate high power chips, boards or products. Also the equipment is used by semiconductor manufacturers to test the quality of an integrated circuit (IC), printed circuit board (PCB), application-specific integrated circuits (ASICs), and other microprocessors. And may also be known as life testing equipment, and so on.

PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
Model
BT-YBRT
Internal Dim.W×H×D(mm)
Please refer to size chart
External Dim.W×H×D(mm)
Temp. Range
R.T+10°C ~+80°C
Performance
Temp. Constancy
±0.3°C
Indication Resolution
±0.1°C
Material
Exterior
SUS#304 Stainless steel/PVC+Powder Coated
Interior
SUS#304 Stainless steel plate
Insulation
Polyurethane foam 60mm
Power Source(K.W.)
AC 1Ψ 220V;3Ψ 380V 60/50Hz

Optional Accessories

1 USB device 5 Pass room

2 Humi.recorder 6 Double wing door

3 SCR(PID+SCR) control technology 7 Unlimited remote control network

4 Computer records software 8 Dedication test vehicles

PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
PCB Board Programmable Burn-In Test Equipment Phone LCD Screen Electricity Aging Burn-In Aging Test Chamber
