Random Vibration Test Machine

• Realistic Random Vibration Simulation
  • The random vibration test machine is capable of generating a wide - spectrum random vibration profile, typically covering a frequency range from 2 Hz to 2000 Hz. This broad range enables the replication of the complex and unpredictable vibration patterns that sensors and instruments are likely to encounter in real - world applications. The machine can precisely control the vibration power spectral density (PSD), allowing for the accurate reproduction of different levels of random vibration intensity.
  • The random vibration generation is based on sophisticated algorithms that mimic the actual vibration sources in various industries. For example, in the automotive industry, sensors may experience vibrations from the engine, suspension, and road irregularities. The test machine can generate vibration profiles that closely resemble these real - world vibrations, helping manufacturers to identify potential issues related to component failures, signal interference, or inaccurate measurements caused by vibrations.
• Multi - Axis Vibration Capability
  • It can generate vibrations in multiple axes, usually three - axis (X, Y, and Z), which is essential for sensors and instruments as they often experience vibrations from different directions simultaneously. In an aircraft, for instance, sensors may be subjected to vibrations in all three axes during flight due to engine vibrations, air turbulence, and the movement of the aircraft's structure. The multi - axis vibration capability of the test machine allows for a more realistic simulation of these complex mechanical stresses, enabling manufacturers to test the performance of sensors and instruments under more representative conditions.
• Customizable Test Profiles
  • Operators have the flexibility to create highly customizable random vibration test profiles. They can define parameters such as the test duration, frequency bands, and PSD levels to match the specific vibration conditions of different applications. For example, a test profile can be designed to simulate the vibrations experienced by a sensor during a long - distance truck transportation, which may involve a combination of low - frequency vibrations from the vehicle's movement and high - frequency vibrations from road bumps.

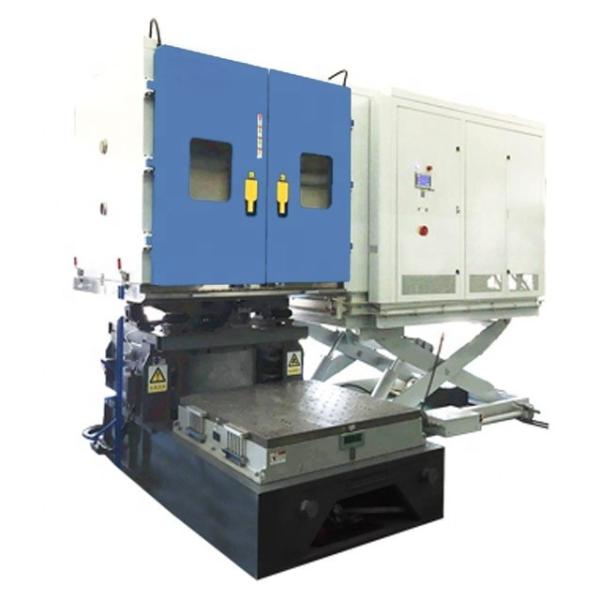

Humidity and Temperature Chamber

• Wide Humidity and Temperature Range
  • The humidity and temperature chamber integrated with the random vibration test machine can create a broad range of environmental conditions. The temperature can be adjusted from extremely low values, such as - 40°C to simulate cold storage or arctic conditions, to high temperatures of up to + 85°C to mimic hot industrial environments or tropical climates. The humidity control can maintain relative humidity levels from 10% to 95%, enabling the testing of how sensors and instruments respond to different moisture levels.
  • This wide range of conditions is crucial as sensors and instruments are used in a variety of applications with different environmental requirements. For example, humidity sensors need to be tested under a wide range of humidity levels to ensure their accuracy, and temperature - sensitive instruments must be able to function properly in both cold and hot environments.
• Fast Transitions
  • Sensors and instruments may experience rapid changes in temperature and humidity in real - world scenarios. The chamber is capable of rapid transitions, with temperature transition rates of up to 10°C/min and humidity transition rates of up to 5%/min. This allows for the testing of how the devices respond to sudden environmental changes, which can be a significant stress factor for their performance and reliability. For example, a sensor in a manufacturing process may experience a sudden change in temperature and humidity when a new batch of materials is introduced.
• Uniform Environmental Conditions
  • The interior of the humidity and temperature chamber is designed to provide uniform environmental conditions throughout the test volume. The temperature variation within the chamber is typically within ±1°C, and the humidity variation is within ±5% relative humidity. This ensures that all parts of the sensors and instruments being tested are exposed to the same environmental conditions, resulting in reliable and consistent test results.

Integrated Control and Monitoring

• User - Friendly Interface
  • The entire test system is controlled through a user - friendly interface that simplifies the operation process. The interface allows operators to easily set and adjust the test parameters for both the random vibration test machine and the humidity and temperature chamber. It provides a clear display of the current test status, including vibration frequencies, PSD levels, temperature, humidity, and elapsed test time. The interface is designed to be intuitive, even for users with limited technical expertise, ensuring efficient and accurate testing.
• Comprehensive Data Acquisition and Analysis
  • Equipped with a comprehensive data acquisition system, the test system records all relevant data during the test. This includes vibration measurements in multiple axes, temperature and humidity profiles, and the performance data of the sensors and instruments, such as measurement accuracy, response time, and signal stability. The data can be stored in a secure database and analyzed using advanced software tools. The system can generate detailed test reports, including graphs, charts, and statistical analysis, to help engineers and researchers understand the test results and make informed decisions.
• Remote Monitoring and Control
  • Many models of this combined test system offer remote monitoring and control capabilities. This feature is particularly useful for manufacturers who need to conduct tests in large facilities or in remote locations. Operators can monitor the test progress and adjust the test parameters from a remote location, such as an office or a control center. This allows for continuous supervision and timely intervention, ensuring the efficiency and effectiveness of the testing process.

3. Specific Parameters

• Random Vibration Test Machine Parameters

  • Rated Sine Force	300kgf- 8000kg.f
    Frequency Range	DC-3000Hz
    Max. Displacement p-p	51-100mm
    Max acceleration	100g
    Max. Velocity (m/s)	2.0
    Max. Payload	300-5000kg

• Humidity and Temperature Chamber Parameters

  • Model	CTHC-80	CTHC-150	CTHC-225	CTHC-408	CTHC-800	CTHC-1000
    Inside dimension(W x D x H) cm	40 x 50 x40	50 x 60 x 50	50 x 75 x 60	60 x 85 x 80	100 x 100 x 80	100 x 100 x 100
    Outside dimension(W x D x H) cm	95 x 140 x 95	105 x 150 x 105	105 x 165 x 115	115 x 175 x 140	155 x 190 x 140	155 x 190 x 160
    Internal material	#304 Stainless Steel
    External material	Powder coated #304 Stainless Steel
    Temperature range	+ 150℃~ - 70 ℃
    Humidity range	10% ~ 98% R. H
    Temperature Uniformity ℃	0.01
    Humidity Uniformity % R. H.	0.1
    Temperature stability ℃	±0.3
    Humidity stability % R. H.	±2
    High temperature ℃	100	100	100	100	100	100
    Heating time (min)	20	30	30	30	30	30
    Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
    Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
    Air circulation system	Mechanical convection system
    Cooling system	Imported compressor, fin evaporator, gas condenser
    Heating system	Sus304 Stainless steel High-speed heater
    Humidification system	Steam Generator
    Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
    Controller	Touch panel
    Electrical power requirements	Please contact us for requirements of specific models
    Accessories	Multi-layer enhanced glass window,test hole, action indicator light, case lighting barrier shelf x2
    Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

4. Product Functions

• Reliability and Durability Testing
  • By subjecting sensors and instruments to combined random vibrations and humidity - temperature stress, the system helps identify potential weaknesses and failure points. This allows for the improvement of product designs to enhance reliability and durability, reducing the risk of device failures during long - term operation. In applications where accurate measurements are critical, such as in medical devices or aerospace systems, the reliability of sensors and instruments is of utmost importance.
• Performance Evaluation
  • The data collected from the tests provides valuable insights into how sensors and instruments perform under different conditions. Engineers can use this information to evaluate the accuracy, precision, and response time of the devices. For example, if a pressure sensor shows a significant deviation in measurement under high - vibration and high - humidity conditions, the design can be optimized to improve its performance.
• Quality Control
  • The system serves as a crucial tool for quality control in the manufacturing of sensors and instruments. By testing each device before it is shipped to customers, manufacturers can ensure that it meets the strict quality standards set by the industry. This helps to prevent defective products from reaching the market, protecting the manufacturer's reputation and ensuring customer satisfaction.
• Compliance Testing
  • The sensor and instrument industry is subject to various national and international standards and regulations regarding the performance and reliability of devices. The random vibration test machine combined with the humidity and temperature chamber enables manufacturers to conduct compliance testing to ensure that their products meet these requirements. For example, standards may specify the maximum vibration levels and humidity - temperature ranges that sensors and instruments must withstand.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The manufacturing of this combined test system follows strict quality control procedures. Each component, from the random vibration test machine's drive system and the humidity and temperature chamber's sensors to the control electronics and structural frame, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The system is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  • Our test system has obtained relevant quality certifications, such as ISO standards for testing equipment and industry - specific certifications. It has also been validated by independent testing laboratories to ensure that it meets industry standards and provides accurate and reliable test results. We continuously update and improve our product based on the latest technological advancements and customer feedback to maintain its high quality and performance.

6. Application Areas and Success Stories

• Automotive Sensor Testing
  • A leading automotive sensor manufacturer used the system to test a new type of tire pressure sensor. The sensor was subjected to a combination of random vibrations to simulate the vibrations during vehicle driving and different humidity and temperature conditions to mimic various weather and road conditions. The testing revealed that the sensor's battery life was significantly reduced under high - humidity and high - vibration conditions. By improving the battery's sealing and optimizing the power management system, the manufacturer was able to enhance the sensor's performance and reliability.
• Aerospace Instrument Testing
  • An aerospace company utilized the system to test an inertial measurement unit (IMU). The IMU was exposed to a wide range of random vibrations to simulate the vibrations during aircraft flight and extreme temperature and humidity conditions to mimic high - altitude and tropical flight environments. The testing showed that the IMU's accuracy was affected by rapid temperature changes. By adding a more advanced temperature compensation algorithm and improving the thermal insulation of the device, the company was able to improve the IMU's accuracy and reliability.
• Environmental Sensor Testing
  • A company manufacturing environmental sensors used the system to test a new air quality sensor. The sensor was subjected to random vibrations to simulate transportation vibrations and different humidity and temperature conditions to mimic various outdoor environments. The testing identified that the sensor's response time was too long under high - humidity conditions. By optimizing the sensor's internal structure and the signal processing algorithm, the company was able to reduce the response time and improve the sensor's performance.

7. Service and Support

• Pre - Sales Technical Consultation
  • Our team of sensor and instrument testing experts provides in - depth technical consultations to help customers understand the capabilities and suitability of the system for their specific testing needs. We offer demonstrations and training sessions to familiarize customers with the operation and functionality of the system before purchase. We also assist in selecting the appropriate test parameters and accessories based on the sensors and instruments to be tested.
• After - Sales Service and Maintenance
  • We offer comprehensive after - sales service, including on - site installation and commissioning. Our team of experienced technicians is available for regular maintenance, calibration, and emergency repairs. We provide genuine spare parts and timely upgrades to ensure the long - term performance and reliability of the testing system. We also offer service contracts that include preventive maintenance and priority technical support.
• Training and Technical Support
  • We conduct training programs for new users to ensure they can effectively operate the testing system and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization. We also provide software updates and support for the data acquisition and analysis systems to keep the system up - to - date with the latest features and technologies.
