ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
ODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing
Specifications
Brand Name :
PRECISION
Model Number :
AE-270
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
$6000
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Customized support :
OEM ODM
Origin :
China
Material :
Stainless Steel
Refrigerant :
Environmental friendly R23/R404
Machine type :
Plating Machine
Pre-Treatment System :
Washing Equipment, Degreasing Equipment, etc.
Description

Electroplating Machinery: A Comprehensive Solution for Surface Finishing

1. Introduction

In the manufacturing industry, electroplating is a crucial process for enhancing the properties of metal objects. It not only improves the aesthetic appeal but also provides protection against corrosion, wear, and other environmental factors. The electroplating setup, consisting of a copper plating PP tank, electroplating line, anodizing components, and electroplated barrels for nickel, zinc, and chrome plating, offers a comprehensive solution for a wide range of applications. This system is designed to meet the diverse needs of industries such as automotive, electronics, and jewelry.

2. Copper Plating PP Tank

2.1 Construction and Material

The copper plating PP (polypropylene) tank is the heart of the copper - plating process. PP is chosen for its excellent chemical resistance, which is essential as the tank holds the copper - plating solution. This solution contains chemicals that can be corrosive to many materials, but PP can withstand these harsh conditions over an extended period. The tank is carefully constructed to ensure a leak - proof and durable structure. It has a smooth interior finish to prevent any accumulation of plating residues, which could affect the quality of the plating process.

2.2 Function in the Plating Process

The copper - plating PP tank serves as the container where the actual copper - plating reaction takes place. Metal objects are immersed in the copper - plating solution, and an electric current is passed through the system. The positive ions in the solution are attracted to the negatively charged metal objects, causing a layer of copper to deposit on their surfaces. The tank's design allows for proper circulation of the plating solution, ensuring an even distribution of copper ions. This results in a uniform copper coating on the objects, which is crucial for maintaining consistent quality in the final product.

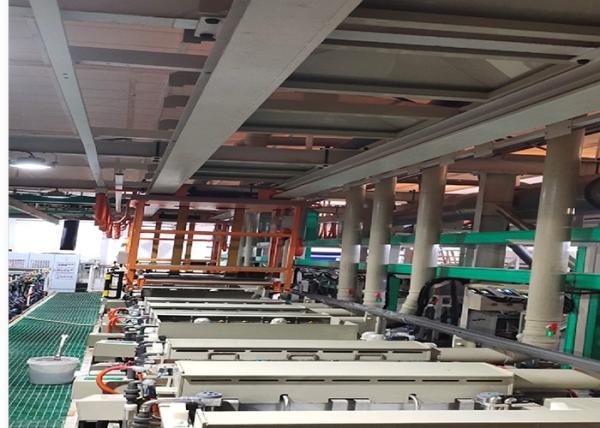

3. Electroplating Line

3.1 Workflow and Automation

The electroplating line is a series of interconnected stations that streamline the electroplating process. It typically includes pre - treatment stations for cleaning and preparing the metal surfaces, the actual plating stations, and post - treatment stations for rinsing and drying the plated objects. The line can be automated to a high degree, with programmable logic controllers (PLCs) regulating the movement of objects between stations, the duration of each process, and the application of electrical currents. This automation not only increases the efficiency of the plating process but also reduces human error, leading to more consistent and high - quality results.

3.2 Quality Control and Monitoring

Throughout the electroplating line, there are multiple quality control points. Sensors are installed at various stations to monitor parameters such as temperature, pH levels, and chemical concentrations in the plating solutions. This real - time monitoring ensures that the plating process is carried out under optimal conditions. If any parameter deviates from the set values, the system can automatically adjust or alert the operator, preventing the production of defective plated parts.

4. Anodizing

4.1 Anodizing Process

Anodizing is a specialized form of electroplating, particularly for metals like aluminum. In this process, the metal object is made the anode in an electrolytic cell. When an electric current is applied, oxygen is generated at the anode, which reacts with the metal surface to form a protective oxide layer. This oxide layer can be further enhanced with coloring agents to achieve different aesthetic effects. Anodizing not only improves the corrosion resistance of the metal but also increases its hardness, making it suitable for applications where durability is crucial.

4.2 Applications of Anodized Products

Anodized products find extensive use in various industries. In the automotive industry, anodized aluminum parts are used for their lightweight yet durable properties. For example, anodized aluminum wheels are not only corrosion - resistant but also add an aesthetic touch to the vehicle. In the electronics industry, anodized aluminum enclosures provide protection for sensitive components while also offering a sleek appearance.

5. Electroplated Barrels for Nickel, Zinc, and Chrome Plating

5.1 Nickel - Plating Barrels

Nickel - plating barrels are designed to hold small - to - medium - sized metal parts during the nickel - plating process. The barrels are made of materials that are resistant to the nickel - plating solution and can rotate, ensuring that all parts are evenly exposed to the solution. Nickel plating provides excellent corrosion resistance and a smooth, shiny finish. It is commonly used in the manufacturing of hardware, such as nuts, bolts, and hinges, as well as in the electronics industry for components that require good electrical conductivity and corrosion protection.

5.2 Zinc - Plating Barrels

Zinc - plating barrels are specifically designed for the zinc - plating process. Zinc plating is widely used for its sacrificial protection properties. When a zinc - plated metal is exposed to a corrosive environment, the zinc corrodes first, protecting the underlying metal. The barrels ensure that the zinc - plating solution reaches all parts of the objects inside, providing a uniform zinc coating. Zinc - plated parts are commonly used in the construction and automotive industries, where protection against rust is essential.

5.3 Chrome - Plating Barrels

Chrome - plating barrels are engineered to handle the unique requirements of chrome plating. Chrome plating is known for its bright, reflective finish and high hardness. The barrels are designed to rotate the parts in the chrome - plating solution, ensuring an even and smooth chrome layer deposition. Chrome - plated parts are popular in the automotive, jewelry, and decorative industries, where their aesthetic appeal and durability are highly valued.

6. Specifications

Machine type Electroplating machine
Warranty 1 Year
Weight(kg) 19500
Test Report Provided
Core components PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
dimension(l*w*h) Customized
key selling points Easy to Operate
Electroplating machine application metal,plastic,iron,plating,and etc
Electroplating machine barrel load 0-200KG/barrel
Electroplating machine barrel material PP, stainless steel
Electroplating machine barrel bore D1-10mm
Electroplating barrel speed 8-20rpm
Electroplating machine tank material PP or stainless steel
Electroplating plating available Zinc,Copper,Nickel,Tin,brass plating, and etc

7. Benefits for Manufacturers

7.1 Enhanced Product Quality

The use of this comprehensive electroplating system allows manufacturers to achieve high - quality surface finishes. The uniform coating provided by the copper - plating tank, electroplating line, and electroplated barrels ensures that the plated parts have consistent properties. Anodizing further enhances the quality of certain metals, making them more durable and aesthetically pleasing. High - quality plated products are more likely to meet or exceed customer expectations, leading to increased customer satisfaction and brand reputation.

7.2 Cost - Efficiency

Automation in the electroplating line reduces labor costs and improves productivity. The efficient use of plating solutions in the tanks and barrels, along with the ability to control parameters precisely, minimizes waste. Additionally, the long - lasting quality of the plated products reduces the need for frequent replacements, saving costs in the long run.

7.3 Diverse Application Capabilities

The variety of plating options available, including copper, nickel, zinc, and chrome plating, as well as anodizing, allows manufacturers to serve a wide range of industries. This versatility enables them to diversify their product offerings and target different market segments, increasing their business opportunities.
ODM Zinc Plating Equipment Comprehensive Solution For Surface FinishingODM Zinc Plating Equipment Comprehensive Solution For Surface Finishing

8. Conclusion

The electroplating machine, with its copper - plating PP tank, electroplating line, anodizing components, and electroplated barrels for nickel, zinc, and chrome plating, is a powerful tool for manufacturers. It offers a complete solution for surface finishing, combining high - quality results, cost - efficiency, and versatility. Whether in the automotive, electronics, or other industries, this electroplating setup can help businesses produce top - notch plated products that meet the demands of the modern market. By investing in such a system, manufacturers can stay competitive and continue to innovate in their respective fields. If you're interested in learning more about how this electroplating solution can transform your manufacturing processes, feel free to contact us for more details
