1. Product Name and Purpose

2. Product Features

• Robust and Insulated Chamber Construction

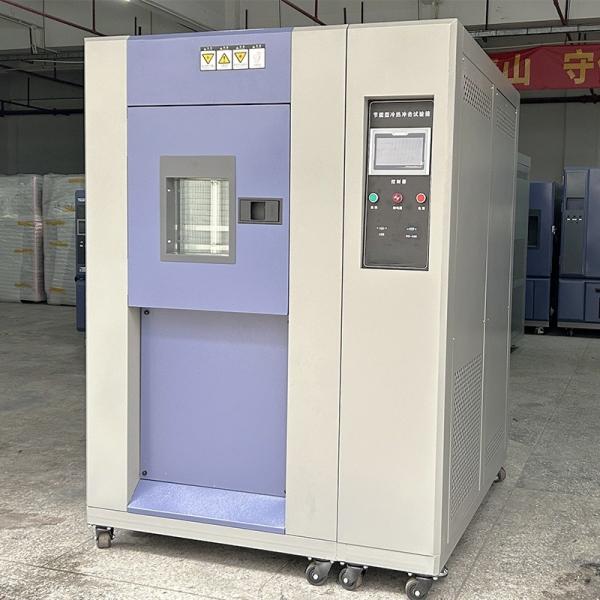

  • The chamber is constructed with heavy-duty, heat-resistant materials that can endure the intense thermal stresses. The walls are made of high-strength steel with advanced insulation layers to minimize heat transfer between the different temperature zones. The door is equipped with a reliable sealing mechanism and a viewing window, allowing operators to monitor the testing process without compromising the integrity of the chamber. The interior is designed with a unique configuration to create distinct hot and cold zones, ensuring rapid and uniform temperature transitions.
• Precision Temperature Control System
  • Temperature Range and Transition: Capable of achieving a wide temperature range, typically from -60°C to +180°C. The system can rapidly switch between the hot and cold zones, with a transition time as short as a few minutes. This is essential for replicating the sudden temperature changes that machinery components may experience, such as when a machine is started in a cold environment and quickly reaches operating temperature or when it is exposed to external heat sources during operation. The temperature control is accurate to within ±0.5°C, ensuring reliable and repeatable test results.
• Intuitive Control Panel and Data Acquisition Interface
  • The control panel is user-friendly and enables operators to easily set and adjust test parameters such as temperature levels, dwell times in each zone, and the number of thermal shock cycles. It provides real-time displays of the current temperature in both zones, the status of the testing process, and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes temperature histories, cycle times, and any observable changes in the physical or mechanical properties of the components. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats.
• Safety Features and Alarms
  • Over-temperature and over-current protection are crucial safety features, ensuring that the chamber and the test samples are not damaged in case of a temperature control malfunction. Emergency stop buttons are strategically placed for immediate shutdown if required. Alarms are triggered for abnormal temperature fluctuations, equipment failures, or any other safety-related issues. The chamber is also equipped with proper ventilation and exhaust systems to handle any potentially harmful gases or vapors that may be generated during the testing process.

3. Specific Parameters

• Temperature Range and Accuracy
  • The -60°C to +180°C temperature range with ±0.5°C accuracy provides a comprehensive testing spectrum. Different machinery components may have different temperature tolerances and material properties. For example, metal alloys used in high-temperature applications need to maintain their strength and integrity at elevated temperatures, while polymers used in certain components may become brittle at low temperatures. The accurate temperature control ensures that the test conditions are precisely maintained, allowing for a detailed assessment of component performance.
• Thermal Shock Cycle Parameters
  • The chamber can be programmed to perform a specific number of thermal shock cycles, typically ranging from 10 to 1000 or more, depending on the requirements of the 2006/42/EC standard and the nature of the components. The dwell time in each temperature zone can also be adjusted, from a few minutes to several hours. This flexibility allows manufacturers to simulate a wide variety of real-world scenarios and evaluate the long-term durability of components under different thermal shock conditions.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, usually ranging from 2 m³ to 10 m³, to accommodate a significant number of machinery components. The payload capacity is designed to handle heavy and bulky parts, with a maximum capacity of up to several tons. This enables efficient testing of both individual components and small assemblies.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 500 Hz. The temperature data has a resolution of 0.1°C. This high-resolution and frequent sampling enable the detection of even the slightest temperature changes and trends, providing valuable insights into the behavior of the machinery components during thermal shock testing.

4. Product Functions

• Accurate Simulation of 2006/42/EC Test Conditions
  • The chamber replicates the exact thermal shock conditions specified in the 2006/42/EC standard. This is crucial as machinery components must meet these requirements to ensure their compliance and safety. By subjecting the components to these precise simulations, manufacturers can be confident that their products will perform as expected in real-world applications.
• Product Design Optimization and Quality Control
  • Through a series of tests on different component prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the performance of various materials, geometries, and manufacturing techniques under thermal shock stress. The chamber also serves as a vital tool for quality control, ensuring that each production batch of components meets the required standards. For example, if a particular gear shows signs of cracking or wear after a certain number of thermal shock cycles, the design or material can be adjusted to improve its durability.
• Research and Development Support
  • In the field of machinery component research and development, the Custom Thermal Shock Chambers offer valuable insights. Researchers can use them to study the fundamental properties of new materials and their interactions with thermal shock. They can explore innovative designs and technologies that result in more resilient machinery components. For instance, materials scientists can test the performance of novel composite materials or advanced heat treatment processes under 2006/42/EC test conditions, using the chamber to evaluate their potential for future machinery applications.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet the 2006/42/EC standard. The machinery industry has strict regulations regarding component performance, and the test results obtained from the chamber can be used to certify that the components meet these standards. This is crucial for market acceptance and for ensuring the overall safety and reliability of machinery.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Custom Thermal Shock Chambers for 2006/42/EC are manufactured under strict quality control procedures. Each component, from the chamber structure and insulation materials to the temperature control unit and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent machinery testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the 2006/42/EC standard and other international and national machinery testing standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the machinery industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Gearbox Component Testing
  • A machinery manufacturer used the chamber to test the gears and bearings in a new gearbox design. The components were subjected to a series of thermal shock cycles, simulating the temperature changes that occur during startup and shutdown of the gearbox. The testing revealed that a particular type of bearing had a tendency to seize under rapid temperature changes. By switching to a different bearing material and improving the lubrication system, the manufacturer was able to enhance the gearbox's reliability and lifespan.
• Industrial Motor Component Evaluation
  • An industrial motor manufacturer evaluated the performance of motor housings and windings in the chamber. The components were exposed to extreme temperature changes, replicating the conditions that motors may face in different operating environments. The results showed that the insulation material of the windings had a weakness in withstanding thermal shock. By using a more heat-resistant insulation material and optimizing the winding design, the manufacturer was able to improve the motor's performance and safety.
• Hydraulic System Component Testing
  • A company in the hydraulic equipment industry tested the valves and cylinders in the chamber. The components were subjected to thermal shock cycles to assess their durability and sealing performance. The testing identified a design flaw in a valve that caused leakage after repeated thermal shock. By redesigning the valve structure and using better sealing materials, the company was able to increase the reliability of the hydraulic system.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of machinery testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the machinery industry, to familiarize their engineers and technicians with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the machinery components to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for 2006/42/EC thermal shock testing of machinery components.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Custom Thermal Shock Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with 2006/42/EC and other machinery testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
