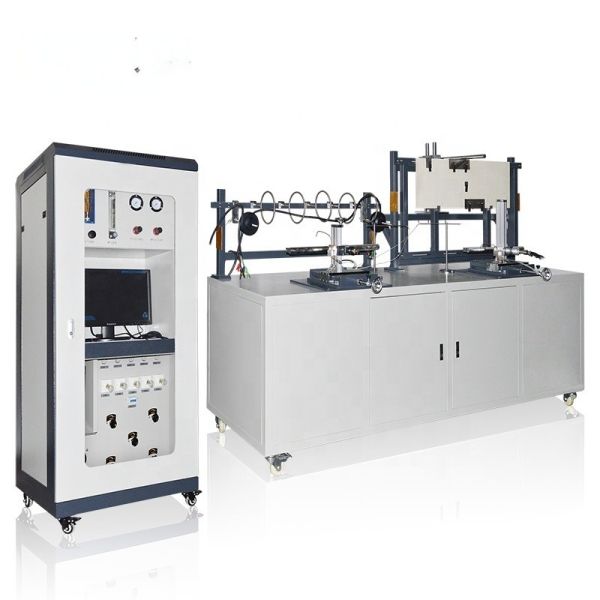

1. Product Name and Purpose

2. Product Features

• Sturdy and Heat-Resistant Structural Design
  • The equipment is engineered with a robust framework constructed from high-grade heat-resistant alloys and steels, ensuring its ability to endure the extreme thermal and mechanical stresses encountered during flame resistance testing. The interior chambers and test compartments are lined with advanced refractory materials, capable of withstanding temperatures in excess of 1500°C, thereby maintaining a stable and controlled testing environment. The access doors and panels are fabricated with double-layered, insulated structures and equipped with high-performance sealing mechanisms to prevent heat leakage and the ingress or egress of smoke and gases, safeguarding the integrity of the test and ensuring the safety of operators. A specialized viewing window, crafted from heat-strengthened glass or transparent ceramic materials, allows for real-time visual monitoring of the test proceedings without compromising the integrity of the test enclosure.
• Precision Temperature and Flame Control Systems
  • Temperature Regulation: The equipment is furnished with a cutting-edge temperature control system that enables precise and accurate regulation of the temperature within the testing area. It can achieve a wide temperature spectrum, ranging from ambient temperature to 1200°C, with an exceptional degree of accuracy, typically within ±2°C. This is accomplished through the utilization of a combination of advanced heating elements, such as silicon carbide or molybdenum disilicide heaters, and a sophisticated PID (Proportional-Integral-Derivative) control algorithm. Multiple strategically positioned thermocouples ensure uniform temperature distribution and rapid response to any temperature deviations, while the intuitive control interface permits the programming of complex temperature profiles, including linear ramps, step changes, and cyclic temperature patterns, to faithfully mimic a diverse array of real-world fire scenarios and environmental conditions.
  • Flame Manipulation and Control: The flame generation and control mechanisms are highly versatile and customizable. They are capable of producing flames with a broad range of intensities, from a gentle, low-intensity pilot flame to a powerful, high-temperature turbulent flame. The fuel supply system, which can accommodate a variety of combustible gases such as propane, methane, or butane, is equipped with high-precision flow regulators that enable precise metering of the fuel. The air-fuel ratio can be adjusted within an extensive range, typically from 1:1 to 20:1, allowing for the creation of flames with different oxidizing or reducing characteristics. This flexibility is essential for conducting comprehensive tests to assess the response of materials to various types of flame exposures, including the slow-burning, smoldering flames characteristic of certain fire scenarios and the intense, rapid flames associated with flashover events.
• Advanced Instrumentation and Data Acquisition Capabilities
  • The Customized Flame Resistance Testing Equipment is outfitted with a comprehensive suite of sensors and measurement devices. In addition to highly accurate temperature and flame sensors, it incorporates optical sensors for precise monitoring of flame characteristics such as height, luminosity, color temperature, and shape. Smoke density sensors, based on advanced light scattering or absorption principles, are capable of accurately measuring the concentration and density of smoke generated during the test. Gas sensors, designed to detect and analyze the composition of gases emitted during combustion, including toxic gases such as carbon monoxide, carbon dioxide, and volatile organic compounds, provide crucial information about the chemical byproducts of the fire. These sensors are interfaced with a high-speed, multi-channel data acquisition system that records and stores all relevant data. The data acquisition system offers an impressive sampling rate, often exceeding 10,000 samples per second, ensuring that even the most transient and minute changes in parameters are faithfully captured. The collected data can be analyzed in real-time or retrieved later for in-depth studies using specialized software, which generates detailed reports and graphical representations of the test results, facilitating comprehensive data interpretation and analysis.
• Versatile Testing Modes and Configurations
  • The equipment offers a wide variety of testing modes and configurations to accommodate the diverse needs of different sample types and testing requirements. It can perform horizontal and vertical flame spread tests, where the behavior of a material's surface as the flame propagates across it is meticulously observed and quantified. Cone calorimeter tests can be carried out to measure the heat release rate and other combustion parameters of a sample under a controlled radiant heat flux. Additionally, it can be configured for fire resistance tests of larger structures and assemblies, such as evaluating the integrity and fireproofing capabilities of building components, enclosures, or industrial equipment. The equipment can also be integrated with other environmental control systems, such as humidity and pressure control, to study the combined effects of multiple factors on flame resistance. This versatility makes it suitable for testing a vast range of materials, from traditional building materials like concrete, steel, wood, and insulation to advanced industrial materials such as polymers, composites, and high-tech textiles.
• Compliance with Stringent Industry Standards
  • The Customized Flame Resistance Testing Equipment is meticulously designed to comply with a comprehensive set of international and national fire safety standards. It adheres to ASTM (American Society for Testing and Materials) standards, such as ASTM E84 for surface burning characteristics, ASTM E1354 for heat and visible smoke release rates, and ASTM E662 for smoke density. It also meets ISO (International Organization for Standardization) standards, including ISO 5660 for reaction-to-fire tests and ISO 1716 for calorific value determination. This strict compliance ensures that the test results obtained using this equipment are widely recognized and accepted by regulatory authorities and industry peers, facilitating seamless product certification and market access.

3. Specific Parameters

• Chamber Size and Capacity Variations
  • The equipment is available in a range of chamber sizes to suit different sample sizes and testing volumes. Smaller chambers may have interior dimensions of 0.3 meters x 0.3 meters x 0.3 meters, which are ideal for testing small specimens or individual components. Medium-sized chambers can measure 0.6 meters x 0.6 meters x 0.6 meters, providing sufficient space for testing larger samples or a batch of products. Larger chambers, with dimensions exceeding 1 meter x 1 meter x 1 meter, are suitable for full-scale testing of building materials or large industrial assemblies. The interior volume and shape of the chambers are carefully optimized to ensure proper air circulation and uniform exposure of the sample to the fire and environmental conditions, thereby enhancing the accuracy and reproducibility of the test results.
• Temperature Range and Accuracy Specifications
  • As mentioned earlier, the temperature can be controlled from ambient to 1200°C, with an accuracy of ±2°C. The temperature ramp rate can be adjusted from 0.5°C per minute to 100°C per minute, allowing for the simulation of both slow and rapid temperature changes. For example, a slow ramp rate may be used to study the thermal degradation of a material over an extended period, while a rapid ramp rate can mimic the sudden increase in temperature during a fire outbreak or a flashover event.
• Flame Intensity and Control Parameter Details
  • The flame intensity can be adjusted over a wide spectrum, with a maximum heat output equivalent to several megawatts per square meter. The fuel flow rate can be varied from a few milliliters per minute to several liters per minute, and the air-fuel ratio can be precisely controlled within a range of 1:1.5 to 20:1. These parameters enable the creation of flames with different characteristics, from a small, stable flame for precision testing to a large, turbulent flame for more severe fire simulations. The equipment also allows for the control of flame duration and the number of ignition sources, providing further flexibility in testing different fire scenarios.
• Data Acquisition Rate and Resolution Metrics
  • The data acquisition system samples sensor data at a rate of 10,000 samples per second. The temperature sensor has a resolution of 0.1°C, the smoke density sensor can detect changes as small as 0.005% opacity, and the gas sensors have a sensitivity in the parts per million (ppm) range for most common gases. This high-resolution and high-speed data capture ensure that the equipment provides detailed and accurate information about the flame resistance characteristics of the tested samples, enabling in-depth analysis and interpretation of the test results.
• Compliance with Key Flame Resistance Testing Standards Highlights
  • The equipment complies with ASTM E84, ASTM E1354, ASTM E662, ISO 5660, and ISO 1716, among other relevant standards. It can also be customized to meet specific requirements of other industry standards or regulatory codes, ensuring its adaptability to different industries and applications. For example, in the aerospace industry, it can be configured to meet specific standards for testing the flame resistance of aircraft cabin materials and components, while in the automotive industry, it can be tailored to test the fire safety of vehicle interiors and electrical systems.

4. Product Functions

• Accurate Simulation of Flame Resistance Scenarios
  • The primary function of the equipment is to provide a highly accurate and realistic simulation of flame resistance conditions. By precisely controlling temperature, flame characteristics, and other environmental factors, it allows for the comprehensive evaluation of how materials and products will perform in an actual fire. For example, it can determine if a building material will contribute to the spread of fire, if a product will release toxic gases that could endanger occupants, or if a component will maintain its structural integrity under fire exposure. This information is invaluable for architects, engineers, and product designers to make informed decisions and develop safer and more fire-resistant designs.
• Enhanced Product Development and Quality Assurance
  • Through detailed flame resistance testing, manufacturers can identify and address potential fire safety issues in their products. If a material shows a high flame spread rate or excessive smoke and toxic gas production, appropriate modifications can be made, such as adding fire retardants, changing the material composition, or improving the product's design. This leads to the development of higher-quality and more reliable products that meet or exceed fire safety standards. The equipment also serves as a crucial part of quality control, ensuring that each batch of products is tested and compliant, thereby reducing the risk of product recalls and enhancing brand reputation.
• Facilitation of Regulatory Compliance and Certification
  • Regulatory bodies rely on accurate and standardized flame resistance test results to enforce fire safety regulations. The Customized Flame Resistance Testing Equipment enables manufacturers to conduct tests in accordance with recognized industry standards, providing the necessary data for regulatory compliance and product certification. This helps in streamlining the approval process, ensuring that products can be legally marketed and used in various applications, from residential and commercial buildings to industrial facilities and transportation vehicles.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The flame resistance testing equipment is manufactured under strict quality control procedures. Each component, from the heating elements and sensors to the control panel and chamber lining, is carefully sourced and inspected for quality and performance. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The equipment undergoes a series of calibration and validation tests during the manufacturing process to ensure that it meets the required accuracy and performance standards.
  • The calibration of temperature, flame, and other sensors is a critical part of the manufacturing process. It is performed using traceable reference standards that are calibrated to the highest levels of accuracy, guaranteeing the reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality and compliance with flame resistance testing standards.
• Quality Certification and Validation
  Our equipment has obtained relevant quality certifications and has been validated by independent fire testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the relevant industry standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the fire safety industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Construction Industry
  • A leading construction materials manufacturer used the Customized Flame Resistance Testing Equipment to test a new type of wall panel. The tests revealed that the panel had excellent flame resistance, with a low flame spread rate and minimal smoke production. This enabled the company to market the panel as a high-performance, fire-safe building material, meeting the demands of architects and building owners for safer construction options.
  • A construction firm tested different types of flooring materials in the equipment. The results showed that one particular flooring material had a higher heat release rate than expected, which could pose a fire hazard. By using a different core material and retesting, they were able to ensure the flame resistance of their building projects and comply with building codes.
• Manufacturing Sector
  • An electronics manufacturer tested the flame resistance of their circuit boards. The testing identified that certain components on the circuit boards released toxic gases when exposed to fire. By redesigning the circuit boards and using fire-retardant components and coatings, they were able to produce circuit boards that met flame resistance standards and reduced the potential risk to consumers in case of a fire.
  • A furniture manufacturer used the equipment to evaluate the flame resistance of their upholstery fabrics. The tests showed that some fabrics had a rapid flame spread, which could be dangerous in a domestic or commercial setting. By using fire-retardant-treated fabrics and testing them again, they were able to improve the flame resistance of their furniture products and gain a competitive edge in the market.
• Aerospace and Automotive Industries
  • An aerospace company tested the flame resistance of a new composite material for use in aircraft interiors. The Customized Flame Resistance Testing Equipment allowed them to simulate the extreme conditions of a cabin fire, including high temperatures, rapid temperature changes, and the presence of oxygen. The results helped them optimize the material's composition and design, ensuring the safety of passengers and crew in the event of a fire.
  • An automotive manufacturer tested the flame behavior of different wiring harnesses. The testing identified potential weak points in the harness design, such as areas where the insulation could melt and cause a short circuit. By redesigning the harness and using fire-resistant materials, they were able to improve the flame resistance of their vehicles and reduce the risk of electrical fires.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of fire safety experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the Customized Flame Resistance Testing Equipment for their specific testing needs. We offer demonstrations and training, tailored to the fire safety industry, to familiarize customers with the operation and functionality of the equipment before purchase. We also assist in selecting the appropriate test methods and accessories based on the materials or products to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the test equipment operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the equipment for flame resistance testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Customized Flame Resistance Testing Equipment and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with flame resistance testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in flame resistance testing.
