1. Introduction
In the modern context of industrial and technological development, ensuring the safety and reliability of products across diverse transportation and usage environments is of paramount importance. For batteries and related products, the UN 38.3 test standard has emerged as a globally recognized and authoritative norm. Its primary objective is to safeguard the safety of battery - containing devices in scenarios such as air transportation. The 10kN vibration table, as a specialized testing apparatus, harnesses its robust sinusoidal vibration testing capabilities to precisely meet the stringent requirements of the UN 38.3 test standard. It offers efficient and reliable testing solutions to battery manufacturers, electronic product producers, and various relevant testing institutions, playing an indispensable role in upholding product quality and transportation safety.
2. Key Technical Features
2.1 Robust Vibration Output Capability
- 10kN Peak Force: This vibration table is capable of generating a peak force of up to 10kN. This substantial force is sufficient to drive test samples of various sizes and weights during sinusoidal vibration testing. Whether it is a small button battery or a large - scale power battery pack, the 10kN force ensures that test samples receive stable and standard - compliant vibration excitation within the specified frequency range. This remarkable force performance enables the vibration table to simulate the vibration intensities likely to be encountered in various actual transportation and usage environments, laying a solid foundation for accurately assessing the structural integrity and reliability of products.
- Broad Frequency Range Coverage: The frequency range of the vibration table can span from as low as a few Hertz (Hz) to as high as several thousand Hertz, typically covering the frequency interval of 1Hz - 3000Hz. This wide - ranging frequency coverage allows for the simulation of vibration frequency characteristics associated with different transportation modes (such as road, rail, and air) and diverse usage scenarios. For instance, during air transportation, the vibration frequencies of aircraft engines and the vibrations of the fuselage caused by airflows can both impact batteries and related products. The 10kN vibration table can precisely adjust the frequency to simulate these complex vibration environments, comprehensively detecting the performance of products at different frequencies.
2.2 Precise Sinusoidal Vibration Control
- High - Precision Waveform Generation: When conducting sinusoidal vibration testing, the vibration table can generate an extremely accurate sinusoidal waveform. Through advanced digital control technology and a precise sensor feedback system, the distortion of the sine wave is kept to a minimum, generally controllable within 1%. This means that the vibration excitation received by the test sample closely aligns with the ideal sinusoidal vibration pattern, thus guaranteeing the accuracy and repeatability of test results. For battery products, precise sinusoidal vibration testing can accurately detect the performance changes of components such as internal electrodes and electrolytes in a stable vibration environment, facilitating the discovery of potential structural defects and safety hazards.
- Flexible Parameter Adjustment: Users can flexibly adjust various parameters of the vibration table, including vibration amplitude, frequency, and acceleration, in accordance with the UN 38.3 test standard and the specific characteristics of products. The vibration amplitude can be finely adjusted within a wide range to meet the requirements of different test scenarios for vibration intensity. For example, when simulating the bumpy vibrations during road transportation, an appropriate vibration amplitude can be set according to the actual road conditions; when conducting air transportation simulation tests, the amplitude can be adjusted based on the vibration data during aircraft flight. The adjustment of frequency and acceleration is equally precise, enabling continuous and smooth changes, which provides convenience for comprehensively testing the response of products under different vibration conditions.
2.3 Specifications
| Rated Sine/ Random/ Shock Force | 1,100 kgf/1.100 kgf/2200 kgf | Armature Mass | 13 kg |
| Frequency Range | 5-3000 Hz | Inserts Size (Standard) | M10 |
| Max./Continuous Displacement p-p | 51 mm/51 mm | Load Attachment Points (Standard) | 25 |
| Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
| Max.Sine/ Random Acceleration | 85/60g | Max. Vertical Load Support | 300 kg |
| Armature Diameter | 335 mm | Stray field @152 mm above table | ≤lmT (10 gauss) |
| Fundamental Resonance Frequency | 3,000 Hz (nom) ±5% | Dimension LxWxH | 940 mmx715 mm* 780 mm |
| Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
2.4 Reliable Structure and Safety Design

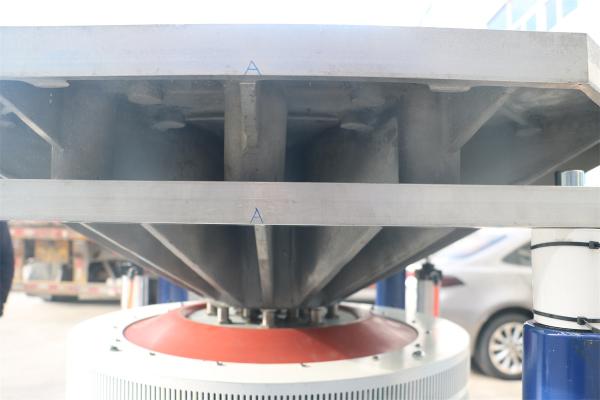

- Durable and Sturdy Structure: The vibration table is constructed using high - strength materials and an optimized mechanical structure design, ensuring excellent stability and durability. Its tabletop is usually made of high - quality aluminum alloy or stainless steel, featuring good flatness and rigidity. This ensures that test samples are uniformly stressed during the vibration process, avoiding any impact on test results due to tabletop deformation. The main frame structure has been carefully designed and strengthened, capable of withstanding long - term and high - intensity vibration work. Even under frequent use, it can maintain stable performance, reducing equipment failures and maintenance requirements, and providing users with reliable long - term use assurance.
- Multiple Safety Protection Mechanisms: To ensure the safety and reliability of the testing process, the 10kN vibration table is equipped with a comprehensive set of multiple safety protection devices. These include over - current protection, over - voltage protection, overload protection, and an emergency stop button. The over - current and over - voltage protection systems can continuously monitor the working current and voltage of the vibration table. In the event of any abnormal conditions, the power supply is immediately cut off to prevent equipment damage caused by electrical failures. The overload protection can effectively prevent the equipment from overloading due to excessive weight of test samples or improper setting of vibration parameters, protecting the key components of the vibration table from damage. The emergency stop button is prominently located on the operation panel. In case of sudden emergencies, the operator can quickly press the button to immediately stop the operation of the vibration table, ensuring the safety of personnel and equipment.
3. Compliance with UN 38.3 Test Standard
3.1 Test Item Coverage
- Meeting Sinusoidal Vibration Test Requirements: The UN 38.3 test standard has clear regulations regarding the sinusoidal vibration testing of batteries and related products, including parameters such as the test frequency range, vibration amplitude, and test duration. The 10kN vibration table can fully cover these test requirements. Through precise frequency adjustment and amplitude control, it conducts tests in accordance with the procedures specified in the standard. For example, within the frequency range specified by the standard, a battery sample is subjected to sinusoidal vibration testing for a certain period at a specific vibration amplitude, simulating the vibration environment that the battery may encounter during transportation, and detecting whether the electrical performance, structural integrity, and safety of the battery are affected.
- Simulating Comprehensive Test Scenarios: In addition to meeting the basic parameter requirements of sinusoidal vibration testing, the 10kN vibration table can also integrate other environmental factors for comprehensive test scenario simulation. This is highly consistent with the concept of the UN 38.3 test standard, which emphasizes a comprehensive assessment of product safety in complex transportation environments. For example, while conducting sinusoidal vibration testing, it can be combined with environmental simulation equipment for temperature and humidity to simulate the vibration environment that batteries face during transportation under different climatic conditions, more realistically reflecting the actual usage situation of products and providing more abundant data for a comprehensive evaluation of product reliability.
3.2 Data Accuracy and Traceability
- Accurate Data Acquisition and Analysis: During the implementation of the UN 38.3 test, the high - precision sensors equipped on the vibration table can real - time collect various data of the test sample during the vibration process, such as acceleration, displacement, and velocity. These data are accurately measured and recorded by an advanced data acquisition system and transmitted to professional data analysis software. The software has powerful data processing capabilities and can conduct real - time analysis of the collected data, generating detailed data reports and charts, visually demonstrating the performance changes of products during the testing process. Through in - depth analysis of these data, it is possible to accurately determine whether the product meets the requirements of the UN 38.3 test standard, providing a scientific basis for product quality evaluation.
- Ensuring Data Traceability: To meet the requirements of test data traceability, the data acquisition and management system of the 10kN vibration table has a complete recording function. The system can meticulously record information such as the time of each test, the test parameter settings, the original data collected during the test process, and the final test results. These data are stored and managed in strict accordance with standards, facilitating users to query and retrieve at any time. During product quality traceability and certification audits, complete and accurate test data records can be provided, ensuring the reliability and credibility of test results and providing strong support for products to pass the UN 38.3 test certification.
4. Significance for Related Industries
4.1 Ensuring Product Quality and Safety
- Guaranteeing the Reliability of Batteries and Related Products: For battery manufacturers, the sinusoidal vibration testing performed by the 10kN vibration table and its compliance with the UN 38.3 test standard is a crucial link in ensuring the quality and reliability of battery products. By simulating the vibration environment during actual transportation and usage, it is possible to detect in advance problems in the structural design, material selection, and production process of batteries, and promptly make improvements and optimizations. For example, if the test reveals that the internal electrode connections of a battery are loose, resulting in a decline in battery performance during vibration, the manufacturer can specifically improve the welding process or optimize the electrode structure, enhancing the reliability and stability of the battery and reducing the risk of malfunctions and safety accidents during product use.
- Enhancing the Overall Safety of Electronic Products: In the electronic product manufacturing industry, many devices rely on batteries for power supply. The application of the 10kN vibration table helps ensure the safety of these battery - containing electronic products during transportation and use. By conducting sinusoidal vibration tests on electronic products in accordance with the UN 38.3 standard, it is possible to detect compatibility issues between the battery and other components of the electronic product in a vibration environment, as well as the seismic performance of the overall product structure. For example, for portable electronic products such as smartphones, after vibration testing, it is possible to determine whether the battery compartment design is reasonable and whether the battery is prone to loosening or damage during vibration. Based on this, product design can be promptly improved to enhance the overall safety of electronic products and increase consumer trust in the product.
4.2 Reducing Transportation Risks and Costs
- Minimizing Product Damage during Transportation: In the transportation of batteries and related products, factors such as vibration can cause product damage, resulting in economic losses for enterprises. The 10kN vibration table helps enterprises identify the weak points of products in advance by simulating the vibration environment during transportation and take effective protective measures to reduce the damage rate of products during transportation. For example, for large - scale power battery packs, vibration testing prior to transportation may reveal that the packaging design cannot effectively protect the battery at specific vibration frequencies. Enterprises can then improve the packaging materials and structure to ensure that the battery can withstand vibration shocks during transportation, reducing the costs of returns, exchanges, and repairs caused by product damage and improving the efficiency and reliability of logistics transportation.
- Avoiding Transportation Safety Accidents: Vibration testing that complies with the UN 38.3 test standard can effectively screen out battery and related products with potential safety hazards, preventing these products from triggering safety accidents during transportation due to vibration. For example, in air transportation, the safety of battery products is of utmost importance. Once a battery fire or other safety accident occurs, it will pose a serious threat to flight safety. The 10kN vibration table ensures the safety of battery products during transportation through strict sinusoidal vibration testing, reducing safety risks during transportation, safeguarding the lives and property of personnel, and maintaining the stable development of the entire transportation industry.
4.3 Promoting International Trade and Industry Development
- Facilitating Product International Certification: In the context of a globalized market, for products to enter the international market, they must meet various international standards and certification requirements. The UN 38.3 test standard, as an important norm for global battery transportation safety, is regarded as a necessary condition for product import by many countries and regions. The 10kN vibration table can assist enterprises in conducting sinusoidal vibration tests in line with the UN 38.3 standard, providing strong support for products to obtain international certifications and promoting the international trade of batteries and related products. For example, Chinese battery manufacturers can use the 10kN vibration table for testing, enabling their products to successfully pass the UN 38.3 certification, thereby being able to export products to European, American, and other countries and regions, expanding international market share and enhancing the international competitiveness of enterprises.
- Driving Industry Technological Progress: With the widespread application of the 10kN vibration table in the industry, the testing requirements for batteries and related products are constantly increasing, prompting enterprises and research institutions to increase investment in product research and development, material innovation, and production process improvement, driving the technological progress of the entire industry. For example, in order to better pass vibration tests, battery manufacturers continuously develop new battery materials to improve the seismic performance and structural stability of batteries; electronic product manufacturers optimize product designs to enhance the overall vibration resistance of products. This technological innovation and progress not only contribute to ensuring product quality and safety but also inject new vitality into the sustainable development of the industry.
5. Application Scenarios
5.1 R & D and Production of Battery Products
- Battery Design Optimization: During the R & D stage of battery products, engineers use the 10kN vibration table to conduct sinusoidal vibration tests on batteries with different design schemes. By analyzing the test results, they evaluate the performance of batteries in a vibration environment, such as changes in battery capacity, increases in internal resistance, and the stability of electrode materials. Based on the test data, they optimize the structural design, electrode material selection, and packaging process of batteries to improve the reliability and service life of batteries. For example, when developing a new lithium - ion battery, vibration testing reveals that the welding points of internal electrodes are prone to loosening during vibration, resulting in a decline in battery performance. Engineers can then improve the welding process or adopt new connection materials to ensure the stable performance of the battery in a vibration environment.
- Quality Control in the Production Process: During the production of batteries, samples of each batch of battery products are selected and subjected to sinusoidal vibration testing using the 10kN vibration table as an important part of quality control. Through testing, it is possible to detect whether there are structural defects or performance instabilities in batteries caused by process problems during production. For example, check whether the sealing of the battery shell is good and whether electrolyte leakage occurs during vibration; test the compatibility between the internal electrodes and electrolytes of the battery to ensure that the electrochemical performance of the battery is not affected in a vibration environment. For unqualified products, the production process is promptly traced to identify the root cause of the problem and make improvements, ensuring that the quality of each batch of battery products meets the standard requirements.
5.2 Electronic Product Manufacturing
- Overall Testing of Battery - Containing Electronic Products: For various battery - containing electronic products, such as laptops, tablets, and drones, after product assembly is completed, the 10kN vibration table is used to conduct overall sinusoidal vibration tests. The vibration environment that products may encounter during transportation and daily use is simulated to detect whether the connections between the internal battery and other components of the product are firm, whether the battery will interfere with the normal operation of the electronic product during vibration, and whether the overall structural seismic performance of the product meets the requirements. For example, when testing a new drone, observe whether the battery power supply is stable during vibration and whether the flight control system of the drone malfunctions. Based on the test results, the product is optimized to improve product quality and reliability.
- Compatibility Testing of Electronic Product Components and Batteries: In the manufacturing process of electronic products, it is necessary to ensure good compatibility between various components and the battery. The 10kN vibration table is used to conduct combined tests on the components of electronic products (such as motherboards, displays, and cameras) and the battery, simulating the interaction between components and the battery in a vibration environment. For example, test whether the display will experience abnormal images or poor contact due to the vibration of the battery during vibration; detect whether the electronic components on the motherboard will be affected by electromagnetic interference when vibrating together with the battery, affecting their normal operation. Through compatibility testing, the layout and connection methods of components are optimized to improve the overall performance and stability of electronic products.
5.3 Transportation Packaging Verification
- Optimization of Transportation Packaging Design for Batteries and Related Products: For the transportation packaging of batteries and related products, the 10kN vibration table is used to conduct sinusoidal vibration tests to evaluate the protective performance of packaging materials and structures for products. The vibration environment that products may encounter under different transportation modes (such as road, rail, and air) is simulated, and the displacement, collision, and other situations of products inside the packaging during vibration are observed, as well as whether the packaging materials can effectively buffer vibration energy and prevent product damage. For example, when testing the transportation packaging of a battery pack, it is found that the cushioning material inside the packaging cannot effectively protect the battery under high - frequency vibration, resulting in slight deformation of the battery shell. Based on the test results, the packaging design is improved, more suitable cushioning materials are replaced, or the packaging structure is adjusted to ensure the safety of products during transportation.
- Quality Inspection of Transportation Packaging: During the production of transportation packaging, samples of each batch of packaging products are selected and subjected to sinusoidal vibration testing using the 10kN vibration table as an important means of quality inspection. Through testing, the integrity of packaging products during vibration is checked, such as whether the packaging materials will crack or tear, whether the packaging seals are firm, and whether the fixing devices inside the packaging can effectively prevent products from shaking during transportation. For unqualified packaging products, timely rectification is carried out to ensure that each transportation packaging can meet the requirements of protecting products and reduce the risk of product damage during transportation.
6. Conclusion
The 10kN vibration table, with its powerful sinusoidal vibration testing capabilities, precise parameter control, reliable structure design, and high - degree compliance with the UN 38.3 test standard, plays an irreplaceable and crucial role in all aspects of the R & D, production, quality control, and transportation packaging verification of batteries and related products. It not only provides effective technical means for ensuring product quality and safety and reducing transportation risks and costs but also promotes the development
