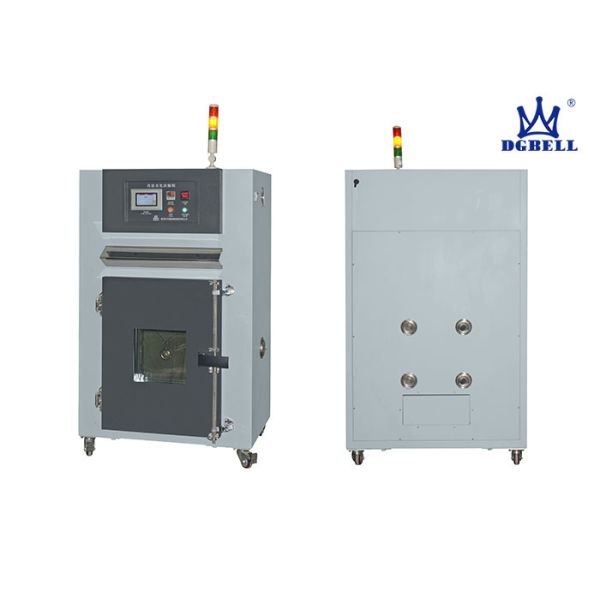

500D Temperature Aging Burn In Test Chamber Electrostatic Coated
500D Temperature Aging Burn In Test Chamber Electrostatic Coated
Specifications
Brand Name :
DGBELL
Model Number :
BTG-072 / BTG-125 / BTG-270 / BTG-600 / BTG-1000
Certification :
ISO-9001:2015
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000+ sets
Packaging Details :
wooden
Temp. Range :
Rt-250℃ (Optional for 500℃)
Temp. Fluctuation :
≤±0.5
Temp. Deviation :
≤±1.5℃
Temp. Uniformity :
≤±1℃
Display :
TFT LCD
Input :
Compatible for wet-dry bulbs PT100(T/C,RTD,DCV)
Accuracy :
0.01% high precision sampling
System Capacity :
10 programs, 100 segments for each program
Description

Burn In Test Chamber for Temperature Aging Test ≤±1℃ Temp. Uniformity

Applications

DGBELL's burn-in chamber is widely applied to electronic and electric products, components and materials by constant high low temperature, temperature shock and rapid temperature change reliability test.

Features

With high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel. Insulation material adopts fire resistant high strength glass fiber thermal insulating material. The Control system and control circuit all introduced with the famous brand.

Model BTG-072 BTG-125 BTG-270 BTG-600 BTG-1000
Test Space 450x400x400 450x400x400 600x900x500 1000x1000x600 1000x1000x1000
W x H x D (mm)
External Dimension 850x1000x850 900x1100x1000 1000x1300x1000 1200x1450x1100 1200x1400x1450
W x H x D (mm)
Temp. Range Rt-250℃ (Optional for 500℃)
Temp. Fluctuation ≤±0.5℃
Temp. Deviation ≤±1.5℃
Temp. Uniformity ≤±1℃

Performance parameters

Temp. Range

Rt-250℃ (Optional for 500℃)

Temp. Fluctuation

≤±0.5

Temp. Deviation

≤±1.5℃

Temp. Uniformity

≤±1℃

Controller(Korea TEMI 300 programmable controller)

Display

TFT LCD

Input

Compatible for wet-dry bulbs PT100(T/C,RTD,DCV)

Accuracy

0.01% high precision sampling

System Capacity

10 programs, 100 segments for each program

Operating Mode

Fixed value/ Programmable running mode

Output Method

PID+SSR/SCR automatic bidirectional synchronous output

Start pre-set

Equipment starting can be pre-set.

Communication Interface

compatible for protocols (RS485, Modbus, etc.)
