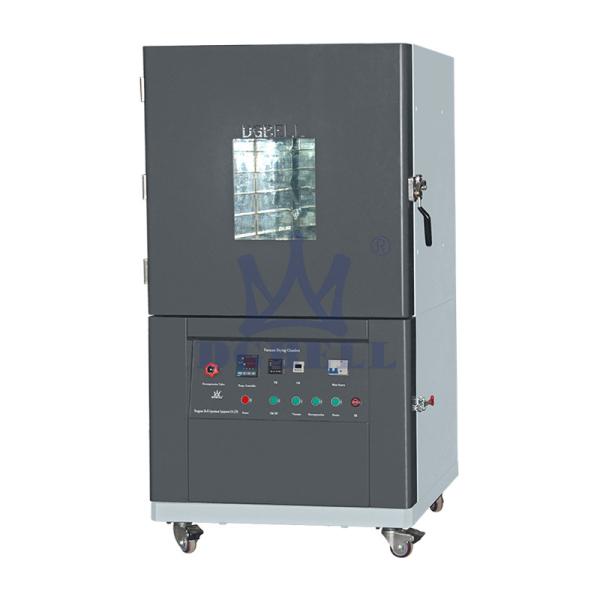

DGBELL Transformer Vacuum Drying Oven using 6.0mm Thick SUS 304 Stainless Steel
DGBELL Transformer Vacuum Drying Oven using 6.0mm Thick SUS 304 Stainless Steel
Specifications
Brand Name :
DGBELL
Model Number :
BE-ZK-27L/BE-ZK-64L/BE-ZK-125L/BE-ZK-216L/BE-ZK-512L
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
500 Sets per Month
Delivery Time :
Negotiation
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.
Keywords :
Vacuum Drying Oven Manufacturers
Temp. Range :
RT+10ºC~200ºC
Display Mode :
Digital Display
Internal Material :
6.0mm thickness SUS 304# Stainless Steel
External Material :
1.5mm thickness SECC steel plate, powder painted coating
Bottom :
Installed with universal wheel
Observation Window :
Tempered glass with explosion - proof membrane
Vacuum Rate :
1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa)
Description

Transformer Vacuum Drying Oven Price

DGBELL Transformer Vacuum Drying Oven using 6.0mm Thick SUS 304 Stainless Steel

Vacuum Drying Oven Application

DGBELL's Vacuum Drying Oven is designed for drying powder, curing, sterilizing and many other applications which sensitive to heat and pressure. It provides an elevated temperature range from RT+10°C to 200°C when reducing environmental pressure.


Performance parameters

Model

BE-ZK-27L

BE-ZK-64L

BE-ZK-125L

BE-ZK-216L

BE-ZK-512L

Test Space

300x300x300

400x400x400

500x500x500

600x600x600

800x800x800

W x H x D (mm)

External Dimension

600x470x710

700x570x810

800x670x910

900x870x1010

1100x1070x1210

W x H x D (mm)

Power Supply

AC 220V / 50HZ / 3.0KW

AC 220V / 50HZ /4.0KW

AC 380V / 50HZ / 6.0KW

AC 380V / 50HZ / 8.0KW

AC 380V / 50HZ /10.0KW

Temp. Range

RT+10ºC~200ºC

Display Mode

Digital Display

Internal Material

6.0mm thickness SUS 304# Stainless Steel

External Material

1.5mm thickness SECC steel plate, powder painted coating

Bottom

Installed with universal wheel

Observation

Window

Tempered glass with explosion - proof membrane

Timer

4 digits display 0~9999(Hour, Minutes, Seconds changeable)

Vacuum Rate

1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa)

Safety Devices

Remarks:as the inner chamber pressure is(101.325Kpa), if wants the inner chamber pressure decreased to 11.6Kpa. Calculating according to atmosphere pressure of(101.325Kpa), need to blow out (89.7Kpa) pressure of the inside chamber, then the inner chamber can reach low pressure environment of (11.6Kpa).

Pressure

0~101Kpa(Controllable, display)

Pressure Fluctuation

≤5%
