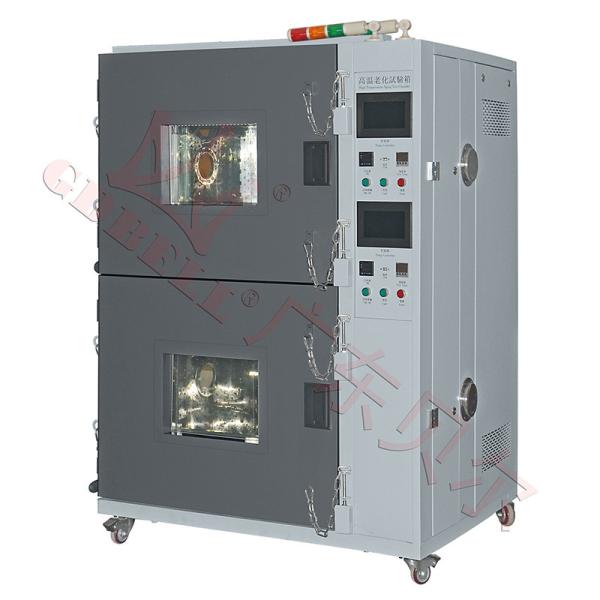

Double Deck High Temperature Accelerated Aging Test Chamber For Battery Cell And Module
Double Deck High Temperature Accelerated Aging Test Chamber For Battery Cell And Module
Double Deck High Temperature Accelerated Aging Test Chamber For Battery Cell And Module
Double Deck High Temperature Accelerated Aging Test Chamber For Battery Cell And Module
Specifications
Brand Name :
DGBELL
Model Number :
BTT-D2-216A/BTT-D2-360A
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
500 Sets per Month
Delivery Time :
Negotiation
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.
Keywords :
Accelerated Aging Testing Chamber
Structure Style :
Integral upper and lower two studio structure
Temperature Range :
Room temperature +10ºC~+150ºC
Temperature Fluctuation :
±0.3ºC
Temperature Rise Time :
RT+10~+100ºC About 10 minutes
Temperature Uniformity :
≤±2ºC(no-load, constant temperature state)
Cooling Mode :
Air-cooled
Description

Double Deck High Temperature Accelerated Aging Test Chamber for Battery Cell and Module

This test chamber series mainly for testing the battery module of Electric-bike, Electric Motorcycles, etc. These series meet the standard compliance of IEC62619, UL2580 and GB31485-2015. Including short circuit, thermal test, drop test and crush test, etc.

Parameters

Modle

BTT-D2-216A

BTT-D2-360A

Single-layer internal dimensions(MM)

W600xD600xH600

W1000xD600xH600

External Dimensions(MM)

W1340xD1080xH1765

W1740xD1800xH2000

Structure Style

Integral upper and lower two studio structure

Temperature Range

Room temperature +10ºC~+150ºC

Temperature Fluctuation

±0.3ºC

Temperature Rise Time

RT+10~+100ºC About 10 minutes

Temperature Uniformity

≤±2ºC(no-load, constant temperature state)

Observation Window

W300xH300MM, explosion-proof glass with explosion-proof film

Cooling Mode

Air-cooled

Control Mode

Touch screen programmable control PLC, with USB interface, with RS485 interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition

Inner Box Material

SUS304# mirror stainless steel, thickness 1.0MM, spray Teflon insulation.

Outer Box Material

Galvanized plate, powder coating, high temperature plasticization, thickness 1.2MM

Power Supply Voltage

AC380V 50HZ 9KW

Safety Protection

Automatic explosion-proof pressure relief device, explosion-proof chain, light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.

Lead Hole

Φ100MM, one on each side, with soft silicone plug and stainless steel cover

Expanded Functions

Open communication protocol and charging and discharging machine supporting use
