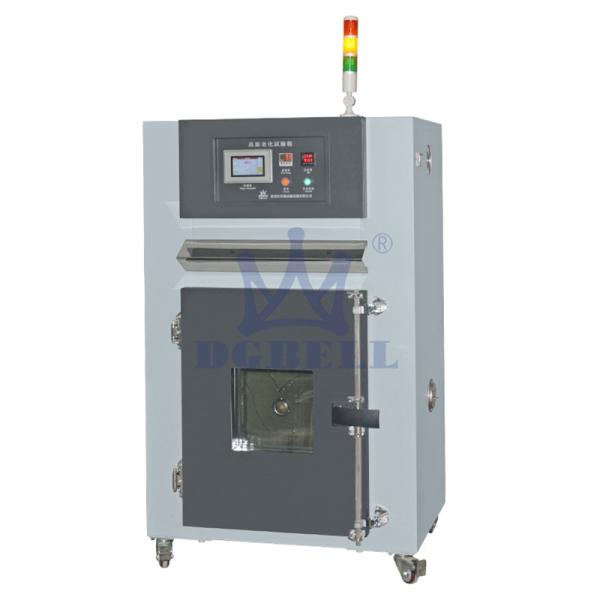

High Temperature Accelerated Aging Chamber Manufacturer for Battery Cell and Module
High Temperature Accelerated Aging Chamber Manufacturer for Battery Cell and Module
High Temperature Accelerated Aging Chamber Manufacturer for Battery Cell and Module
High Temperature Accelerated Aging Chamber Manufacturer for Battery Cell and Module
Specifications
Brand Name :
DGBELL
Model Number :
BTG-1000
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P
Supply Ability :
500 Sets per Month
Delivery Time :
Negotiation
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.
Keywords :
Burn in Test Chamber
Temperature Range :
RT+10℃ ~ +150℃（Fully controllable, adjustable control accuracy ±0.1℃）
Temperature Fluctuation :
±0.3℃
Temperature Uniformity :
≤±2℃ (at no load, constant state)
Observation Window :
W300*H300 MM, explosion-proof glass and affixed with explosion-proof film
Cooling Method :
Air-cooled
Test Space material :
SUS304# mirror stainless steel, 1.0MM thick, sprayed Teflon insulation
Description

Single Layer High Temperature Accelerated Aging Chamber Manufacturer for Battery Cell and Module

DGBELL’s Temperature Aging Test Chamber is widely used for the aging test for electronic products, solar panel, plastic products, especially for battery temperature aging test.

Main Technical Parameter

Model

BTG-720

BTG-1000

Test Space mm

W1000*H1200*D600

W1000*H1000*D1000

External Dimension mm

W1200*H1815*D920

W1400*H1850*D1270

Temperature Range

RT+10℃ ~ +150℃(Fully controllable, adjustable control accuracy ±0.1℃)

Temperature Fluctuation

±0.3℃

Temperature Uniformity

≤±2℃ (at no load, constant state)

Observation Window

W300*H300 MM, explosion-proof glass and affixed with explosion-proof film

Cooling Method

Air-cooled

Control Mode

Touch screen programmable control PLC, with USB interface, with RS485 interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition

Test Space material

SUS304# mirror stainless steel, 1.0MM thick, sprayed Teflon insulation

External Dimension material

Galvanized plate, powder coating, high temperature plasticization, 1.2MM thick

Safety Protection

Automatic explosion-proof pressure relief device, explosion-proof chain, tricolor light device alarm, remote monitoring, smoke exhaust device, fire extinguishing device, etc.

Lead Hole

Φ100mm left and right each open one with soft silicone plug and stainless steel cover

Expansion Function

Open communication protocol and charging and discharging machine supporting use

High Temperature Accelerated Aging Test Chamber Purpose

DGBELL’s high temperature aging test chamber can provide a stable test space for pre-heating, drying, changes in physics and chemistry testing.

Characteristics

1. Outside SECC steel, fine powder coating treatment. Inner SUS#304 stainless steel.
2. Use new heat resistant long shaft motor.
3. Turbine fan.
4. Silicone forced tight.
5. Over-temperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system: PID + S.S.R.
8. Timer: temperature to time, when the facility failure alarm indication.
9. Consistent with customer demand matching glass windows are often customized consistent with customer specifications specified.
