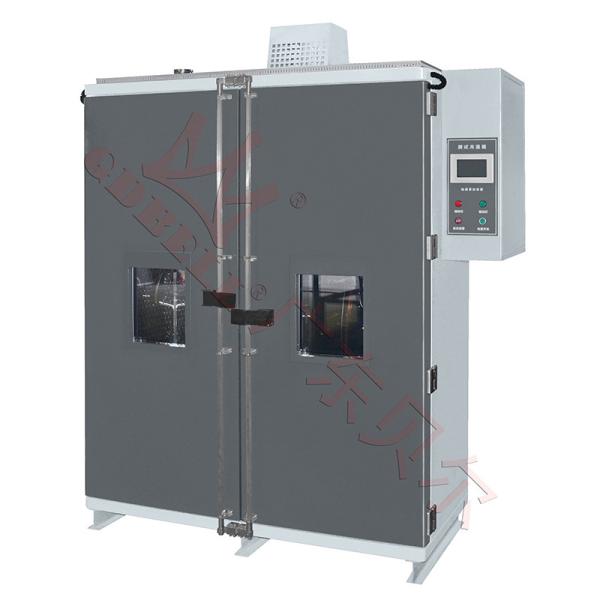

High Temperature and Humidity Test Chamber for Battery Cell and Module
High Temperature and Humidity Test Chamber for Battery Cell and Module
High Temperature and Humidity Test Chamber for Battery Cell and Module
High Temperature and Humidity Test Chamber for Battery Cell and Module
Specifications
Brand Name :
DGBELL
Model Number :
BTG-1755
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
500 Sets per Month
Delivery Time :
Negotiation
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.
Keywords :
climatic chamber
Effective Volume :
1755L
Ambient temperature :
5~35ºC
Temperature range :
RT+10~150ºC can be adjusted at will (adjustable control precision 0.1ºC)
Temperature rise rate :
RT +10~80ºC≥5ºC/min Non-linear
Ambient humidity :
10%~85%RH
Description

High Temperature and Humidity Test Chamber for Battery Cell and Module

Main Technical Parameter

Model

BTG-1755

Effective Volume

1755L

Inner Box Size mm

W1500xD650xH1800

Outer Box Size mm

W2400xD1365xH2087

Test Conditions

Ambient temperature

5~35ºC

Ambient humidity

10%~85%RH

Temperature Index

Temperature range

RT+10~150ºC can be adjusted at will (adjustable control precision 0.1ºC)

Temperature fluctuation

1.No-load, constant state: 40ºC~85ºC≤0.5ºC; 86ºC~150≤1ºC

2. Full-load state: 750W, 40ºC~85ºC≤0.8ºC; 86ºC~150≤1ºC

Temperature deviation

1. No-load, constant state: 40ºC~85ºC≤±1ºC; 86ºC~150≤±2ºC

2. Full-load state: 750W, 40ºC~85ºC≤±2ºC; 86ºC~150≤±2ºC

Temperature uniformity

1. No-load, constant state: 40ºC~85ºC≤1.5ºC; 86ºC~150≤2ºC

2. Full-load state: 750W, 40ºC~85ºC≤2ºC; 86ºC~150≤3ºC

Temperature rise rate

RT +10~80ºC≥5ºC/min Non-linear

4.3 Heat dissipation holes

Configuration of heat dissipation holes, the use of heat balance technology The air inlet is designed on the inside of the electrical box, and the exhaust hole is designed on the top of the equipment to facilitate the connection of pipes to discharge heat.

4.4 Noise

≤ 70dB

1. Sound insulation cotton is put around the sealing board

2. Low noise design of circulating worm shell
