Ultra Long Range Electro Optical Thermal System
Ultra Long Range Electro Optical Thermal System
Ultra Long Range Electro Optical Thermal System
Ultra Long Range Electro Optical Thermal System
Specifications
Brand Name :
JOHO
Model Number :
JH602-1100
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T , D/A
Supply Ability :
100Sets/Year
Delivery Time :
2-3months after received payment
Packaging Details :
Customized Aluminum Alloy Case with wheels
Technology :
Infrared
Style :
Pan / Tilt
Type :
PTZ Camera
Sensor :
MWIR Cooled HgCdTe FPA
HDMI Format :
PAL/NTSC
Horizontal Resolution :
640X512
Kind :
Auto Focus Lens
Effective Distance :
40km
Sensor Size :
640X512
Focus Length :
110~1100 Continuous Zoom
Configuration :
Thermal Camera
Stabilization :
Gyro
Standard :
GJB
Feature :
Waterproof/Weatherproof
Description

Ultra-long Range Electro Optical Targeting System To Observe / Search And Track Target

JH602-1100EOTS Ultra Long Range Electro Optical Tracking System.pdf

Description:

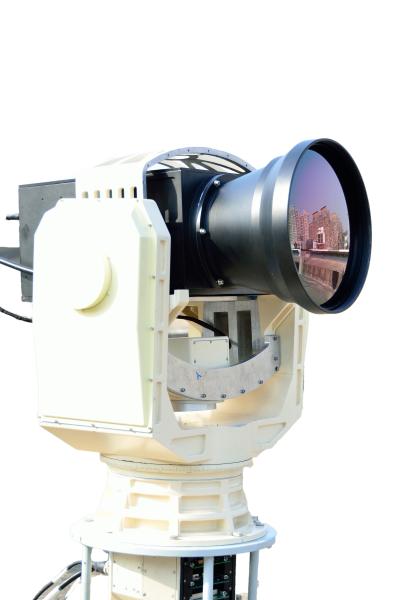

JH602-1100 Ultra-long Range Electro optical EO / IR targeting system with IR Camera is equipped with

a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm continuous zoom lens

which offers super long range security and surveillance application, capable of observation, recognition, aiming and tracking target at day and night.

JH6021100 system can work independently for ship navigation and surveillance at night, or integrated into a larger surveillance system, capable of receiving slaving

instruction from radar.

Applications:

Applied to different carriers(such as aircraft, vessel and vehicle) to search, observe and track target with

collimation control, navigation and early warning functions.

Features:

1. High accuracy continuous zoom lens matches complex variable control system, provides cri-sp image

and stabilized optic-axis in 110mm~1100mm focus length.

2. 640×512 HgCdTe cooled FPA detector provide high quality image.

3. Multi axis stabilization platform, combined with high accuracy gyro and servo control system, ensures

system have high accuracy stabilized tracking ability.

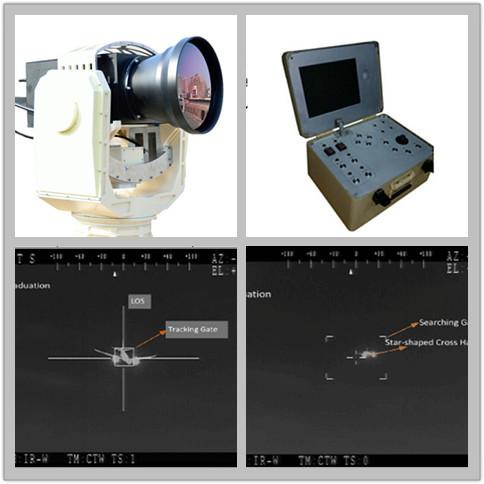

4. Portable CDU, easy operation.

5. Military standard components, high reliability, long lifetime enables working under severe en-vironment

for a long time.

6. Fully-sealed waterproof, optical-mechanical electronic integration design meets military standard.

Specifications:

THERMAL CAMERA

Detector

Cooled HgCdTe FPA

Pixel

640×512

Spectral band

3.7~4.8um

FOV

0.5°×0.4°~5°×4°

with 1100~1100mm continuous zoom lens

Optical-axis parallelism

≤1 pixel

SERVO

Electronic zoom

2× (optional: 4×)

Stabilization accuracy

≤0.15mrad(1σ)

TURRET DIRECTION RANGE

Azimuth

0~330° (optional n×360°);

Elevation

-20°~+75°

Turret maximum angle speed

Azimuth: >50°/s; Elevation: >50°/s

Tracking mode

CTW, CTB, COT

Video signal format

standard CCIR

Data rate

50Hz,100Hz

Communication

RS422

POWER

Input voltage

DC 24V /15A, 220VAC

Consumption

96W (average), 240W (maximum)

ENVIRONMENTAL

Operating temperature range

-40ºC~+60ºC

Storage temperature range

-50ºC~+70ºC

PHYSICAL

Dimension

700mm × 700mm × 1050mm (system)

400mm × 300mm × 190mm (CDU)

Weight

approx. 127kg (Camera); 10kg(CDU)

Ultra Long Range Electro Optical Thermal System
