High Sensitive Thermal Infrared Camera Module For Security And Surveillance
High Sensitive Thermal Infrared Camera Module For Security And Surveillance
High Sensitive Thermal Infrared Camera Module For Security And Surveillance
High Sensitive Thermal Infrared Camera Module For Security And Surveillance
Specifications
Brand Name :
JOHO
Model Number :
JH202-320A/B
Certification :
SGS, ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
500Sets/Year
Delivery Time :
1months after received payment
Packaging Details :
Customized Aluminum Alloy Case
Technology :
Infrared
Style :
Core
Type :
Module
Sensor :
MWIR Cooled HgCdTe FPA
HDMI Format :
PAL/NTSC
Resolution :
320X256
Configuration :
Thermal Camera
Standard :
GJB, Military Technical Equipment
Description

High Sensitive Thermal Infrared Camera Module For Security And Surveillance

Description:

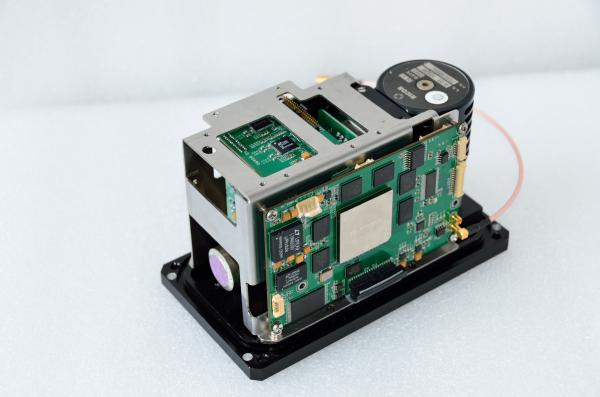

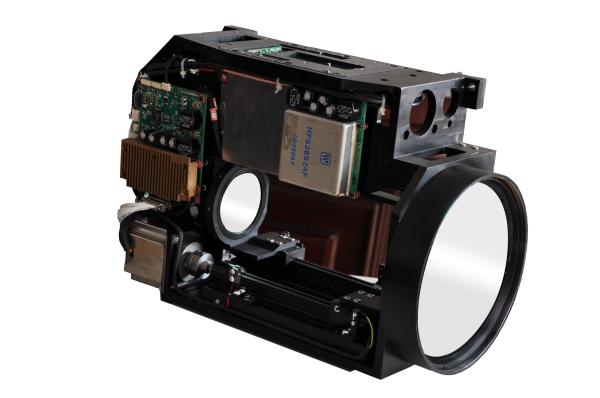

Medium-wave Cooled HgCdTe FPA Thermal Infrared Imaging Module is a cooled MCT thermal imaging module operating in 3.7~4.8um (B mode: 7.7~11um) spectral band, provides OEMs with an extremely compact and high performance solution. JH202-320A/B module with 240mm/60mm, 300mm/75mm Dual FOV and 600mm/150mm/22mm Tri-FOV lens is available.

Application


Security and surveillance
System integration
Secondary development


Feature


Cooled MCT detector provide high thermal sensitivity and low noise
Advanced image processing algorithms provide high quality image
Triple FOV, Dual fov, fixed lens and lens-less is available
High frame frequency up to 200Hz
Easy integration, compatible with common power and video interface


Technical Specifications

Detector
Detector material Cooled MCT FPA
Pixels 320x256
Pitch 30µ mx30µ m
Spectral band (A mode) 3.7~4.8µm (B mode) 7.7~11µm
NETD < 15mK (F/2)
Cooling type Stirling-cycle, Cooling temperature: < 100K
Cooldown time: < 6min@20° C; < 8min@50° C
Fill factor 90%
Optical Parameters
Focus length (optional) 300mm/75mm, 240mm/60mm, 600mm/150mm/22mm
FOV 1.8°x1.4°/ 7.3°x5.8° ; 2.3°x1.8°/9.1°x7.3°; 0.92°x0.73°/4°x3.2°/24.6°x19.8°
Image presentation
Video output Analog PAL/NTSC (Digital: Cameralink)
Integral time programmable
Frame rate 25, 50Hz, 100Hz, 200Hz
Electric zoom x2, x4
Polarity BH & WH
Gain adjustment Auto/Manual
Power system
Power supply DC24V (DC8V~42V)
Power consumption < 20W (cooling), <14W (steady operation)
Operating temperature -40° C~60° C
Storage temperature -40° C~60° C
Command & Control
Communication Interface RS232 / RS422
Physical parameters
Weight < 810g (lensless); <10.5kg (300mm/75mm); <9.8(240mm/60mm)

High Sensitive Thermal Infrared Camera Module For Security And Surveillance
