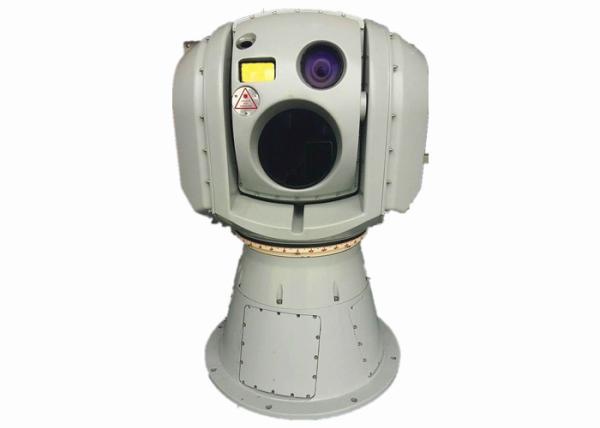

Vehicle Bonre EO / IR Electro Infrared Tracking System
Vehicle Bonre EO / IR Electro Infrared Tracking System
Vehicle Bonre EO / IR Electro Infrared Tracking System
Vehicle Bonre EO / IR Electro Infrared Tracking System
Specifications
Brand Name :
JOHO
Model Number :
JH640-100
Certification :
ISO9001:2000， SGS
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T , , L/C
Supply Ability :
50Sets/Year
Delivery Time :
3months after received payment
Packaging Details :
Customized Aluminum Alloy Case with wheels
Technology :
Infrared
Style :
Pan / Tilt
Type :
2 sensors system
Detector :
LWIR Uncooled VOx FPA
HDMI Format :
PAL/NTSC
Horizontal Resolution :
640x512
Configuration :
Thermal Camera and Day Light Camera
Standard :
GJB
Feature :
Military level waterproof
Description

Vehicle bonre EO / IR Electro Optical Targeting System with IR TV Cameras and LRF

JH602-100Vehicle bonre Electro Optical Targeting System.pdf

Description:

This vehicle-borne Electro-optical ( EO / IR) Infrared Tracking System can keep stable aiming and pointing even when the vehicle gesture changes or shocks. Equipped with high featured thermal view sight, TV, LRF, this system can search, aim, recognize, track and range the target in specified field both day & night, and provide real-time target angle, angular velocity, distance and video, etc. In addition to be used stand alone, this product also can receive the slaving instruct from the fire control system and work with various artillery and GMLS( guided missile launching system) to attack the target on the ground or in the air. Under non-combatant condition, this system can also serve as assistant navigation and warning for the vehicle during the night.

Applications:

Applied to vehicle to search, observe, track and attack target with collimation control, navigation and early warning functions. It can also serve as assistant navigation and warning for the vehicle during the night.

Features:

  • High precision optical system, intelligent zoom control system
  • High quality real-time tracking.
  • Two axis stable platform with high precision gyro and servo control system
  • Military-class component, high reliability & long life under the severe environment
  • Full-sealing and high level waterproof

Specifications:

THERMAL CAMERA
Detector LWIR Uncooled FPA microbolometer
Pixel 640x512
Spectral band 8μm~12μm
FOV 6.2° x 5.0° ( electronic zoom: 2×)
Focal Length 100mm, F#:1
DAY LIGHT CAMERA
Detector 752*582, 1/3" white/black CCD
FOV 55.8° x 2.1° continuous zoom
Illumination Range 200Lx ~105Lx
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~5km (visibility 10km, 8m*2m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤ 0.2mrad (1σ)
Turret direction range Azimuth: ± 180° (0°is bow direction); Pitch: -20°~+75°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥50°/s
Pitch ≥50°/s
Video signal format CCIR PAL standard B/W
Communication RS232
ENVIRONMENTAL
Operating temperature range -40℃ ~ +60℃
Storage temperature range -40℃ ~ +65℃
POWER
Power Supply DC 24V/15A, DC28V/15A
Power Consumption

DC24: ≤350W

DC28V : ≤420W
PHYSICAL
Dimension (L×W×H)

Turret:Φ400×630mm

Electronic cabinet: 159x346.8x185.5mm

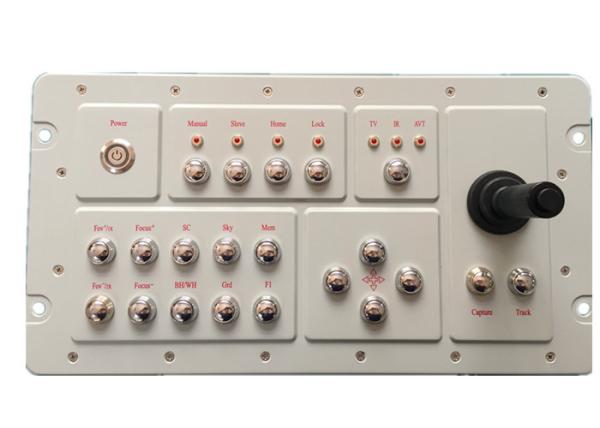

Control box:364×200.5×137.5mm
Weight

Turret:≤70kg

Electronic cabin: ≤8.2kg

Control box:≤1.2kg

Vehicle Bonre EO / IR Electro Infrared Tracking System

Vehicle Bonre EO / IR Electro Infrared Tracking System
