Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Mini Size G04-640 Core Thermal Imaging Camera Module
Specifications
Brand Name :
JOHO
Model Number :
G04-640
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100Sets/Year
Delivery Time :
negotiation
Packaging Details :
Safety equipment case
Technology :
Infrared
Style :
Core
Type :
Module
Sensor :
uncooled FPA
HDMI Format :
PAL
Pixel :
640*512
Pitch :
17um
Standard :
GJB, Military Technical Equipment
Configuration :
Thermal camera integration
N E T D :
≤50mk(@F/1, 25℃)
Description

Mini Size G04-640 Core Thermal Imaging Module For UAV , Infrared Camera Module 17um Pitch

Technical Specification

DETECTOR
Detector Vanadium oxide uncooled FPA (domestic)
Pixel 640×512
Pitch 17um
Spectral Band 8um~14um
Frame Frequency 50Hz/25Hz
NETD ≤50mk(@F/1, 25℃)
Cooling Down ≤12s
FUNCTION INTERFACE
Video Output 1 way, PAL

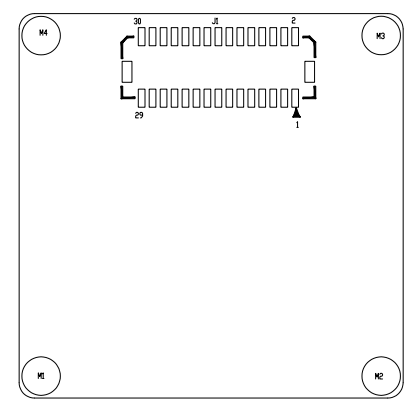

Communication & Control Interface RS232/ I2C/ UART (optional)
Shutter Calibration Automatic
Polarity BH/WH; Pseudo
Electronic Zoom ×2/×4
Cross Cursor Display On/off
Cross Cursor Position Adjustable
Image Gain Adjustable
Image Brightness Adjustable
Image enhancement Adjustable
Power Supply DC4V～5.5V or DC4V～19V
Consumption <1.7W( full operating temperature with TEC)
ENVIRONMENTAL
Operating Temperature -40℃～+60℃
Storage Temperature 50℃～+70℃

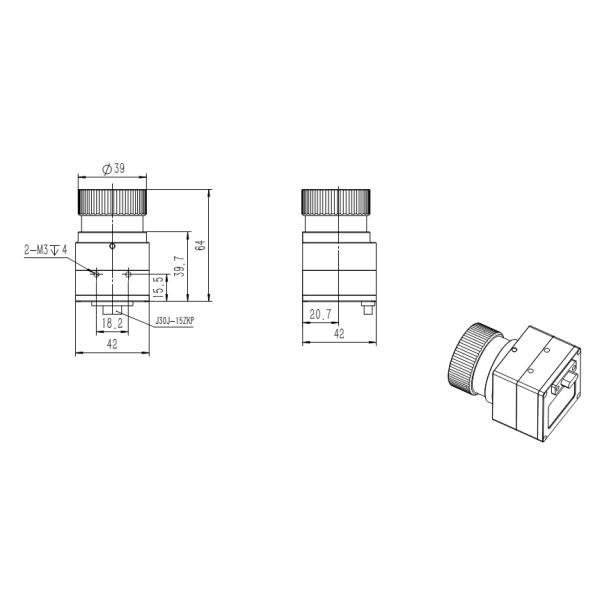

PHYSICAL
Dimension 35mm×35mm×35mm
Weight ≤82g (without lens)

Mini Size G04-640 Core Thermal Imaging Camera ModuleMini Size G04-640 Core Thermal Imaging Camera Module
