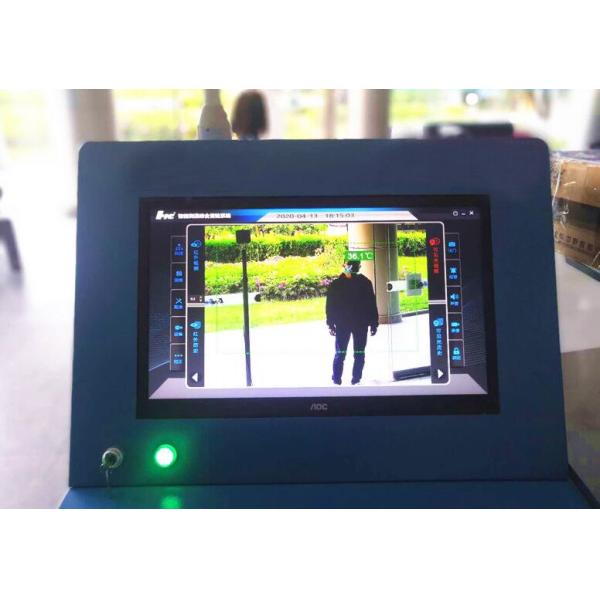

Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Specifications
Brand Name :
JOHO
Model Number :
JH513-B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5000PCS/Year
Detector :
Uncooled FPA Vox
NETD :
50mK@30ºC
Pixel size :
17um
Spectral band :
8~14um
Bad pixel :
<0.05%
FOV :
24°×19°
Resolution :
1920(H)×1080(V)
Focal length :
4.7mm-94mm continuous zoom
Size :
progressive scanning 1/2.8"CMOS
Displayed temperature range :
(30~50.0)ºC
Dimension :
125(L)×95(W) ×160(H)mm
Description
Uncooled Vox FPA Human Body Thermal Detector Pixel 384×288
H513-B is a new medical innovation. It can diagnose diabetes, arthritis, breast cancer and other diseases only by scanning, and does not radiate harmful substances to human body. High precision, powerful function, professional analysis software, jh513-b reports the professional examination results of doctors. It has also been successfully integrated into a new generation of thermal texture mapping system for breast diagnosis, head and face, thyroid, chest and abdomen, back, lower extremity forelimb / lower extremity, left and right, pelvis diagnosis.

Features

2X real time electronic zoom
Automatic shutter compensation
Ultra low power consumption
Ethernet Remote Transmission and control
Professional and user-friendly analysis software

TECHNICAL SPECIFICATIONS
Detector
Detector type Uncooled FPA VOx
Response spectral 7.5~13.5μm
Pixel 320×240 (optional 640×480)
Pitch 17μm×17μm
Image Performance
Lens 28.6mm (F/1.2)
Focusing Motorized
NETD 50mK@30ºC
Frame rate 25Hz/30Hz
Image Presentation
Palette 10 (Medical, Grey, Iron, Iron 10, Gradient, Midyellow,
Midgreen, Rainbow, Midgray, Inverted gray)
Zoom 2x digital zoom
Measurement
Temperature range 0ºC~+60ºC (able to be cusomized)
Alarming Temp. Range 25ºC~45ºC(able to be cusomized)
Temperature accuracy ±0.5ºC
Storage
Storage medium PC
Image/ Video Format BMP/IRM
Ambient Parameters
Operation temperature -20ºC~+60ºC
Storage temperature -20ºC~+60ºC
Interface
Customized interface Ethernet
Physical Parameters
Dimension 125(L)×95(W) ×160(H)mm
Weight 1.2Kg
Color Black

Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
Uncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic ZoomUncooled FPA Vox Body Thermal Detector With 2X Real Time Electronic Zoom
