Specifications
Brand Name :
JOHO
Model Number :
JHP103-M145C
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Delivery Time :
3 months
Packaging Details :
Standard packing
Detector :
1/2.8" CMOS
Resolution :
1920×1080
Focal length :
30× optical zoom
FOV :
63.7°~2.3°
Platform :
2-axis gyro stabilization
Stabilization accuracy :
≤0.5mrad(1σ)
Power Supply :
DC 24V
Power Consumption :
≤25W (Average), ≤35W (Peak)
Dimension Turret :
≤Φ145mm×220mm (subject to final design)
Turret Weight :
≤5kg
Function :
searching, observing and tracking
Description

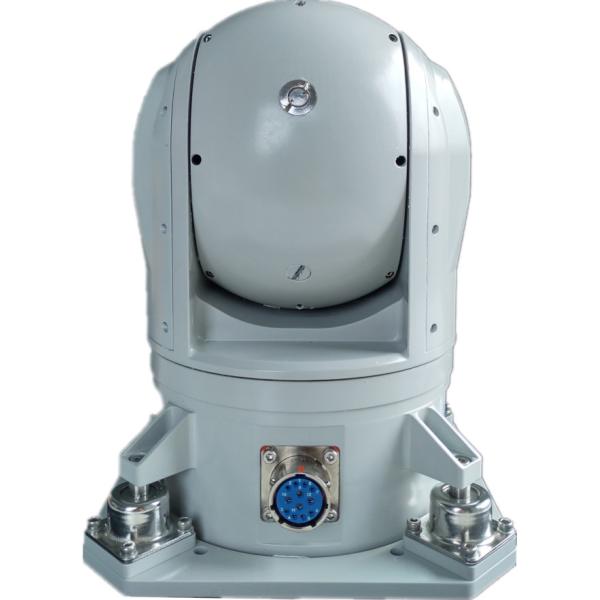

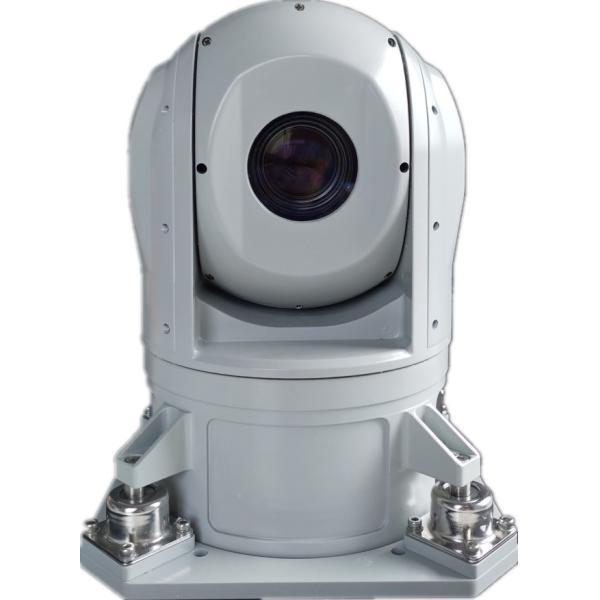

2-Axis Gyro Stabilization Infrared Tracking Gimbal

The photoelectric camera system adopts double axis and double frame structure, with built-in Hd 1080p daylight camera. It is mainly used for unmanned ships to search, observe and track water targets, and meet the requirements of reconnaissance and other applications. The product is small in size, light in weight and modular in structure.

Feature

  1. Daylight camera for daytime observation
  2. 2-axis stabilization on azimuth and elevation, no dead-angle coverage in reconnaissance range
  3. Network interface communication realizes gimbal operation from ground control station, as well as wireless transmission of video and image
  4. Small size, light weight, compact structure, high adaptability to carrier
  5. Optical axis can be quickly positioned to the azimuth and elevation angle on user input
  6. Working mode, azimuth angle, pitch angle, field of view (H × V) and other status data are returned
  7. Gyro zero compensation
  8. OSD functions are available, such as azimuth, elevation and field of view (H × V) information

Technical Specification

DAY LIGHT CAMERA
Detector 1/2.8" CMOS
Resolution 1920×1080
Focal length 30× optical zoom
FOV 63.7°~2.3°
Focusing Auto/ semi-auto/ Manual
Frame frequency 30Hz (25Hz optional)
SERVO
Platform 2-axis gyro stabilization
Stabilization accuracy ≤0.5mrad(1σ)
Turret direction range

azimuth:360° continuous;

elevation:＋90°～－90°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥70°/s
Pitch ≥70°/s
Tracking (optional)
Static tracking accuracy ≤1 pixel
Tracking speed ≥20°/s
Min tracking contrast ratio 5%
Dynamic tracking accuracy superior to 1mrad
Electrical Interface
Video output Ethernet, for H.264 compressed format video
Communication control Asynchronous RS422 serial port
Radar linkage interface Available
Power Supply DC 24V
Power Consumption ≤25W (Average), ≤35W (Peak)
Physical
IP level IP 67
Working temperature -20°~ 60°
Storage temperature -35°~ 65°
Working humidity Up to 95%RH
Wind resistance More than 100Knot
Environment test Complying with GJB150 standard
Dimension Turret ≤Φ145mm×220mm (subject to final design)
Turret Weight ≤5kg
