15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
Specifications
Brand Name :
JOHO
Model Number :
JHS209-S05-100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C,, Western Union, MoneyGram
Supply Ability :
50Sets/Year
Delivery Time :
negotiation
Packaging Details :
Standard Safety Equipment Case
Function :
Searching, Observation, Tracking and Positioning
Gyro Stabilised Gimbal :
2 Axis
Sensor :
HD CCD and IR Thermal Imager
Weight :
3kg
Dimension :
156mm(Diameter)×244mm(H)
Application :
Unmanned Ship, Unmanned Vehicle, Usv, Uav
Pixel :
1920x1080
Color :
White & black
Stabilization accuracy :
≤0.5mrad
Detector :
VOX Uncooled FPA
Power Supply :
DC 12V
Power consumption :
≤15W
Description

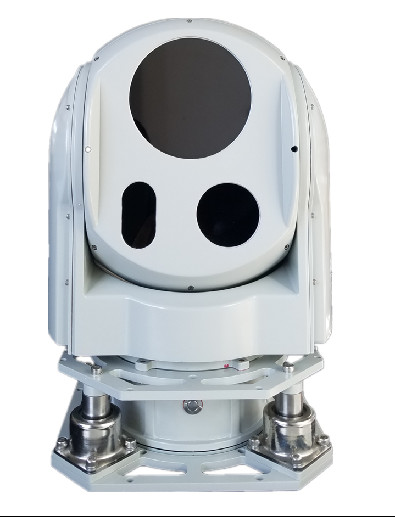

JHS209-S05-100 EO/IR Long Range Surveillance System

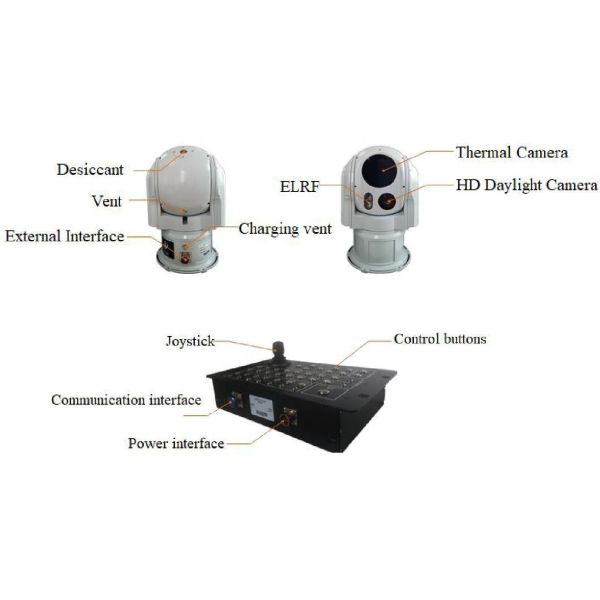

JHS209-S05-100 EOTS is a high precision multi-sensor reconnaissance EO/IR system, equipped with LWIR 640×512 uncooled IR thermal camera, 1080p daylight camera with 30× optical zoom and 5000m eye-safe laser range finder, capable of acquisition, detection,recognition, identification,tracking and ranging air or surface target 24h, real-time output target image, target azimuth angle, elevation angle and distance at high accuracy. Thanks to high accuracy gyro stabilization and ruggedized 2-axis 2-gimbal structure, it isolates disturbance (shock, vibration) from carrier, output stabilized video and LOS (line of sight). It is ideal choicecoastal guard, maritime, surveillance and law enforcement.
Function & Features
⚫2-axis 2-gimbal stabilization, high accuracy gyro and servo control system to implement observation without blind area.
⚫Thermal camera and day light camera for day and night observation.
⚫Network port communication, utilizing wireless communication technology, to realize remote operation and control and wireless image transmission
⚫Small size, lightweight, compact structure, low power consumption and high cost effective
⚫Auto/manual target lock and tracking
⚫Daylight camera, thermal camera and laser range finder bore-sighting
⚫Report system operation mode, target azimuth angle, elevation angle and distance.
⚫IP67 for outdoor use, vibration resistance, shock resistance. Long lifetime.
⚫User-friendly HMI
Technical Specification
Gimbal
Azimuth range 360°×n
Elevation range ＋60°～－60°(0°is horizontal forward)
Max angle speed ≥30°/s
Stabilization accuracy ≤0.5mrad(1σ)
Thermal Camera
Detector Uncooled FPA microbolometer
Spectral band 8μm~14μm
Pixel 640×512
NETD ≤45mK
FOV 7.79°×6.23°
Frame frequency 25Hz
Video interface PAL
HD Daylight Camera
Sensor 1/2.8” CMOS
Pixel 1920×1080
Focal length 63.7°～2.3° 30× optical zoom
Video interface 1-way analog PAL, 1-way HD-SDI
Laser Range Finder
Wavelength Eye-safe 1.55μm, Laser Class 1
Measurement range 30m~5000m
Accuracy ≤0.5~1m
Measurement Frequency 0.5~10Hz

15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera15W DC12V EO IR Long Range Surveillance System 1920x1080 With Thermal Camera
