Specifications
Brand Name :
JOHO
Model Number :
UWA384CX-H09-F
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100Sets/Year
Delivery Time :
negotiable
Packaging Details :
safety box with vibration proof, water proof
Detector Type :
VOx Uncooled Infrared LWIR
Pixel :
1280×1024
NETD :
40mK
Spectral Band :
8~14μm
Power supply :
DC 6.5V~13V
Communication interface :
RS422
Time to image :
≤20s
Size :
46mm×48.9mm×42mm
Weight :
≤90g
Description

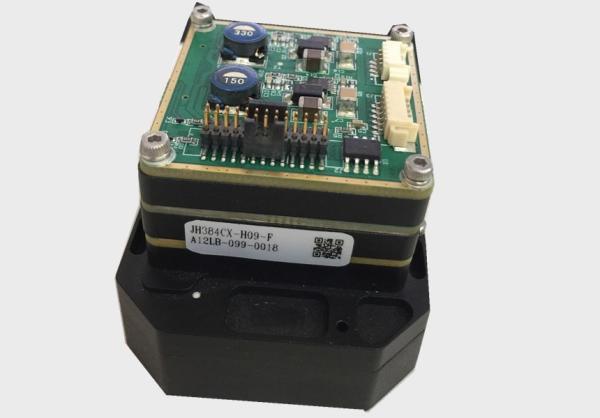

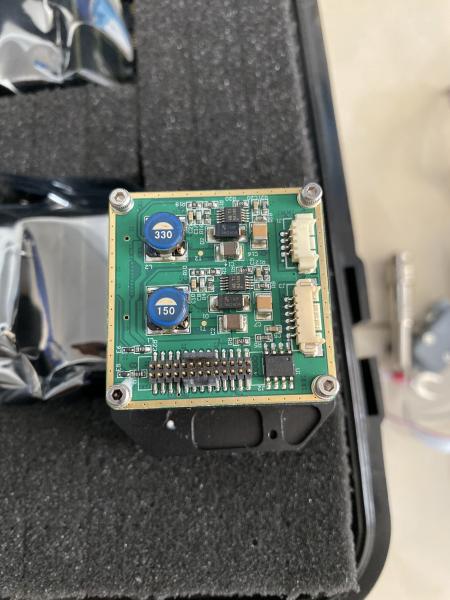

Infrared LWIR Uncooled 384x288 VOx thermal imaging camera module

Description
This LWIR uncooled thermal imaging module is a matured and high reliable product independently developed by our company. It utilizes high-quality material and top-end manufacture technology. Currently, it has been widely used in the aerospace, aviation, military, armed police, public security, customs, security, monitoring, petroleum, chemical, electric power and other industries.

Features

  • Suit long-range, multi-task search and observation
  • Miniature size and light weight
  • High sensitivity and high resolution
  • Standard interface , easy to integrate
  • Entire enclosure shell protection and compact design

Technical Specification

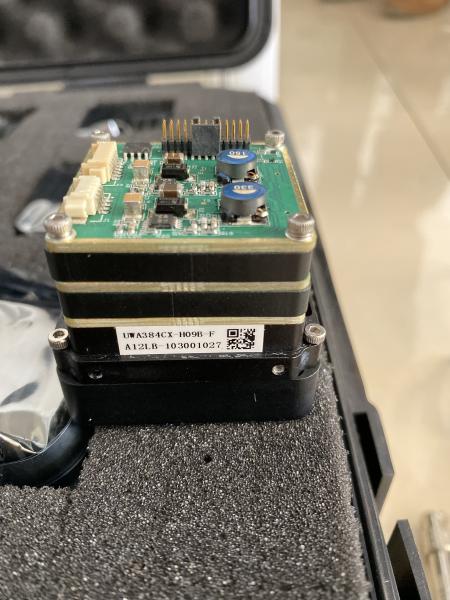

Model UWA384CX-H09-F
Type VOx Uncooled Infrared LWIR
Array format 384×288, 25μm
Spectral response 8~14μm
Power consumption ≤1.7W@25℃
Power supply DC 6.5V~13V
Time to image ≤20s
Operating temperature range －40℃~+60℃
Storage temperature rage －55℃~+70℃
NETD (@1/f. 25Hz) 40mK
Focus motor driver PWM adjustment
Video output 2 channel Analog video output, PAL formats
Communication interface RS422
Main control function

Manual background calibration, Manual shutter calibration, Polarity setting, 1×~2× continuous zooming, Cross cursor display, Cross cursor position adjustment, Gain adjustment, Brightness adjustment,

Digital Details Enhancement (DDE), Motorized focusing, Reticle display settings, System parameter reset
Five type reticle Infrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm
Size 46mm×48.9mm×42mm
Weight ≤90g


Infrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mmInfrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm

Infrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mmInfrared Lwir Uncooled 384X288 Vox Thermal Camera Sensor Module 46mm ×48.9mm ×42mm
