2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
Specifications
Brand Name :
JOHO
Model Number :
JH602-42021
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C,, Western Union, MoneyGram
Supply Ability :
50Sets/Year
Delivery Time :
negotiation
Packaging Details :
Standard Safety Equipment Case
Stabilized Platform :
2-axis 4-gimbal
Sensor :
HD CCD and IR Thermal Imager
Weight :
≤45kg
Dimension :
≤Φ430mm×640mm
Application :
Unmanned Ship, Unmanned Vehicle, Usv, Uav
Angular Accuracy :
±0.1°(1σ)
Power Supply :
DC24~36V
Communication Interface :
Asynchronous RS422
Daylight Camera FOV :
19.5°×10.88°~0.79°×0.44°
Thermal Camera Detector :
MWIR Cooled MCT FPA
Spectral Band :
3~5μm
Description

2-axis 4-gimbal Air-borne EO/IR Surveillance and Tracking Gimbal

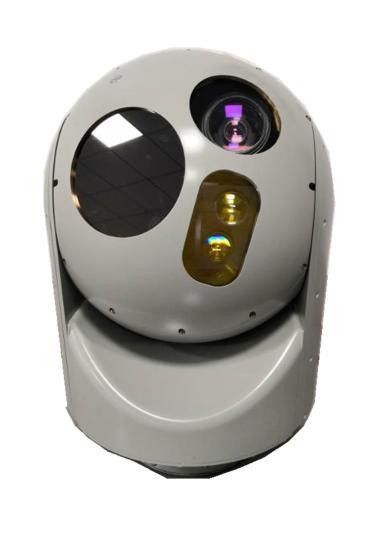

JH602-42021 gimbal is a highly integrated optical-mechanical-electro system,which is suitable for helicopters, unmanned aerial vehicles, transport aircraft and other surveillance and reconnaissance aircraft.The gimbal slaves to a 2-axis 4-gimbal gyro stabilized platform to implement LOS (line of sight) movement in azimuth and elevation direction. Under servo control, the gimbal overcomes carrier disturbance and provides a stabilized platform for sensors unit. The sensor unit is equipped with a MWIR cooled IR thermal camera with continuous zoom lens, and a HD daylight camera running in all weather, providing 10km laser range finder for real-time measurement of target distance.

Functions

  • Isolate carrier disturbance and stably output IR & visible video/image;

  • Observation and detection targets at day and night
  • Auto/manual tracking target
  • Measuring target distance by laser range finder
  • Real-time provide target azimuth angle, elevation angle and distance at high accuracy
  • System make self-test and report self-test result

Technical Specifications

System Specification
Stabilized platform 2-axis 4-gimbal
Azimuth coverage N×360°continuous
Elevation -110°~+20°(0°is horizontal ahead)
Stabilization accuracy 25μrad(1σ)
Angular accuracy ±0.1°(1σ)
Physical Specification
Dimension ≤Φ430mm×640mm
Weight ≤45kg
Color Airplane grey
Interface
Video interface Synchronous RS422
Communication interface Asynchronous RS422
Environmental Specification
Operation temperature -40℃～+60℃;
Storage temperature -50℃～+70℃
Power supply
Gimbal

DC24~36V,

steady power consumption: ≤500W;
Control box

DC24V, range 18V～36V;

Steady power consumption: ≤3W
Thermal Camera Specification
Detector MWIR Cooled MCT FPA
Spectral band 3~5μm
Pixel 640×512
FOV 26.19°×20.95°~1.31°×1.05°
Detection distance 10Km (2.3m×2.3m vehicle)
Recognition distance 8Km (2.3m×2.3m vehicle)
Daylight Camera
Sensor Colorful CCD
Resolution 1920×1080(16:9)
FOV 19.5°×10.88°~0.79°×0.44°
Detection distance 14km (2.3m×2.3m vehicle)
Recognition distance 11km (2.3m×2.3m vehicle)
Laser Range Finder
Wavelength 1.06μm
Measurement Range 300m～10km (visibility 23Km, target 2.3m×2.3m)
Measurement accuracy ≤±5m
Measurement rate ≥98%

Control Box

As the command center of the system, the control box control content includes: joystick, working mode switching, thermal image and daylight image adjustment, laser ranging, target tracking, gimbal motion control, etc

  • Make optical axis alignment of EO sensors
  • Receiving target designation from other navigation equipment and automatically turns direction to start recognition and tracking target.2 Axis 4 Gimbal Stabilized Platform Electro Optical Sensor System
