M Face GaN Epitaxial Wafer Free Standing GaN Substrates 325um TTV 10um
M Face GaN Epitaxial Wafer Free Standing GaN Substrates 325um TTV 10um
Specifications
Brand Name :
GaNova
Model Number :
JDCD01-001-007
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-4 week days
Packaging Details :

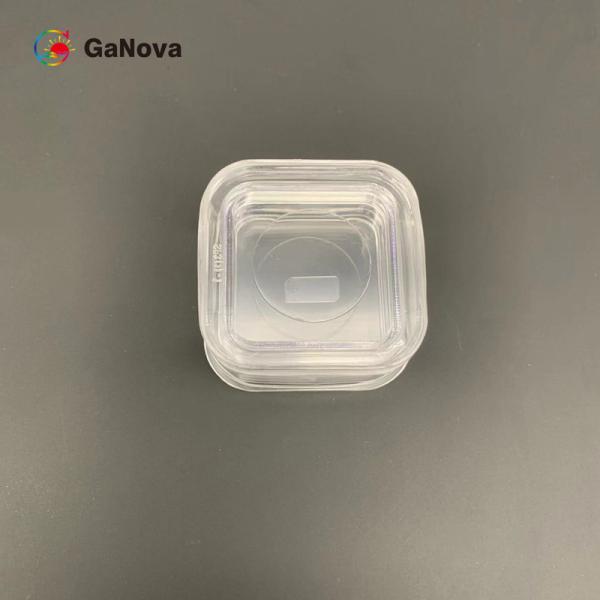

Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Product Name :
GaN Substrate
Dimensions :
5 x 10.5mm²
Thickness :
350 ±25µm
TTV :
≤ 10µm
BoW :
- 10µm ≤ BOW ≤ 10µm
Macro Defect Density :
0cm⁻²
Description

5*10.5mm2 M-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser wafer


Overview

Gallium Nitride (GaN) substrate is a high-quality single-crystal substrate. It is made with original HVPE method and wafer processing technology, which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality.

Gallium Nitride is a semiconductor technology used for high power, high-frequency semiconductor applications. Gallium Nitride exhibits several characteristics that make it better than GaAs and Silicon for various high power components. These characteristics include a higher breakdown voltage and better electrical resistivity.

M face Free-standing GaN Substrates
Item

GaN-FS-M-U-S

GaN-FS-M-N-S

 GaN-FS-M-SI-S

M Face GaN Epitaxial Wafer Free Standing GaN Substrates 325um TTV 10um

Remarks:

A circular arc angle (R < 2 mm) is used for distinguishing the front and back surface.
Dimensions 5 x 10 mm2
Thickness 350 ±25 µm
Orientation

M plane (1- 100) off angle toward A-axis 0 ±0.5°

M plane (1- 100) off angle toward C-axis - 1 ±0.2°
Conduction Type N-type N-type Semi-Insulating
Resistivity (300K) < 0.1 Ω·cm < 0.05 Ω·cm > 106 Ω·cm
TTV ≤ 10 µm
BOW - 10 µm ≤ BOW ≤ 10 µm
Front Surface Roughness

< 0.2 nm (polished)；

or < 0.3 nm (polished and surface treatment for epitaxy)
Back Surface Roughness

0.5 ~1.5 μm

option: 1~3 nm (fine ground); < 0.2 nm (polished)
Dislocation Density From 1 x 105 to 3 x 106 cm-2
Macro Defect Density 0 cm-2
Useable Area > 90% (edge exclusion)
Package Packaged in a class 100 clean room environment, in 6 PCS container, under a nitrogen atmosphere

Appendix: The diagram of miscut angle

M Face GaN Epitaxial Wafer Free Standing GaN Substrates 325um TTV 10um

If δ1= 0 ±0.5 degree, then M plane (1- 100) off angle toward A-Axis is 0 ±0.5 degree.

If δ2= - 1 ±0.2 degree, then M plane (1- 100) off angle toward C-Axis is - 1 ±0.2 degree.
