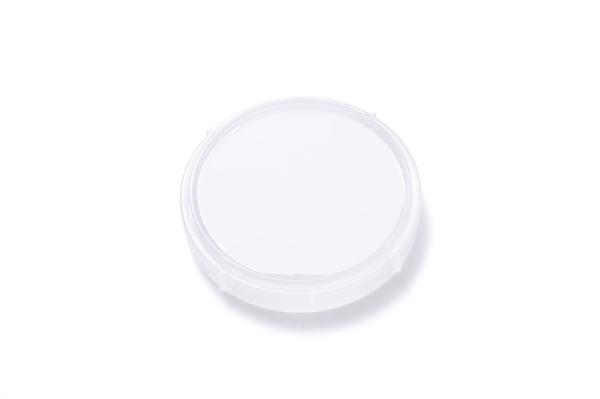

A Plane Patterned Sapphire Substrates BOW -8 - 0μm Edge Round
A Plane Patterned Sapphire Substrates BOW -8 - 0μm Edge Round
Specifications
Brand Name :
GaNova
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Model Number :
JDCD09-001-001
Dimension :
50.80±0.10mm
Thickness :
430±10μm
Flat edge width :
16±1.0mm
Flat edge angle :
A-plane±0.2˚
TTV :
≤5μm
BOW :
≤-8~0μm
Front Surface Roughness :
≤0.25nm
Back Surface Roughness :
0.8~1.2μm
Description

A-plane±0.2o Patterned Sapphire Substrates BOW ≤-8~0μm Edge Round

The formation of LEDs on patterned sapphire substrates is the most cost-effective method for manufacturing such devices. These LEDs exhibit high-normalized electroluminescence intensity and high light extraction efficiency.

In addition, patterned wafers reduce defect density and total internal reflection losses. These advantages are driving the adoption of nitride-semiconductor-based LEDs by manufacturers.

2inch Patterned sapphire substrate
Item Al2O3

A Plane Patterned Sapphire Substrates BOW -8 - 0μm Edge Round
Dimension 50.80±0.10mm
Thickness 430±10μm
Flat edge width

16±1.0mm
Flat edge angle A-plane±0.2o
TTV ≤5μm
BOW ≤-8~0μm
Front Surface Roughness ≤0.25nm
Back Surface Roughness 0.8~1.2μm
Edge Round
Laser making back

About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.

FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
