Specifications
Brand Name :
GaNova
Model Number :
JDCD02-001-001
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
Payment Terms :
T/T
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Product Name :
Aluminum Nitride Wafer
Diameter :
25.4±0.5mm
Thickness :
400±50μm
Crystal Form :
2H
Polytype :
{0001}±0.5°
TUA :
≥90%
Description

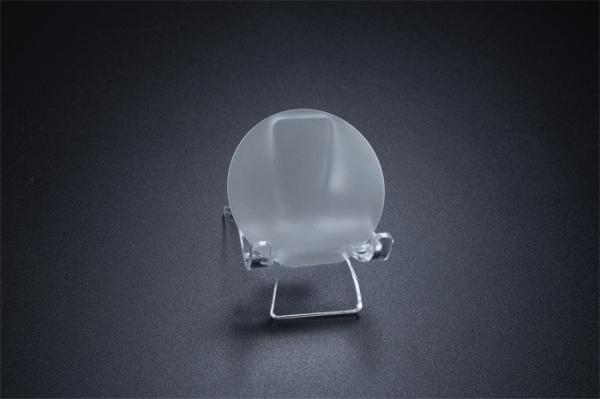

JDCD02-001-001 1inch AlN single crystal 400±50μm S/P/R grade

AlN substrate is one of the most popular ceramic substrate which has excellent heat resistance, high mechnical strength , abrasion resistance and small dielectric loss . The surface of AlN substrate is quite smooth and low porosity . Aluminium Nitride has higher thermal conductivity , compared to alumina substrate , It is about 7 to 8 times high . AlN substrate is an excellent electronic package material .

1inch Aluminum nitride single crystal substrate
Crystal Specifications Parameter value
Diameter(mm) 25.4±0.5
Thickness(μm) 400±50
Crystal Form 2H
Polytype {0001}±0.5°
Surface polishing Aluminum surface: chemical polishing (double polishing can be customized)
Roughness

Al face:≤0.5nm

N face(back):≤1.2μm

appearance Circular belt positioning edge
Quality grade S grade(Super) P grade(Prouduction) R grade(Research)
HRXRD Half height width@{0002}(arcsec) ≤150 ≤300 ≤500
HRXRD Half height width@{10-12}(arcsec) ≤100 ≤200 ≤400
absorption coefficient@265nm(cm-1) ≤50 ≤70 ≤100
Edge Exclusion(mm) 1 1 1
Indents / / /
Chips / / ≤3 Cumulative ≤1.0mm
TUA ≥90%
Main positioning edge orientation {10-10}±5.0°
Orientation of secondary locating surface

Al face:Rotate clockwise in the direction of the main positioning edge90°±5°

N face:Rotate counterclockwise in the direction of the main positioning edge90°±5°

TTV(μm) ≤30
Warp(μm) ≤30
Bow(μm) ≤30
Cracks No, naked eye, strong light
Contamination No, naked eye, radiation
Laser coding N face,Parallel to the main locating edge
Package Monolithic wafer box
