Specifications
Brand Name :
GaNova
Model Number :
JDWY01-001-007
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
Payment Terms :
T/T
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Dimensions :
φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate :
Sapphire(Single or Double Side Polished)
Thickness :
[1,2)μm,[2,3)μm,[3,4)μm,[4,5)μm
Orientation :
C-plane (0001)±1o
Conduction Type :
Semi-Insulating
Edge Exclusion Zone :
<2mm
Surface Roughness :
Ra<1.5nm(10*10μm)
Product Name :
Aluminum Nitride Wafer
Description

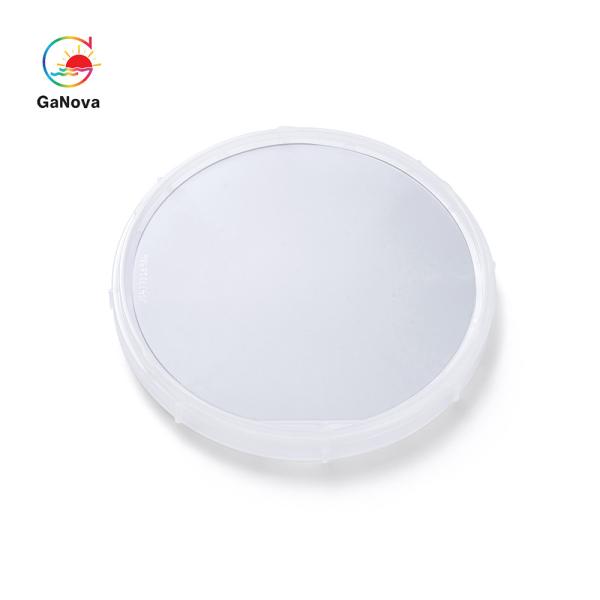

2 inch thick film (4,5)um AIN on sapphire wafer,SSP,XRD FWHM of(002)≤160arcsec(102) ≤400arcsec UV disinfection, LED chip

Sapphire is a material of a unique combination of physical, chemical and optical properties, which make it resistant to high temperature, thermal shock, water and sand erosion, and scratching.

Item AlN-T-C-U-C50
Dimensions φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate Sapphire(Single or Double Side Polished)
Thickness 1~5μm
Orientation

C-plane (0001)±1o

Conduction Type Semi-Insulating
Crystalline Quality Thickness XRD FWHM of(002) XRD FWHM of(102)
[1,2)μm ≤80arcsec ≤650arcsec
[2,3)μm ≤100arcsec ≤550arcsec
[3,4)μm ≤120arcsec ≤450arcsec
[4,5)μm ≤160arcsec ≤400arcsec
Edge Exclusion Zone

<2mm

Surface Roughness Ra<1.5nm(10*10μm)
Package Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
