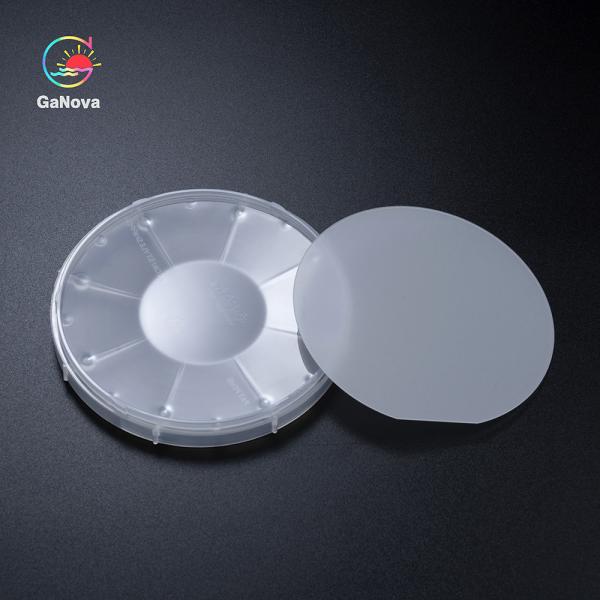

JDCD02-001-004 10*10mm2 AlN Single Crystal 400±50μM S/P/R Grade
JDCD02-001-004 10*10mm2 AlN Single Crystal 400±50μM S/P/R Grade
Specifications
Brand Name :
GaNova
Model Number :
JDCD02-001-004
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
Payment Terms :
T/T
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Product Name :
AlN Single Crystal
Diameter（mm） :
10x10
Thickness（μm） :
400±50
Crystal Form :
2H
Roughness :
Al face：≤0.5nm N face(back)：≤1.2μm
appearance :
square shape
Description

JDCD02-001-004 10*10mm2 AlN Single Crystal 400±50μM S/P/R Grade

AlN Single Crystal Substrate Applications

Widely used in the preparation of high temperature, high frequency, high power electronic devices.It is an important blue and ultraviolet light-emitting material; High thermal conductivity, high melting point, high resistivity, strong breakdown field and low dielectric coefficient.

10*10mm2 Aluminum nitride single crystal substrate
Crystal Specifications Parameter value
Diameter(mm) 10x10
Thickness(μm) 400±50
Crystal Form 2H
Polytype {0001}±0.5°
Surface polishing Aluminum surface: chemical polishing (double polishing can be customized)
Roughness

Al face:≤0.5nm

N face(back):≤1.2μm
appearance square shape
Quality grade S grade(Super) P grade(Prouduction) R grade(Research)
HRXRD Half height width@{0002}(arcsec) ≤150 ≤300 ≤500
HRXRD Half height width@{10-12}(arcsec) ≤100 ≤200 ≤400
absorption coefficient@265nm(cm-1) ≤50 ≤70 ≤100
Edge Exclusion(mm) 1 1 1
Indents None None None
Chips None None ≤3 Cumulative ≤1.0mm
TUA ≥90%
TTV(μm) ≤30
Warp(μm) ≤30
Bow(μm) ≤30

Cracks

 No, naked eye, strong light
Contamination No, naked eye, radiation
package Monolithic wafer box

About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.

FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
