70 To 120 PGa CVD Diamond Substrates Single Crystal Electronic Grade
70 To 120 PGa CVD Diamond Substrates Single Crystal Electronic Grade
Specifications
Brand Name :
GaNova
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
3-4 week days
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Model Number :
JDCD05-001-001
Density(g/cm3) :
3.515
Young’s modulus(PGa) :
1050
Product Name :
CVD Diamond Substrates
Fracture toughness(MPa·m1/2) :
1~8
Firction coefficient :
0.1
Thermal conductivity(300K,Wm·K) :
1000~2000
Description

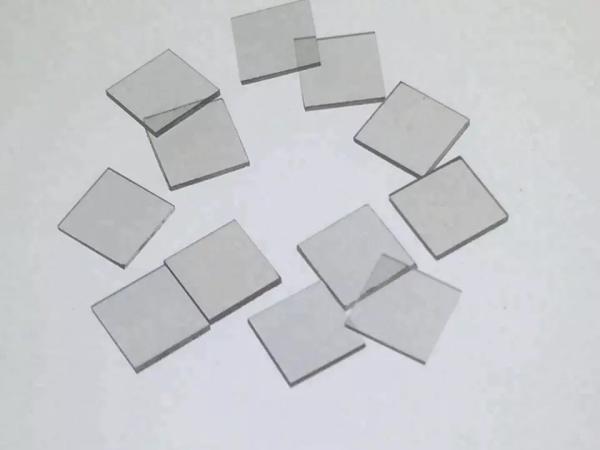

70~120 single Crystal Electronic Grade Single Crystal Diamond

3*3mm²*0.3mm Electronic Grade Single Crystal Diamond,N Content<100ppb, XRD<0.015º For Heat Sink

Overview

HPHT single crystal diamond are synthetic diamonds produced by high pressure high temperature synthesis under tightly controlled growth conditions. More Super Hard mainly produce industrial-grade single crystal synthetic diamond plate. The shapes of mcd diamond plates include round shape, square shape, rectangle and hexangle shapes,etc.


Specification

properties Synthetic diamond
Density(g/cm3) 3.515 Intrinsic properties
Young’s modulus(PGa) 1050

Mechanical property
Hardness(PGa)

70~120single crystal

60~100 polycrystalline
Breaking strength

2.5-3G Pasingle crystal

200-1100MPa polycrystalline
Fracture toughness(MPa·m1/2) 1~8
Firction coefficient 0.1
Thermal conductivity(300K,Wm·K) 1000~2000 Thermal properties
Coefficient of thermal expansion(×10-6/℃) 1(room temperature)
Rerfractive index(590nm) 2.4 Optical properties
Light transmittance 225nm to far infrared
Band gap width(ev) 5.47 Electrical properties
Resistivity(Ω·cm) ＞1010
Electron mobility(cm2/V·s) 4500
Hole mobility(cm2/V·s) 3800
Dielectric constant 5.5 Dielectric properties
Dielectric losses ＜2×10-4
