Product Name :

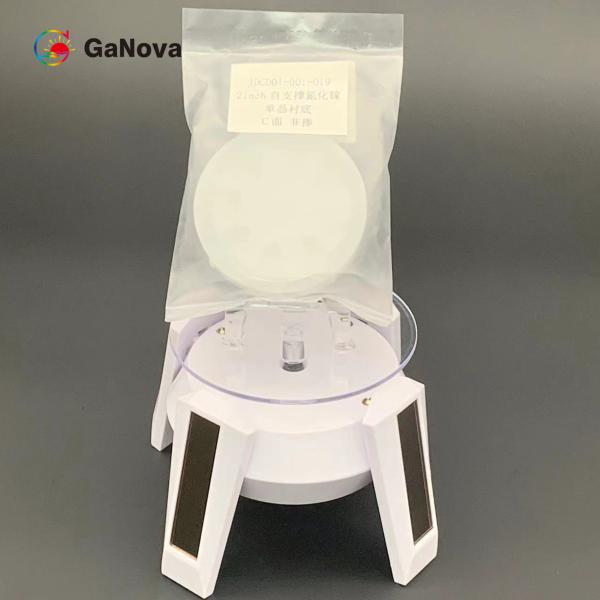

2-inch Free-standing U-GaN/SI-GaN Substrates
Dimensions :
50.8 ± 1mm
Thickness :
350 ± 25μm
Orientation flat :
(1-100) ± 0.5˚, 16 ±1mm
Secondary orientation flat :
(11-20) ± 3˚, 8 ± 1mm
Ga face surface roughness :
< 0.2nm (polished) or < 0.3nm (polished and surface treatment for epitaxy)
Description

2-inch Free-standing U-GaN/SI-GaN Substrates 50.8 ± 1 mm 350 ± 25 μm

2inch C-face Un-doped n-type free-standing GaN single crystal substrate Resistivity < 0.1 Ω·cm Power device/laser wafer


Overview
GaN Breakdown Field

A higher breakdown field means that gallium nitride is superior over silicon in high voltage circuits such as high-power products. Manufacturers and engineers can also use GaN in similar voltage applications while maintaining a significantly smaller footprint.

2-inch Free-standing U-GaN/SI-GaN Substrates

Excellent level (S)

Production level(A)

Research

level (B)

Dummy

level (C)

Free Standing U / SI GaN Epitaxial Wafer 50.8 mm 350 um

Note:

(1) Useable area: edge and macro defects exclusion

(2) 3 points: the miscut angles of positions (2, 4, 5) are 0.35 ± 0.15o
S-1 S-2 A-1 A-2
Dimensions 50.8 ± 1 mm
Thickness 350 ± 25 μm
Orientation flat (1-100) ± 0.5o, 16 ± 1 mm
Secondary orientation flat (11-20) ± 3o, 8 ± 1 mm
Resistivity (300K)

< 0.5 Ω·cm for N-type (Undoped; GaN-FS-C-U-C50)

or > 1 x 106 Ω·cm for Semi-insulating (Fe-doped; GaN-FS-C-SI-C50)
TTV ≤ 15 μm
BOW ≤ 20 μm ≤ 40 μm
Ga face surface roughness

< 0.2 nm (polished)

or < 0.3 nm (polished and surface treatment for epitaxy)
N face surface roughness

0.5 ~1.5 μm

option: 1~3 nm (fine ground); < 0.2 nm (polished)
Package Packaged in a cleanroom in single wafer container
Useable area > 90% >80% >70%
Dislocation density <9.9x105 cm-2 <3x106 cm-2 <9.9x105 cm-2 <3x106 cm-2 <3x106 cm-2
Orientation:C plane (0001) off angle toward M-axis

0.35 ± 0.15o

(3 points)

0.35 ± 0.15o

(3 points)

0.35 ± 0.15o

(3 points)
Macro defect density (hole) 0 cm-2 < 0.3 cm-2 < 1 cm-2
Max size of macro defects < 700 μm < 2000 μm < 4000 μm
