Specifications
Brand Name :
GaNova
Model Number :
JDCD10-001-002
Certification :
UKAS/ISO9001:2015
Place of Origin :
Suzhou China
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-4 week days
Packaging Details :
Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Conduct Type :
S-C-N
Dopant :
GaAs-Si
Orientation Angle :
OF Orientation :
EJ[0-1-1]±0.5°
OF Length (mm) :
17±1
IF Orientation :
EJ[0-11]±0.5°
Description

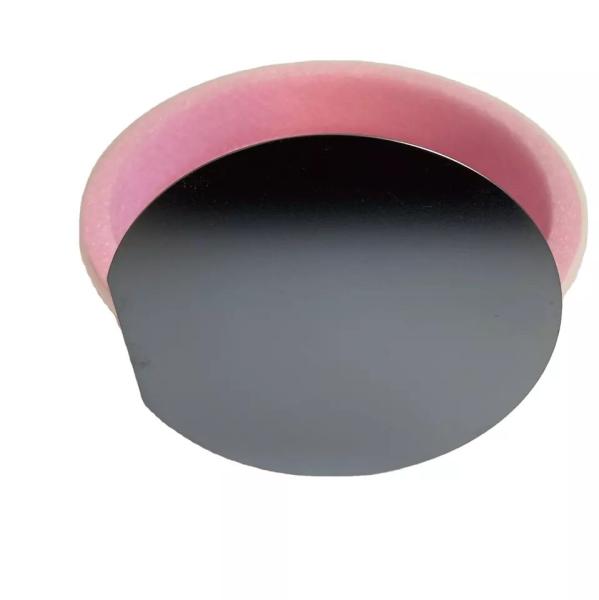

2inch GaAs (100) Undoped Substrates GaAs-Si Wafer 0.4E18~1E18

Overview

The RF devices produced with GaAs substrates are commonly used in wireless communication applications, including wireless networks (WLAN), mobile communication, 4G/5G base stations, satellite communications, and WiFi communications.

GaAs-Si Wafer

Growth Method

VGF
Conduct Type S-C-N
Dopant GaAs-Si
Orientation (100)15°±0.5° Off Toward<111>A
Orientation Angle
OF Orientation EJ[0-1-1]±0.5°
OF Length (mm) 17±1
IF Orientation EJ[0-11]±0.5°
IF Length(mm) 7±1
Diameter(mm) 50.8±0.2
CC(/c.c.) 0.4E18~1E18
Resistivity(ohm.cm) N/A
Mobility(cm2/v.s) ≥1000
EPD(/cm2) ≤5000
Thickness(um) 350±20
TTV(um) <10
TTR(um) <10
Bow(um) <15
Warp(um) <15
Surface Side1:Polished Side2:Etched
Packaging Cassette or single
