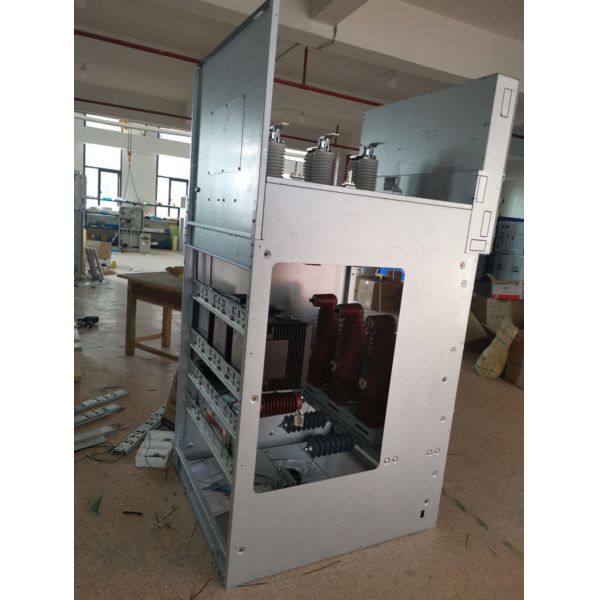

Three Phase High Voltage Disconnect Switch Electrical HV Isolator Switch GN19-12M
Three Phase High Voltage Disconnect Switch Electrical HV Isolator Switch GN19-12M
Specifications
Brand Name :
QIUPU
Model Number :
GN19-12CM/400-12.5
Certification :
IEC
Place of Origin :
WENZHOU
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000 PCS/Month
Delivery Time :
6 Days
Packaging Details :
WOODENS
Rate Voltage :
12kV
Rate Current :
400A
Hot Stable Current :
12.5kA/4S
Move Satble Current :
31.5kA/4S
Life :
2000
wide :
438mm
Description

GN19-12M High Indoor Voltage Isolation Switch with switcgear equipment

Description:

The Indoor GN19-12 high voltage isolation switch use for CS6-1 human operators . Humidity is 95% . The temperature is from -25 degree to 40 degree . Earthquake strength less than 8 degree .

rovide an electrical interval during the maintenance of electrical equipment and a visible break point for the safety of the maintenance personnel.


isolation switch operation: can not take rated load or heavy load operation, can not be divided, load current and short circuit current, but can take small load and empty circuit operation.

, general power supply operation: first the isolation switch, then the circuit breaker or load type switch; Disconnect circuit breaker or load type switch, then disconnect isolation switch.
The rated voltage, rated current, dynamic stable current, thermal stable current and so on shall be the same as other electrical equipment.

Item Technical data
Rated voltage (KV) 12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 75
humitity 95%
Life 2000

Three Phase High Voltage Disconnect Switch Electrical HV Isolator Switch GN19-12M

We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!
