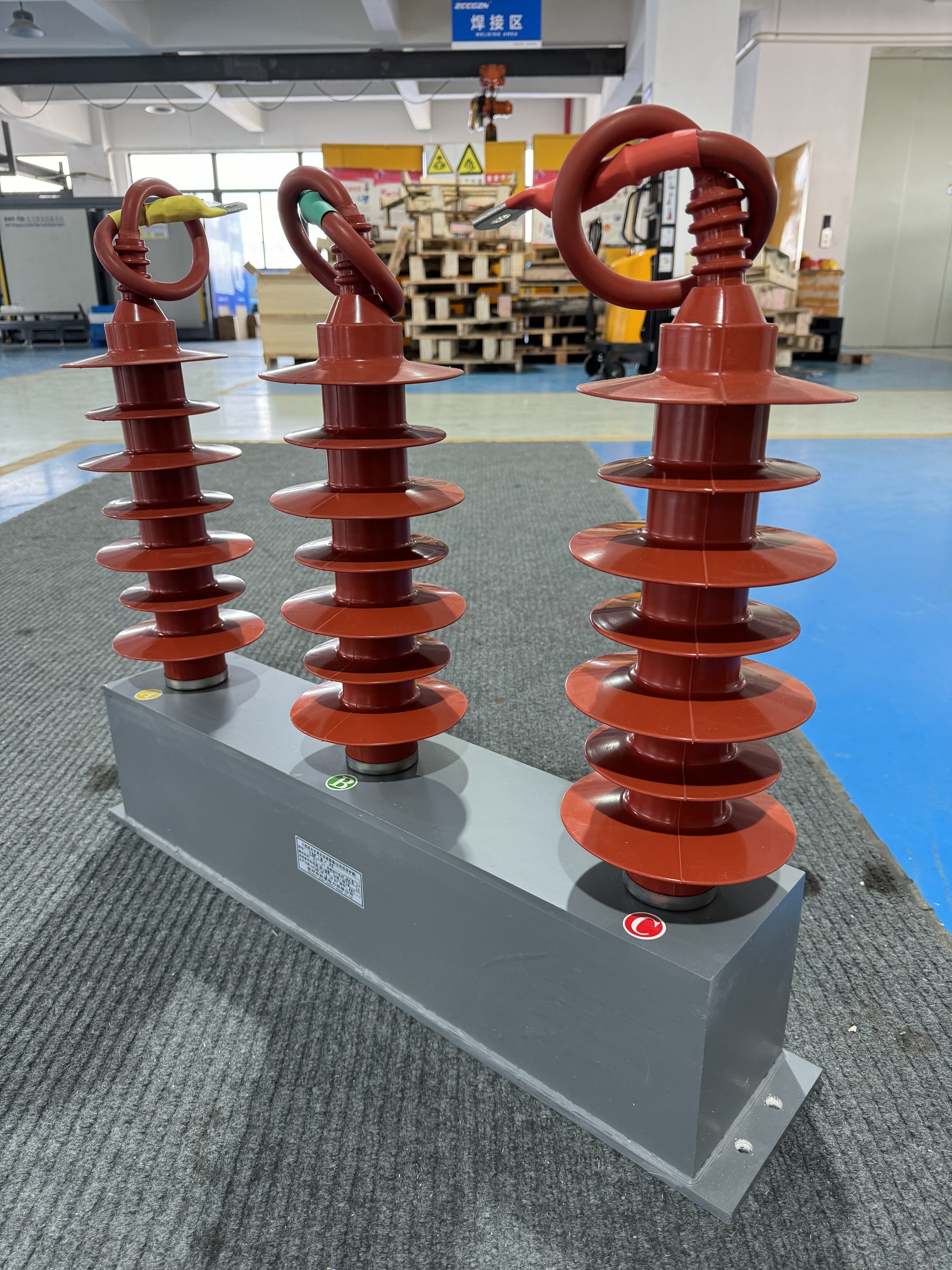

630A 35KV Station Type Zinc Oxide Lightning Arrester
630A 35KV Station Type Zinc Oxide Lightning Arrester
630A 35KV Station Type Zinc Oxide Lightning Arrester
630A 35KV Station Type Zinc Oxide Lightning Arrester
630A 35KV Station Type Zinc Oxide Lightning Arrester
630A 35KV Station Type Zinc Oxide Lightning Arrester
Specifications
Brand Name :
QIUPU/OEM
Model Number :
HY5WZ
Certification :
ISO
Place of Origin :
WENZHOU
MOQ :
51 PCS
Payment Terms :
T/T, Western Union
Supply Ability :
500000PCS/MONTH
Delivery Time :
7 Days
Packaging Details :
CARTONS
Rated Voltage :
35KV
usage :
Over-Voltage Protection
Color :
Red
Size :
As customs requests
Description

Station type function of protection lightning arrester device HY5WZ

Products Specification
MOA Tape

Sys R.V

MOA R.V

MCOV

DVC

(U1mA)

≤KV

1/10μs Steep Current Impulse

≤KV

8/20μs Lighting Current Impulse

≤KV

30/60μs Switching Current Impulse

(≤KV)

2msRectangular Current Impulse(2ms)

(A)

4/10μs High Current Impulse

(KA)
KV(r.m.s)
HY1.5W-0.28/1.3 0.22 0.28 0.24 0.6 1.3 75 25
HY1.5W-0.5/2.6 0.38 0.5 0.42 1.2 2.6 75 25
HY5WS-3.8/15* 3 3.8 2.0 7.5 17.3 15 12.8 75 40
HY5WS-5/15 5 4.0 8.0 17.3 15 12.8 100 65
HY5WS-7.6/30* 6 7.6 4.0 15.0 34.5 30 25.5 75 40
HY5WS-10/30 10 8.0 15.0 34.5 30 25.5 100 65
HY5WS-12.7/50* 10 12.7 6.6 25.0 57.5 50.0 38.5 75 40
HY5WS-12.7/50* 10 12.7 6.6 25.0 57.5 50.0 38.5 75 40
HY5WS-17/50 17 13.6 25.0 57.5 50.0 38.5 100 65
HY5WZ-5/13.5 3 5 4.0 7.5 15.5 13.5 11.5 150 65
HY5WZ-10/27 6 10 8.0 15.0 31.0 27 23.0 150 65
HY5WZ-17/45 10 17 13.6 24.0 51.5 45 38.3 150 65
HY5WZ-51/134 35 51 40.8 73.0 154 134 114 400 100
HY5WZ-54/134 35 54 43.2 77.0 154 134 114 400 100
HY5W-84/221 66 84 67.2 121 254 221 188 600 100
HY5W-90/235 66 90 72.5 130 270 235 201 600 100
HY5W-100/260 110 100 78.0 145 299 260 221 600 100
HY5W-108/281 110 108 84.0 157 323 281 239 600 100
HY10WZ-51/134 35 51 40.8 73.0 154 134 114 400 100
HY10WZ-54/134 35 54 43.2 77.0 154 134 114 400 100
HY10W-90/235 66 90 72.5 130 264 235 201 600 100
HY10W-96/250 110 96 76.8 140 280 250 212 600 100
HY10W-100/260 110 100 78.0 145 280 260 221 600 100
HY10W-108/281 110 108 84.0 157 314 281 239 600 100
HY10W-192/500 220 192 150 280 560 500 424 800 100
HY10W-200/520 220 200 156 292 582 520 442 800 100
HY10W-216/562 220 216 169 314 628 562 477 800 100

630A 35KV Station Type Zinc Oxide Lightning Arrester630A 35KV Station Type Zinc Oxide Lightning Arrester630A 35KV Station Type Zinc Oxide Lightning Arrester

Notice:

HY1.5W is designed for low voltage(220v 380v) power transmission equipment.

HY5WS is designed for medium voltage(3kv-10kv) power transmission equipment.

HY5WZ is designed for power stationsubstation high voltage power tramsmission equipment.

We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
