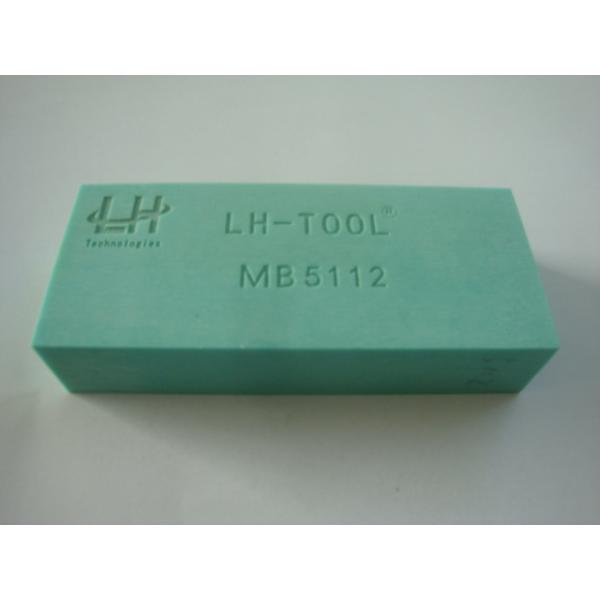

Rigid Low Dust Epoxy Tooling Block , High Density Urethane Board For Modelling
Rigid Low Dust Epoxy Tooling Block , High Density Urethane Board For Modelling
Specifications
Brand Name :
LH-tool®
Model Number :
MB5112
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Blue
Size :
750*500* 1000*500*
Density :
1.20
Hardness :
80-85
Thickness :
35mm 50mm 75mm 100mm
Description

Rigid Low Dust Epoxy Tooling Block , High Density Urethane Board For Modelling

Basic Info.

Density
1.26g/cm3
Thermal Expansivity
48
Hardness
83
Distortion Temperature
75
Trademark
LH
Specification
750*500*(35-100) / 1500*500*(35-100)
Origin
China (Mainland), GUANGZHOU

DESCRIPTION

LiHongTooling Board is especially noteworthy for its smooth and homogeneous surface combined with an even cell structure. It has a high edge stability, small thermal expansion coefficient, low dust formation when being machined, no known physiological effects and odeurs or smell. The range consists of 15 different types, varying in density between 600 - 1300 kg m3. There are 20 different dimensions to a maximum of 1500x500 mm and thicknesses of up to 100 mm are available. Larger blocks can be achieved when bonding several blocks to eachother.

PolyurethaneTooling board, the toughness, environmental protection, hardness, size stability, temperature tolerance, physical properties such as compressive strength, bending strength is quite good.

We are quietly supporting these industries, automobiles, high-speed rail, shipbuilding, aviation, ceramics, foundry industry and daily necessities manufacturing and related industrieschecking fixtures, mold, wind power and yacht . Maybe we are also suitable for your product, can try, may have unexpected harvest.

Description
Density:(g/cm³): ～ 1.20
Hardness(Shore D): ～ 82
Compressive Strength(N/mm²): ～ 90
Temperature Resistance(°C): ～ 80
Coefficient of Thermal Expansion: ～ 48
Flexural Strength(N/mm²): ～ 60.5
Tensile Strength(N/mm²): ～ 30.2
Dimension(mm)

(L*W)1000*500*50/75/100

(L*W)750*500*50/75/100


Rigid Low Dust Epoxy Tooling Block , High Density Urethane Board For Modelling

Rigid Low Dust Epoxy Tooling Block , High Density Urethane Board For Modelling
