Model Making High Density Model Board Polyurethane Tooling Board Grey Color
Model Making High Density Model Board Polyurethane Tooling Board Grey Color
Specifications
Brand Name :
LH-tool®
Model Number :
MB5120
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Grey
Size :
750*500* 1000*500*
Density :
1.25
Hardness :
80-85
Thickness :
35mm 50mm 75mm 100mm
Description

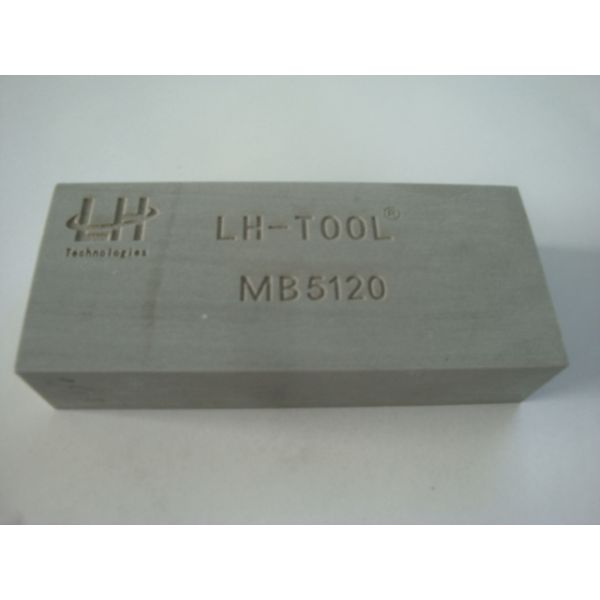

MB5120 Grey Polyurethane High Density Model Board Size 750mm - 500mm 1000mm-500mm

DESCRIPTION

Modeling boards are useful in numerous applications including patterns, master models, and presentation models.,foundry patterns, metal forming applications, jigs, and checking fixtures, yacht models,wind power and craft models...etc.

LihongTooling Board has been developed as a polyurethane based material for model and tool making and the manufacturing of checking fixtures and test units. Due to a special specification and a manufacturing method optimized over many years, it is possible to retain the product qualities even in the case of large board dimensions.

KEY PROPERTIES

1. Easy workability • High dimensional stability

2. Cost effective • Good compressive strength

3. High Temperature and chemical resistance • Large sheet sizes available

4. Smooth, non-porous surface finish • Low coefficient of thermal expansion

Description
Density:(g/cm³): ～ 1.25
Hardness(Shore D): ～ 84
Compressive Strength(N/mm²): ～ 92
Temperature Resistance(°C): ～ 80
Coefficient of Thermal Expansion: ～ 48
Flexural Strength(N/mm²): ～ 60.5
Tensile Strength(N/mm²): ～ 30.2
Dimension(mm)

(L*W*H)1000*500*50/75/100

(L*W*H)750*500*50/75/100
