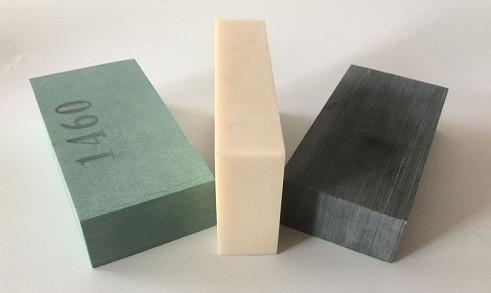

Multi Color 50mm Epoxy Tooling Board For Mold Manufacturing
Multi Color 50mm Epoxy Tooling Board For Mold Manufacturing
Specifications
Brand Name :
LH-tool®
Model Number :
LH-5166MB 470 1460
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Multi color
Size :
1500*500* 1000*500*
Density :
1.46-1.7
Hardness :
82-90
Thickness :
35mm 50mm 75mm 100mm-300mm
Description

High density, multi-color smooth surface processing plate suitable for mold manufacturing

In order to meet the needs of a variety of tool applications, we provide epoxy tool blocks and boards showing a range of physical properties and performance characteristics, including:

CNC can be high speed steel and carbide tool processing

Excellent dimensional stability to prevent tool deformation during high pressure forming/manufacturing

Extraordinary smooth surface finish, almost eliminating the need for hand polishing tools

Low density

Good compressive strength

Full thickness range; The board is 24 inches in size. Wide x 60 inches long x 2, 3 and 6 inches. thick

Color and performance matching adhesive and repair paste

Modeling, Styling & Working Boards stand for high mechanical properties and continuous quality. The materials are shaped manually or machined easily using the correct tools.

Key Properties

  • Easily shaped and machined
  • Low coefficient of thermal expansion
  • Good dimensional stability
  • Low coefficient of thermal expansion
  • Good dimensional stability
  • Good compressive and flexural strength

Applications

master models, cubing models, patterns

pattern plates and core boxes, machined negatives and positives,

models, molds and tools, hammer forms and jigs

Product Color Density, lb./ft.3 (g/cm3) Hardness, Shore D CTE, in./in./°F (cm/cm/°C) Heat Distortion Temperature, °F (°C) Compression Strength, psi (MPa) Description
LH-470 grey 1.7 87 (45x10-6) 100-120 45 High temperature polyurethane syntactic with excellent surface finish
LH5166 beige 1.67 86 (46x10-6) 75-80 80 high temperature polyurethane syntactic with excellent surface finish
LH-1460 Green 1.46 84 (45x10-6) 80-90 80 High-strength polyurethane

LH-TOOL® Key Properties Applications


WB-1460
  • Dense surface structure
  • Very easily machined
  • Good dimensional stability
  • Good abrasion resistance and impact strength
  • Can be polished
 pattern plates and core boxes, machined negatives and positives, models, molds and tools, hammer forms and jigs
MB-5166
  • Dense surface
  • Easily machined
  • Low coefficient of thermal expansion
  • Very good compressive strength
 metal forming tools, jigs and fixtures
MB-470
  • Very dense surface structure, can be polished
  • Easily machined
  • Good temperature resistance
  • High abrasion resistance
 metal forming tools, vacuum forming molds, jigs, foam molds, rapid prototyping molds
