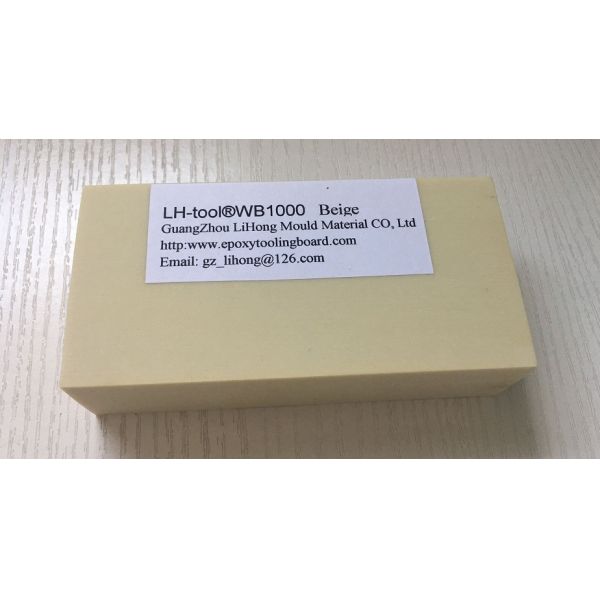

Beige Color 1.0 Density Polyurethane Model Board Hardness 75-78D
Beige Color 1.0 Density Polyurethane Model Board Hardness 75-78D
Specifications
Brand Name :
LH-tool®
Model Number :
WB1000
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Beige
Size :
750*500* 1000*500* 1500x500
Density :
1.0
Hardness :
75-80
Thickness :
35mm 50mm 75mm 100mm
Description

1.0 Density Epoxy Tooling Board For Jigs , Fixtures Molds Tooling jigs

Introduction

  • Tooling boards are useful for creating durable, reusable tools, prototypes, models and patterns with a CNC machine for use in the motor sport and automotive industries. Selecting the most fit for purpose tooling board will reduce residual particles for easy cleanup, have excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.
  • Tooling boards, also known as modeling boards and machinable slabs, are typically made from filled polyurethane and they exhibit very high dimensional stability and low density. Tooling boards take the place of wood and metal in master models, prototype tooling, patterns, molds, jigs and fixtures. They are lighter and more economical than steel and aluminum. They also do not suffer from the grain and poor dimensional stability of wood.
  • we are also specialists in dimensional checking fixtures to control the manufacturing process of all types of parts of the industrial sector, more particularly the automotive sector.
    All our production process - design, manufacture and certification - is done in-house, to control it perfectly.
  • Modeling boards are useful in numerous applications including patterns, master models, and presentation models.,foundry patterns, metal forming applications, jigs, and checking fixtures, yacht models,wind power and craft models...etc.
  • High temperature cnc machining epoxy casting resin tooling board
Description
Density:(g/cm³): ISO1183-1:2012 1.0
Hardness(Shore D): ISO868-2003 75-80
Compressive Strength(N/mm²): ISO604-2002 45-50
Temperature Resistance(°C): ISO75-1:2013 70-80
Coefficient of Thermal Expansion: ISO11359-1:2014 50-55
Flexural Strength(N/mm²): ISO178-2010 45-50
Dimension(mm)

(L*W)1500*500*50/75/100

(L*W)750*500*50/75/100

KEY PROPERTIES

1.Very easily machined

2.Low coefficient of thermal expansion

3.Good edge strength and abrasion resistance

USE

1.Tooling jigs

2.Fixtures

Beige Color 1.0 Density Polyurethane Model Board Hardness 75-78D
