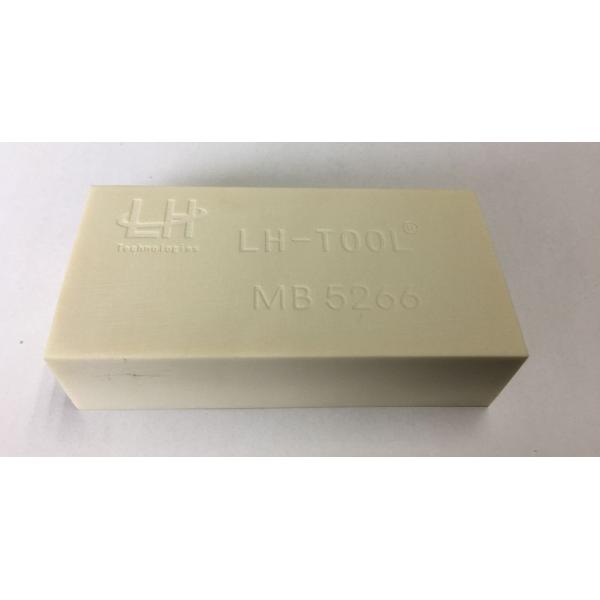

Chemical Resistance Epoxy Tooling Board For Jigs , Fixtures Vacuum Forming Molds
Chemical Resistance Epoxy Tooling Board For Jigs , Fixtures Vacuum Forming Molds
Specifications
Brand Name :
LH-tool®
Model Number :
MB5266
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Gream
Size :
750*500* 1000*500*
Density :
1.70
Hardness :
86-90
Thickness :
35mm 50mm 75mm 100mm-200mm
Description

MB5266 Gream Polyurethane Tooling Board Size 750mm - 500mm 1000mm-500mm

High temperature resistant High Density Model Board , Epoxy Tooling Block

DESCRIPTION

Tooling boards are useful for creating durable, reusable tools, prototypes, models and patterns with a CNC machine for use in the motor sport and automotive industries. Selecting the most fit for purpose tooling board will reduce residual particles for easy cleanup, have excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.

Description
Density:(g/cm³): ～ 1.70
Hardness(Shore D): ～ 90
Compressive Strength(N/mm²): ～ 120
Temperature Resistance(°C): ～ 120-200
Coefficient of Thermal Expansion: ～ 44
Flexural Strength(N/mm²): ～ 90
Tensile Strength(N/mm²): ～ 48
Dimension(mm)

(L*W)1000*500*50/75/100

(L*W)750*500*50/75/100

KEY PROPERTIES

1. Easy workability • High dimensional stability

2. Cost effective • Good compressive strength

3. High Temperature and chemical resistance • Large sheet sizes available

4. Smooth, non-porous surface finish • Low coefficient of thermal expansion

USES

1. Design studies

2. CNC program proving/testing.

3. Building Landscapes/Features in architectural and scenario models

4. Forming a mould tool for prototyping short runs of composite parts.

5. Use for jigs, fixtures, foundry patterns, core boxes.vacuum forming molds and all kinds of models.

Chemical Resistance Epoxy Tooling Board For Jigs , Fixtures Vacuum Forming Molds
