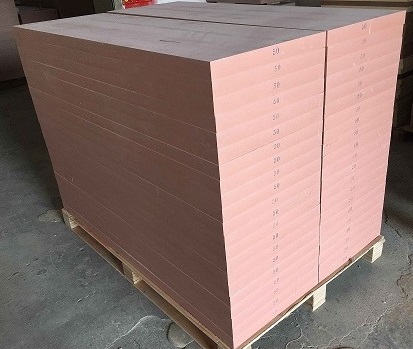

35mm #651 Polyurethane Tooling Blocks For High Pressure Molding
35mm #651 Polyurethane Tooling Blocks For High Pressure Molding
Specifications
Brand Name :
LH-tool®
Model Number :
LH651 Brown
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
brown
Size :
750*500* 1000*500* 1500*500^
Density :
0.70
Hardness :
60-65
Thickness :
35mm 50mm 75mm 100mm
Description

35mm #651 Polyurethane Tooling Blocks For High Pressure Molding

Quick Details
Place of Origin:
Guangzhou, China, (mainland)
Brand Name:
Lihong
Model Number:
Epoxy tooling wood
Material:
resin tooling board
Thickness:
30mm-150mm, 30mm-150mm
Size:
1500*500mm,700*450mm, 1500*500mm,700*450mm,690mm*440mm
Product Name:
Resin tooling board used for mould on CNC machine
Color:
brown,
Hardness:
55-65 degree
Density:
0.61g/cm3--0.70g/cm3
MOQ:
5 sheets

  • LOW CTE

    For improved dimensional stability under high temperature. Other boards, such as epoxy, often can’t withstand high temperatures (beyond +120°C) and distortions may occur. Tools made with BLACK CORINTHO® boards expand and contract under high temperature behaving as carbon fiber does.

  • HIGH CONDUCTIVITY

    High conductivity allows a more uniform heating of complex or big tools and quicker autoclave processing in relationship to other materials.

  • EXCELLENT MACHINABILITY

    BLACK CORINTHO® is a non abrasive tooling board that machines very well to guarantee a high degree of precision.

  • LIGHT WEIGHT AND EASY WORKABILITY

    Tools made with BLACK CORINTHO® are typically lighter in weight than metal tools and are less labor-intensive and time consuming to fabricate. They are the ideal solution for prototypes, one-shot or a small series of tools.

Description
Density:(g/cm³): ～ISO1183-1:2012 0.70
Hardness(Shore D): ～ISO868:2003 60-65
Compressive Strength(N/mm²): ～ISO604:2002 50-60
Temperature Resistance(°C): ～ISO075-1-2013 75-80
Coefficient of Thermal Expansion: ～ISO11359-1-2014 45-50
Flexural Strength(N/mm²): ～ISO178-2010 75-80
Dimension(mm)

(L*W)1000*500*50/75/100

(L*W)1500*500*50/75/100

KEY PROPERTIES

1. Good styrene resistance

2. High compressive modulus

3. Good amine resistance

4. Very good compressive strength

5. Processing and No dust

6) Good abrasion resistance

7) Resistant to dry ice cleaning

8) Low coefficient of thermal expansion

USE

1. Checking fixtures for metal par

2. Models and molds for polyester applications

3. Models and molds for composites applications

4. Hammer tools

5. Vacuum forming tools

6. Foundry models

7. Foundry pattern plates and core boxes

8. Car fixture

35mm #651 Polyurethane Tooling Blocks For High Pressure Molding
