Short Description:

*Our Advantage, We can Produce Large Rubber Products, So, If your drawing is big enough, Just contact me*

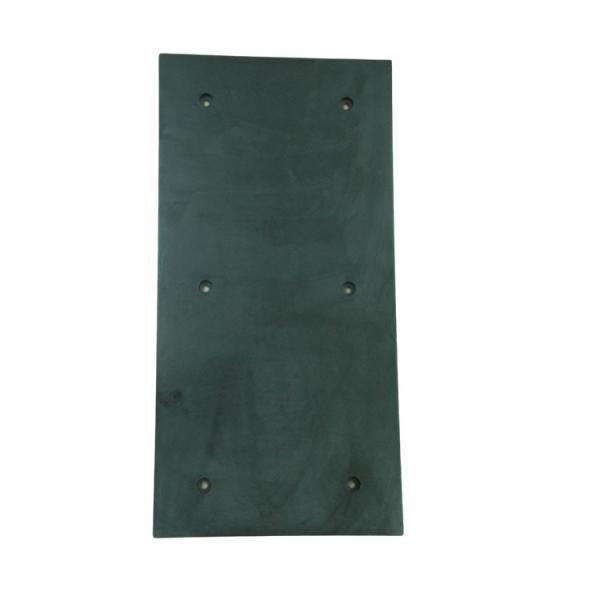

1000*500*25mm Or Customized Rubber Anti-Slip Mat Embedded With 5 Mm/4mm Steel Plate

Rubber mats for Anti Slip and Drainage Cover - Product features:

• Material: Cast iron+SBR
• Measures: 1000*500*25mm
• Thickness: 25mm
• Sprayed PU surface, soft and comfortable to touch.
• Shock absorption – the rubber stud profile on the underside absorbs shock, reducing stress on joints and tendons.
• Low maintenance – easy to clean and wash.

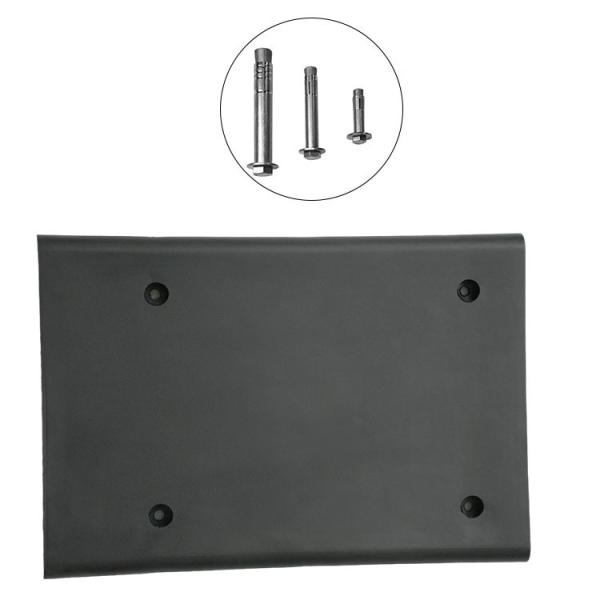

• Easy installation - No glue or fixings required.
• Hard-wearing solid rubber mats.
• It can be turned over when the top surface wears.
• Built-in iron plate, super strong load-bearing

1. Built-in iron plate, super strong load-bearing:

2. Durable and crack-resistant

Racecourse channel rubber drain covers are a proven alternative to traditional concrete drains with UV inhibitors that are used to prevent fading and cracking from the sun, chemical-resistant, rustproof maintenance-free, lightweight, and easy to install. Rubber surfaces can protect horses as well.

3. Rapid Drainage:

The drainage system installed under a horse track plays a critical role in maintaining a consistent and safe racing surface. Racecourse facilities present challenges on how to drain the track in a timely and efficient manner. If a horse track's drainage infrastructure doesn't efficiently remove water, the track can become dangerous. If track areas begin to have pooled water, the chances of injury-causing accidents significantly increase.

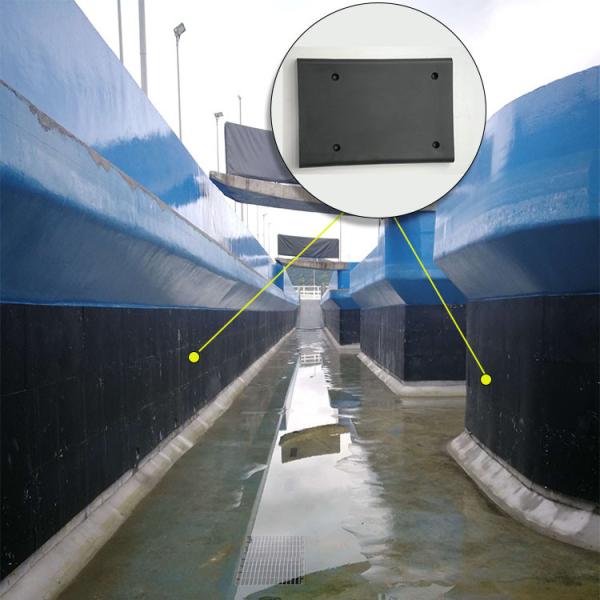

4. Wide range of applications:

Can be used in the entire drainage channel of a racetrack, such as the horse swimming area, access area, footbath area, and horse grooming area.

5. sample room and have a stock:

We have ready-made molds and mature production experience to give you the best quality and maximize your cost savings.

Specifications of Rubber Mat
1. TENSILE STRENGTH:≥13Mpa
2. BREAKING ELONGATION:≥ 300%
3.HARDNESS(SHORE A): 65 ±5 degrees (70 *C x 22h, COMPRESSIONRATE: 25 %)
4.ABRASION LOSS:≤1.0cm³ / 1.61km
5. BONDING STRENGTH BETWEEN RUBBER MAT AND METAL PLATE ≥5Mpa
6. ACID AND ALKALINE RESISTANCE: ≥ 70%
(20% CONCENTRATED SULFURIC ACID, 20% SODIUM HYDROXIDE, 24HOURS /
ROOM TEMPERATURE)
7.AGING WITH HoT AIR (70 °Cx .96h)TENSILE STRENGTH ≤ DECREASE 20%
BREAKING ELONGATION ≤ DECREASE 20% ,
HARDNESS (SHORE A): INCREASE OF 8 DEGREES MAXIMUM
