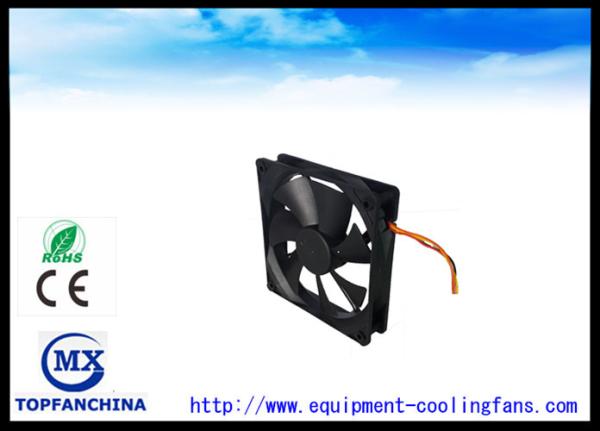

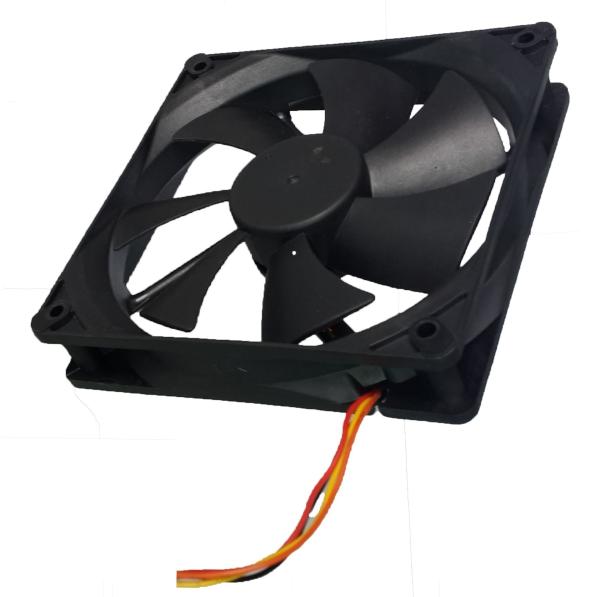

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM
120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM
120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM
120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX12025ABL1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12v/24v/48v
Speed :
1700-3000rpm
Max air Flow :
39.2-74CFM
Color :
Black
Bearing Type :
Ball Bearing/Sleeve Bearing
Material :
Plastic
Expected Life :
50,000-30,000 hours(40C)
Packing :
200pcs/ctn
Description

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

120×120×25mm 12V DC Computer Case Cooling Fan With PWM , low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

  • Voltage:12V , 24V, 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
  • Opetation Temperature:-10℃～70℃(Ordinary humidity)
  • Storage Temperature:-40℃～70℃(Ordinary humidity)
  • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)

Specification
Item Unit Specification Condition
Dimension mm 120*120*25 L*W*T
Bearing System -- Ball ---
Rated Voltage VDC 12.0 ---
Operating Voltage Range VDC 10-13.8 At 25℃
Start-up Voltage VDC 6V At 25℃
Rated Current A 0.1±0.02 At Rate Voltage
Label Current A --- ---
Rated Power W 1.2 At Rate Voltage
Rated Speed RPM 1700±10% At Rate Voltage
Air Flow CFM 39.2 Air Pressure=0
Static Air Pressure mmH2O 2.3 Air Flow=0
Noise Level dBA 27.5 Rated Speed
Motor Protection -- Impedance
Other Features
Auto Restart Yes Application
Tachometer Output No Not Application
Lock Rotor Alarm No Not Application
Thermal Control No Not Application
PWM Control Yes Application
IP Grade No Not Application
Connection Lead Type
Lead Wire UL1007 24AWG * 360mm
Connector 2.54 3PIN
Life Expectancy Hours 50000 Environment temperature At 25℃
Net Weight Gram 164g

PWM SIGNAL:

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

Dimensions ( Unit:mm ) and Fan Perfprmance Curve :


120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

Usage:

120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

Certification:


120 × 120 × 25 mm Computer Case Cooling Fan / 4.7 Inch Axial Cooler Fan With PWM

How to Select a right cooling fan?

A:Where are you used? Application for what

What's size limitation do you have?

What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

What's power or CFM airflow required?

It will help us to give you good idea to quote
