172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler
172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler
172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler
172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX17251ABU2
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$4.0/pcs to us$8.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment

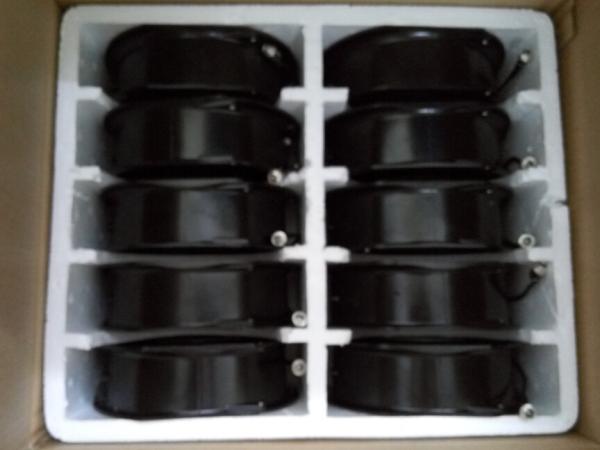

Packaging Details :
carton box with Foam
Material :
Aluminum Frame and Plastic Impeller
Speed :
3000rpm
Max air Flow :
220CFM
Expected Life :
50,000hours(40C)
Current :
0.60A
Voltage :
12V, 24V, 48V
Packaging :
20pcs/carton
Weight :
740g
Description

172mm X 150mm X 51mm DC Axial Fan Waterproof IP68 / DC Brushless Cooler Axial Fan

1. Purpose:

172mm X 150mm X 51mm 24V DC Waterproof Axial Fan, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

2. STANDARD ENVIRONMENTAL CONDITIONS

Temperature 25℃ and relative humidity 60％shall be standard if no doubt arises in the judgement,however,it is permitted that rests are conducted in the environment of temperature 5-35℃ ,relative humidity 45-85％

3.STRUCTURE AND FORM

3-1

Structure

axial motor fan

3-2

Housing

METAL-AL

3-3

Blade

BLACK PBT (94V-0)

3-4

Bearing

2 Ball Bearing

3-5

Lead

UL1007/20AWG/L=200MM

3-6

■AUTO-RESTART □FG □RD □PWM □TEMPERATURE CONTROL

4. RATED AND OPERATING CONDITLONS

4-1

Rated voltage (VDC)

24.0

4-2

Rated current (A)

0.60A±10％

4-3

Startup voltage (VDC)

12.0

4-4

Rated input power (W)

12.48W±10％

4-5

Operatingvoltage(VDC)

21.6~26.4

4-6

Operating temperarure (℃)

-10℃--+70℃

4-7

Storage temperature (℃)

-40℃--+80℃

4-8

Speed (RPM)

2900±10％

5. Detailed Product Description:

  • Voltage:12V , 24V, 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1 Min
  • Opetation Temperature:-10℃～70℃(Ordinary humidity)
  • Storage Temperature:-40℃～70℃(Ordinary humidity)
  • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)


A: Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX17251ABU1 B 12 7.0-13.8 3.00 36.00 4000 305.29 8.65 1.14 283.51 67.00 740.00
MX17251ABH1 B 12 7.0-13.8 2.00 24.00 3500 257.88 7.30 0.71 176.81 59.00 740.00
MX17251ABM1 B 12 7.0-13.8 1.50 18.00 3000 220.85 6.25 0.52 128.57 51.00 740.00
MX17251ABL1 B 12 7.0-13.8 1.00 12.00 2500 185.24 5.25 0.37 92.77 44.00 740.00
MX17251ABU2 B 24 14.0-27.6 1.50 36.00 4000 305.29 8.65 1.14 283.51 67.00 740.00
MX17251ABH2 B 24 14.0-27.6 1.00 24.00 3500 257.88 7.30 0.71 176.81 59.00 740.00
MX17251ABM2 B 24 14.0-27.6 0.70 16.80 3000 220.85 6.25 0.52 128.57 51.00 740.00
MX17251ABL2 B 24 14.0-27.6 0.50 12.00 2500 185.24 5.25 0.37 92.77 44.00 740.00
MX17251ABU4 B 48 28.0-56.0 0.80 38.40 4000 305.29 8.65 1.14 283.51 67.00 740.00
MX17251ABH4 B 48 28.0-56.0 0.60 28.80 3500 257.88 7.30 0.71 176.81 59.00 740.00
MX17251ABM4 B 48 28.0-56.0 0.50 24.00 3000 220.85 6.26 0.52 128.57 51.00 740.00
MX17251ABL4 B 48 28.0-56.0 0.40 19.20 2500 185.24 5.25 0.37 82.77 44.00 740.00

B: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



C. (Main Materials, Parts Specification)

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No


Dimensions (Unit:mm)

172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler

172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler


172mm X 150mm X 51mm DC Axial Fans Waterproof IP68 Brushless Cooler

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

How to Select a right cooling fan?


A: Where are you used? Application for what?
B: What's size limitation do you have?
C: What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?
D: What's power or CFM airflow required?
It will help us to give you good idea to quote
