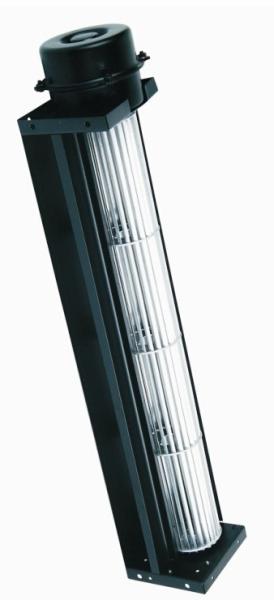

523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX60450CFWH23
Certification :
CE/ROHS/SGS
Place of Origin :
China
MOQ :
100pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Voltage :
220-240V
Size :
523mm × 98mm × 91mm
Bearing type :
Ball Bearing
Frame Material :
Aluminum
Blade Material :
Steel
Speed :
2400CFM
Frequency :
50/60Hz
Operation Temp :
-20 to 60 Degree
Description

523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower

1. Purpose:

This blower are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

2. Expeceed Life:

Ball Bearing 50,000 hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1

RATED VOLTAGE

VOLTS

V

220-240VAC

2

OPERATION VOLTAGE

VOLTS

V

160-242

3

FREQUENCY

Hz

Hz

50/60

4

NPUT CURRENT

AMP

A

0.28/0.35A±10%

AT RATED VOLTAGE

5

INPUT POWER

WATTS

W

28W ±10%

AT RATED VOLTAGE

6

ROTATION SPEED

RPM

RPM

2400±10%

7

ACOUSTICAL NOISE(AVG)

dB(A)

dB(A)

≤55

DETAILS SEE ATTACHED PAGE.

8

MAX .AIR-FLOW

M³/H

Q

440

TWO-CHAMBER METHODS

DEAILS SEE ATTACHED PAGE.

9

MAX . AIR-PRESSURE

mmH2O

P

3.1

TWO-CHAMBER METHODS

DEAILS SEE ATTACHED PAGE.

10

INSULATION

RESISTANCE

MEG.

OHM

MΩ

＞20 MΩ

BETWEEN FRAME AND

TERMINAL

11

DIELECTRIC STRENGTH

1800V,3S,1MA

BETWEEN FRAME AND

TERMINAL.

12

ROTARY DIRECTION

CC W

13

INSULATION CLASS

CLASS E

14

LIFE EXPECTANC

15000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5: Dimensions (Unit:mm) and Specifications:


523mm × 98mm × 91mm Industrial Ventilation Fan / Cabinet Centrifugal Blower
