SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​
SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​
SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​
SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​
Specifications
Brand Name :
San Ace /ODM/OEM
Model Number :
9GV1224P4G01
Certification :
CE/ROHS/UL/SGS
Place of Origin :
Japan
MOQ :
500pcs
Price :
us$2pcs to us$6.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Size :
120 ×120 × 25mm
Speed :
5100rpm
Voltage :
24
Bearing Type :
Ball Bearing/Sleeve Bearing
Material :
Plastic
Air flow :
171cfm
Description

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm , low noise, high Speed and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, fridge, Washing Machine, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

General Specification :

Material:
 Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
Expected life : 40000hours at 60℃
Motor protection function : FLocked rotor burnout protection, Reverse polarity protection
Dielectric strength : 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
Insulation resistance: 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
Storage temperature : 30 to +70˚C (Non-condensing)
Mass26

280 g

Specification:

The models listed below have ribs and pulse sensors with PWM control function. For models without ribs, append "1" to the end of model numbers.

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

* PWM frequency: 25 kHz .Fan does not rotate when PWM duty cycle is 0%.

The models listed below have ribs and pulse sensors. For models without ribs, append "1" to the end of model numbers

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

Other sensor specifcations are available as options.

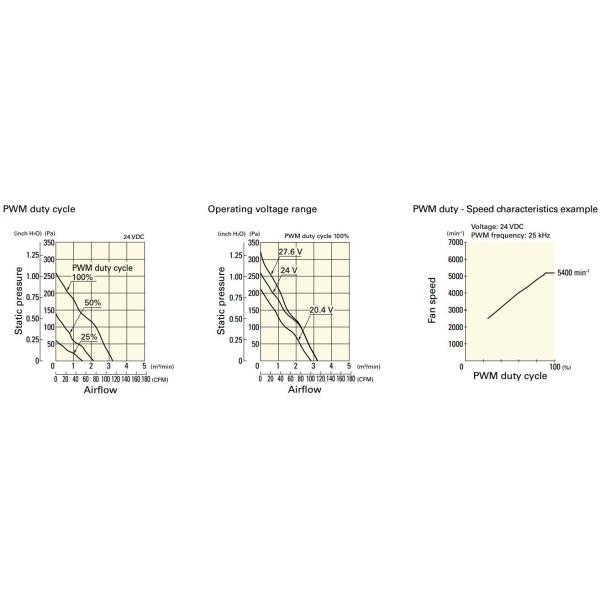

Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

9GA1212P4G001 With pulse sensor with PWM control function

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

9GA1212P4S001 With pulse sensor with PWM control function

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

9GA1224P4G001 With pulse sensor with PWM control function

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

9GA1224P4S001 With pulse sensor with PWM control function

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

9GA1248P4G001 With pulse sensor with PWM control function

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

Dimensions (unit: mm) (With pulse sensor with PWM control function)

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​

Reference Dimensions of Mounting Holes and Vent Opening (unit: mm)

SANYO DENKI Cooling Fan For Fridge 120mm ×120mm × 25mm / Washing Machine Fan​
