12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
12V DC Air Conditioner Industrial Centrifugal Fans , Centrifugal Blower Fan 6W 5000 RPM For Air Purifier
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX7530GB ( S ) H1
Certification :
CE, ROHS
Place of Origin :
Guangzhou , China
MOQ :
100pcs
Price :
us$1 / pcs to us$3.00 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600,000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
blower fan, centrifugal blower, centrifugal fan, dc fan12V 24V, dc motor fan, dc blower fan, blower motor, blower motor fan, dc brushless fan, dc 97*97*33mm,small fan, high flow fan, motor fan, air cleaner fan, air filter
Rate Voltage :
5v /12v / 24v / 48v f
Current :
1.4A
Speed :
4500RMP
Bearing type :
sleeve / ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
29.76CFM
Weight :
164g
Frame and impeller material :
Plastic (94V - 0) , PBT
Max static pressure :
11inch-h2o
Description

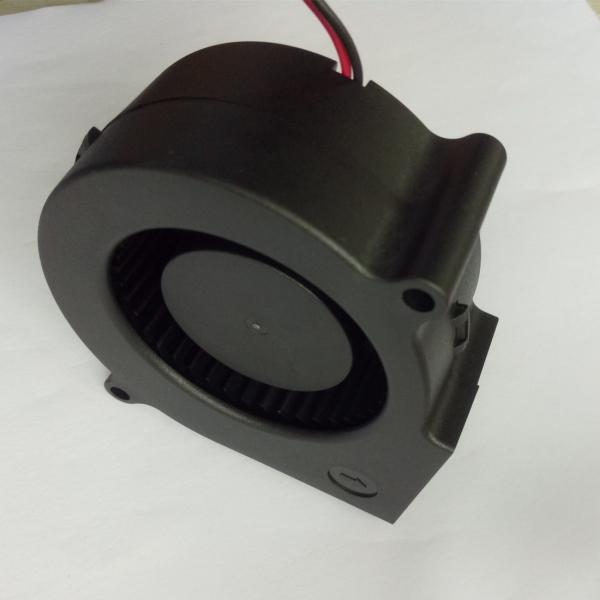

12v dc air conditioner centrifugal fan 6W 5000 RPM 75 x 75 x 30mm small blower fan for air purifier


Specification of 75x75x30mm blower fan:

1. Category Centrifugal Fan / Blower Fan
2. Size and Net weight 75x75x30mm, 75mm, 7.5cm, 2.95Inch, 2.95" , 69g
3. Bearing Type Dual-Ball Bearing
4. Frame and Blade Material Plastic ( UL94V-0) PET
5. Operation Voltage 4.5V~27.6V
6. Rate voltage 5v 12v 24v
7. Lead Wire 300±10mm,AWG#26 UL1007 (+)Red (-)Black in normal
8. Motor 4 Poles Brushless DC Motor
9. Motor Protection Impedance Protected,Reverse Polarity Protected,Thermal Protected (Auto Restart)
10. Insulation Class A
11. Insulation Resistance Above 100MΩ, DC500V (Between Lead Wire and Frame)
12. Waterproof level IP55~IP68
13. Life Expectancy

50000hrs at 25 degree (dual-ball)

30000hrs at 25 degree(sleeve)
14. Operating Temperature -10℃~70℃ (35%~85%RH)
15. Storage Temperature -40℃~70℃ (35%~85%RH)
16. Available Function and Protection Grade FG tachometer, RD, PWM speed control, IP55-IP68, Thermal Control, Auto-Restart
17. Application
1.For homeappliance, air purifier, air fresher, toy, refrigerator,freezer,humidifier,toy,computer, GPU, dishwasher,game console.
2.For car, car seat
3.microwave oven,microwave soldering rework station, desoldering station,SMD rework station, sweeper,Robot Sweeper,sweeper,Robot Sweeper
4. 3D printer, mini-projector, toy,electric equipment,Medical device, projector
