DC Exhaust Computer Case Cooling Fans Waterproof 87.6CFM Max Air Flow 2500rpm Speed
DC Exhaust Computer Case Cooling Fans Waterproof 87.6CFM Max Air Flow 2500rpm Speed
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX12018ABH1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12v/24v/48v
Speed :
2500rpm
Max air Flow :
87.6CFM
Bearing Type :
Ball Bearing/Sleeve Bearing
Material :
Plastic
Expected Life :
80,000-30,000 hours(40C)
Description

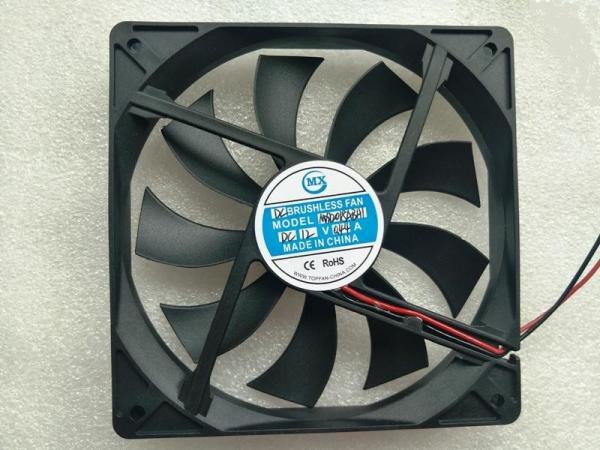

120 × 120 × 18 mm Computer Cooling Fan / DC Exhaust Cooling Fan / Waterproof Fan

DC 120×120×18mm 120 × 120 × 18 mm Computer Case Cooling Fan , low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

  • Voltage:12V , 24V, 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
  • Opetation Temperature:-10℃～70℃(Ordinary humidity)
  • Storage Temperature:-40℃～70℃(Ordinary humidity)
  • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)
Specification
Item Unit Specification Condition
Dimension mm 120*120*18 L*W*T
Bearing System -- Ball ---
Rated Voltage VDC 12 ---
Operating Voltage Range VDC 10V-13.8V At 25℃
Start-up Voltage VDC 6V At 25℃
Rated Current A 0.44±0.03 At Rate Voltage
Label Current A --- ---
Rated Power W 6.72 At Rate Voltage
Rated Speed RPM 2500±10% At Rate Voltage
Air Flow CFM 87.6 Air Pressure=0
Static Air Pressure mmH2O 2.91 Air Flow=0
Noise Level dBA 38.4 Rated Speed
Motor Protection Polarity Protection
Other Features
Locked-rotor protection Rated voltage blocking 2 to 3 seconds, the power, reduce the internal temperature rise
Auto Restart Yes Application
Tachometer Output No Not Application
Lock Rotor Alarm No Not Application
Thermal Control No Not Application
PWM Control No Not Application
IP Grade IP55 Application
Directing of rotation anticlockwise
Lead Wire UL1007 24AWG * 360MM
Connector NO
Life Expectancy Hours 50000 At 25℃
Net Weight Gram 29

Dimensions ( Unit:mm ) and Fan Perfprmance Curve :


DC Exhaust Computer Case Cooling Fans Waterproof 87.6CFM Max Air Flow 2500rpm Speed

Accoustic Sound Level Test Descriptions:

At rate voltage in background proof room Background proof room background Noise:17dB(A)

DC Exhaust Computer Case Cooling Fans Waterproof 87.6CFM Max Air Flow 2500rpm Speed

Noise is measured rated voItage in free air in anechoic chamber with B&K sound IeveI meter with microphone at a distance of one meter from the fan intake.The background noise is 17Db(A) max.

Certification:


DC Exhaust Computer Case Cooling Fans Waterproof 87.6CFM Max Air Flow 2500rpm Speed

How to Select a right cooling fan?

A:Where are you used? Application for what

What's size limitation do you have?

What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

What's power or CFM airflow required?

It will help us to give you good idea to quote
