San Ace 120 × 120 × 38 mm High Speed DC Axial Fan / Equipment Cooling Fan

San Ace 120 × 120 × 38 mm High Speed DC Axial Fan, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

• Frame and Impeller: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1).
• Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage).
• Motor protection function : Locked rotor burnout protection, Reverse polarity protection.
• Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame).
• Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame).
• Sound pressure level (SPL): At 1 m away from the air inlet.
• Storage temperature : -30 to +70˚C (Non-condensing).
• Lead wire : Red Black or Blue Sensor Yellow.
• Mass : 360 g

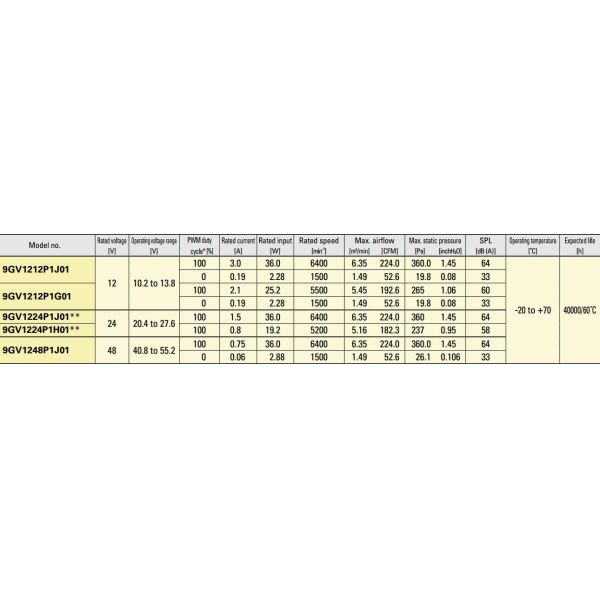

Specifcations

The models listed below have ribs and pulse sensors with PWM control function. For models without ribs, append "1" to the end of model numbers

* PWM frequency: 25 kHz ** Fan does not rotate when PWM duty cycle is 0%
Other sensor specifcations are available as options. Refer to the index (p. 555)

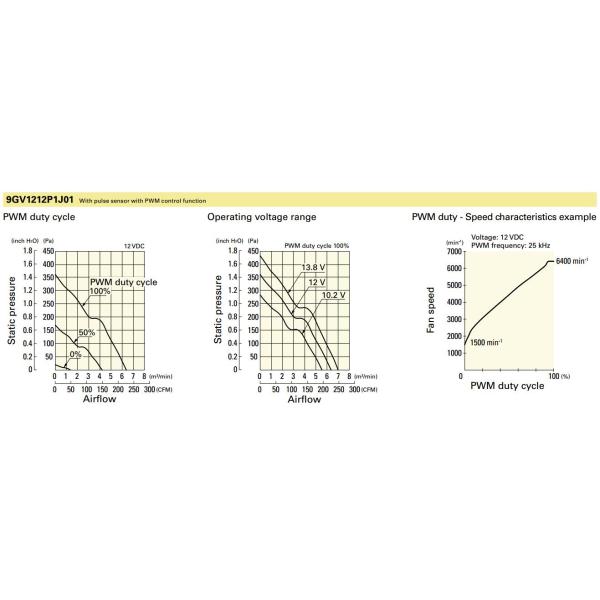

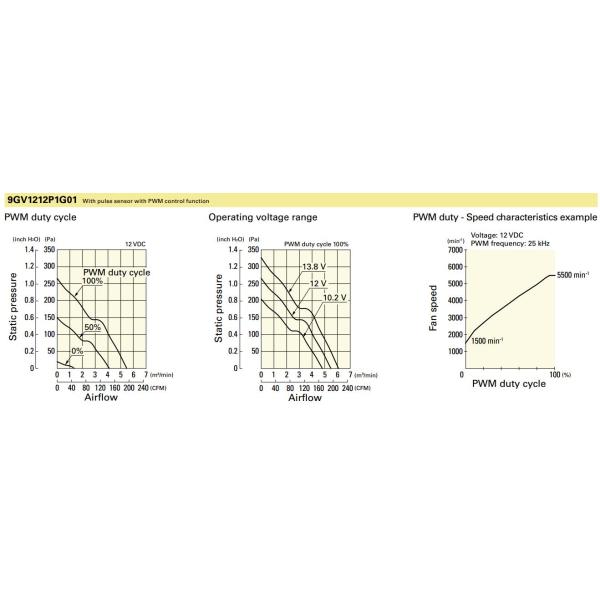

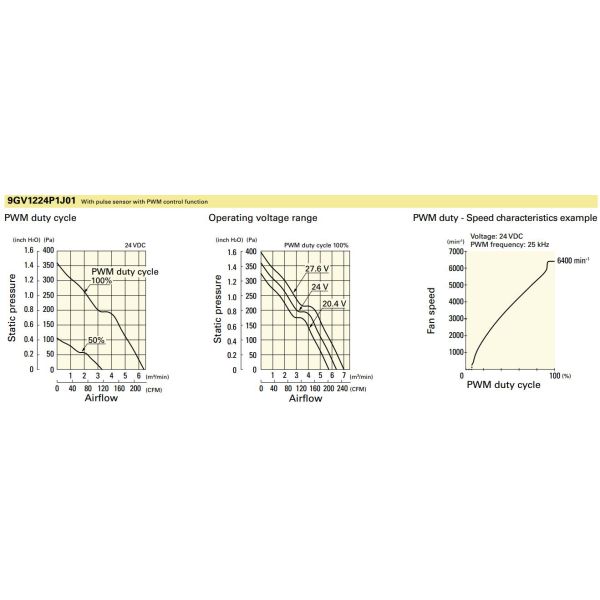

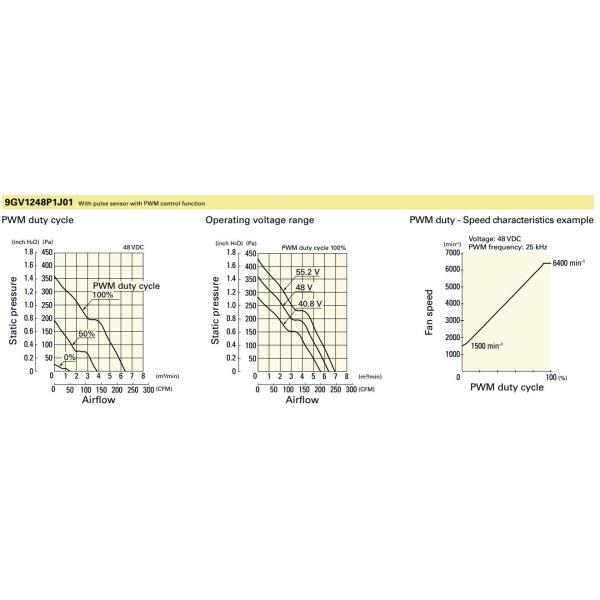

Dimensions ( Unit:mm ) and Fan Perfprmance Curve :

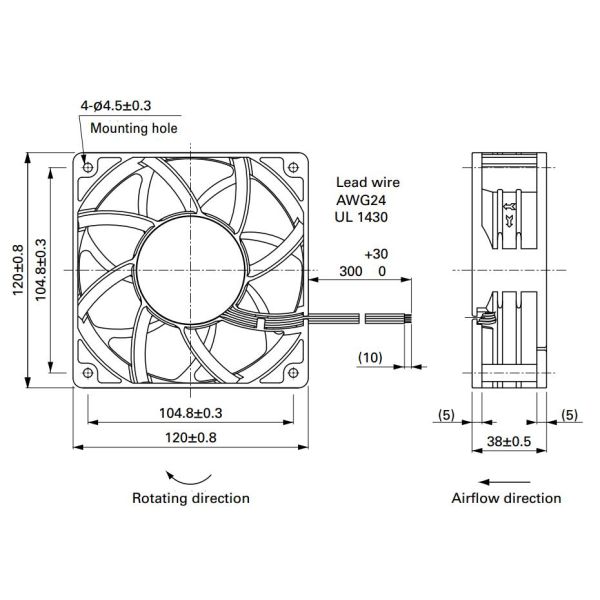

Dimensions (unit: mm) (With ribs)

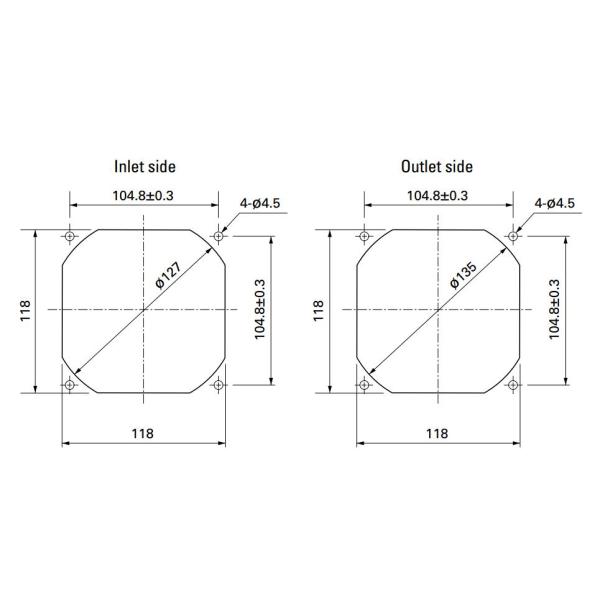

Reference Dimensions of Mounting Holes and Vent Opening (unit: mm)

Options

Finger guards:

Model no.: 109-019C, 109-019H, 109-019E, 109-019K

Resin flter kits:
Model no.: 109-1000F13 (13PPI), 109-1000F20 (20PPI),
109-1000F30 (30PPI), 109-1000F40 (40PPI)

Resin fnger guards:
Model no.: 109-1000G
