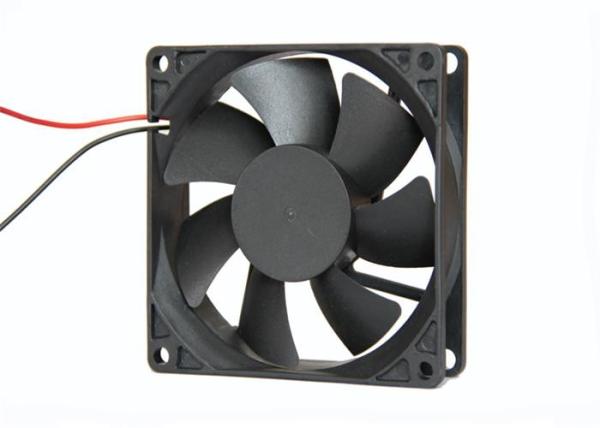

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise
High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise
High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise
High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise
Specifications
Brand Name :
MX
Model Number :
MX8032ABH1
Certification :
CE / ROSH
Place of Origin :
China
MOQ :
500pcs
Price :
US $ 2.6 / PCS - US 6.50 / PCS
Payment Terms :
T / T , Paypal
Supply Ability :
20 , 000 / DAY
Delivery Time :
10 - 15 working days
Packaging Details :
CARTON BOX
Material :
Plastic
Size :
80mm X 80mm X 32mm
Bearing type :
Ball / Sleeve
Speed :
3500-6500rpm
Air Flow :
43-79CFM
Motor type :
DC Brushless Motor
Color :
Balck
Voltage :
12V / 24V / 48V
Impeller :
7 blades
Description

High power brushless motor 80mm dc cooling fan with low noise

Specification

Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG RD PWM IP58 IP68
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 12V 24V 48V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noiseHigh power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX8032AB(S)U1 B.S 12 7.0-13.8 1.50 18.00 6500 79.70 2.26 0.84 208.39 51.00 95.00
MX8032AB(S)H1 B.S 12 7.0-13.8 0.90 10.80 5500 67.37 1.91 0.58 144.45 45.00 95.00
MX8032AB(S)M1 B.S 12 7.0-13.8 0.60 7.20 4500 54.99 1.56 0.41 101.89 40.00 95.00
MX8032AB(S)L1 B.S 12 7.0-13.8 0.40 4.80 3500 43.01 1.22 0.25 62.66 34.00 95.00
MX8032AB(S)U2 B.S 24 14.0-27.6 0.80 19.20 6500 79.70 2.26 0.84 208.39 51.00 95.00
MX8032AB(S)H2 B.S 24 14.0-27.6 0.50 12.00 5500 67.37 1.91 0.58 144.45 45.00 95.00
MX8032AB(S)M2 B.S 24 14.0-27.6 0.30 7.20 4500 54.99 1.56 0.41 101.89 40.00 95.00
MX8032AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 3500 43.01 1.22 0.25 62.66 34.00 95.00
MX8032AB(S)U4 B.S 48 28.0-56.0 0.50 24.00 6500 79.70 2.26 0.84 208.39 51.00 95.00
MX8032AB(S)H4 B.S 48 28.0-56.0 0.30 14.40 5500 67.37 1.91 0.58 144.45 45.00 95.00
MX8032AB(S)M4 B.S 48 28.0-56.0 0.20 9.60 4500 54.99 1.56 0.41 101.89 40.00 95.00
MX8032AB(S)L4 B.S 48 28.0-56.0 0.10 4.80 3500 43.01 1.22 0.25 62.66 34.00 95.00

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise

Producing process

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise

Rated products

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise


Shipment and payment
Packing:
Carton box or according to customers demand
Shipment:
1. FOB Shenzhen or HongKong (mass production)
2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)
Delivery Time:
Generally, 500~1000pics 10 days after confirming the PI
Payment:
T/T and paybal
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.

High power brushless motor 80mm dc cooling fan 80 x 80 x 32 mm with low noise

AFQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for but not free
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
