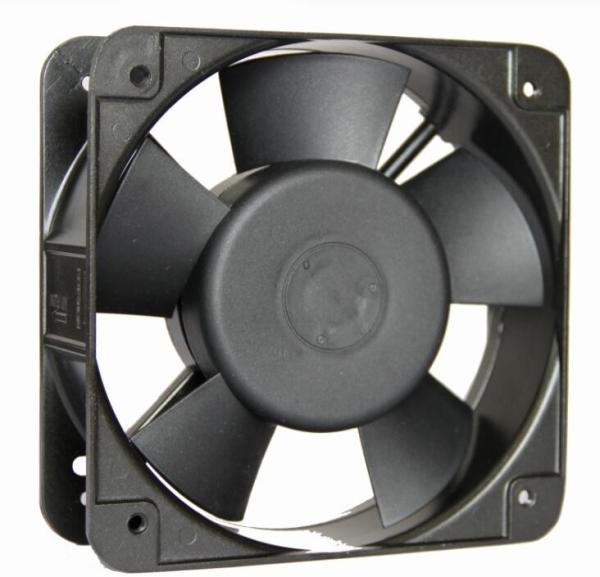

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan
High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan
High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan
High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX15051ABH22
Certification :
CE/ROHS/UL
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Voltage :
110-120V , 220V-240V
Frequency :
50/60hz
Power Consumption :
44-35W
Speed :
2500/2200RPM
Framework Material :
Aluminum
Impeller Material :
Plastic
Description

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan


Applications:


Topfan’s 150 × 150 × 51mm AC fan products are utilized by all type of machines which required heat reduction systems, such as computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

  • Size 150 × 150 × 51mm AC axial flow cooling fan.
  • Waterproof, brushless ac motor fan, air-conditioner fan, LCD display fan, BBQ machine fan, server cabinet fan.
  • Stable quality, big airflow, low noise.
  • Both ball and sleeve bearing choose, copper wire.
  • Motor protection: Impedance protect.
  • Wire type: -AT Terminal / -AW Wires
  • Working temperature:
  • Ball bearing: -30°C~75°C
  • Sleeve bearing: -10°C~70°C
  • Protection level: IP44
  • Net weight: 1200g

General Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX15051ABH11 B 110/120 50/60 0.44/0.46 30/37 2500/2100 200/187 5.4/6.0 0.55/0.50 53/48 850
MX15051ABH22 B 220/240 50/60 0.26/0.28 44/35 2500/2200 200/190 5.4/6.0 0.55/0.50 53/48 850
MX15051ABH38 B 380-400 50/60 0.15/0.13 38/35 2500/2200 200/190 5.4/6.0 0.55/0.50 53/48 850

Electrical Specification:

Item

Specification/Condition

01

Dielectric Strength

1800V/0.5mA/3s

02

Insulation Resistance

N/A

03

Temperature Test of Run

△t=<70℃

(Rated Voltage)

04

Locked Rotor Protection

△t=<130℃

(Rated Voltage)

Safety Approvals:

Safety Approvals

File No

Safety Approvals

File No

UL

N/A

RoHS-TUV

N/A

CUL

N/A

CCC

N/A

TUV

N/A

CE

N/A

TUV-GS

N/A

C-Tick

N/A

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

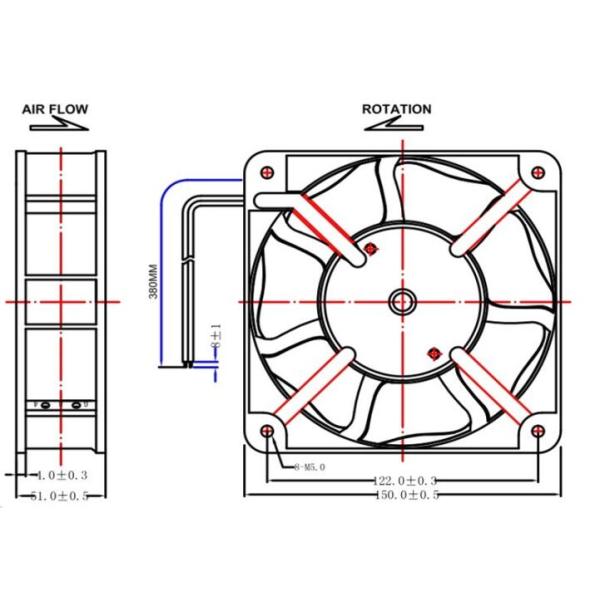

Dimension:

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan

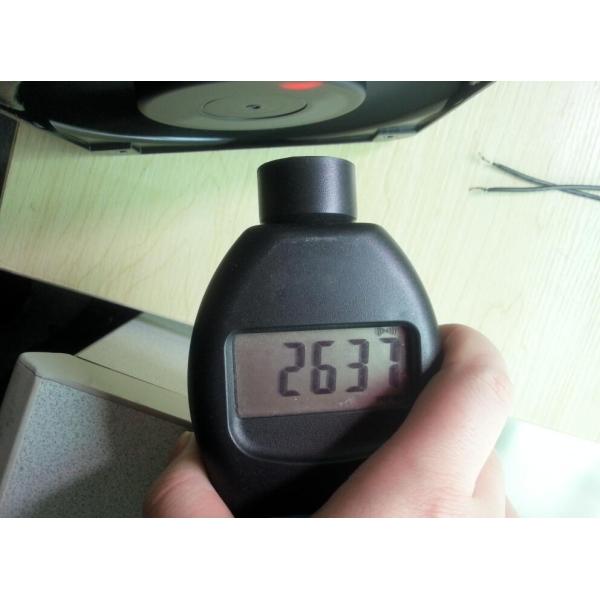

Speed Test:

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan

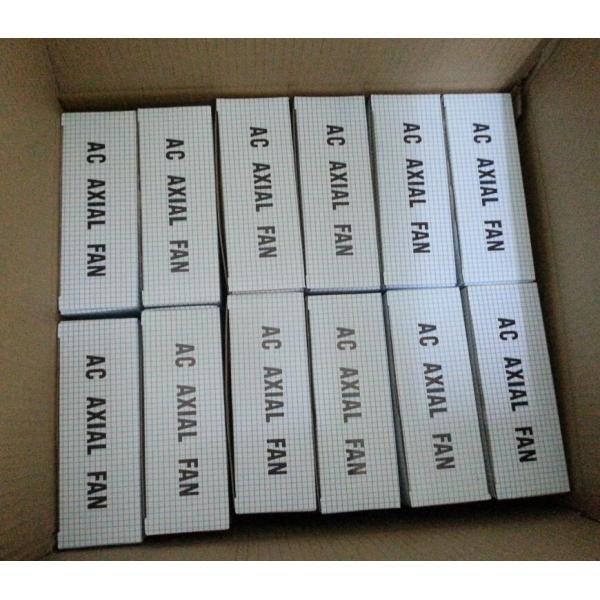

Package:

High Temperature Resistant Industrial Roof Ventilation Fans , AC Motor Cooler Fan


About Our Company

1. As a professional manufacturer, we specialize in Brushless DC&AC cooling fans and CPU coolers for over 10 years.

2. Our products are extensively applied to all kinds of refrigeration equipments, air conditioner, cooling and ventilation instruments.

3. Customized design is available.

4. OEM &ODM service are welcome.

5.Factory qualification with CE,UL,ROHS,FCC,TUV.

How to Select a right cooling fan?


A: Where are you used? Application for what?
B: What's size limitation do you have?
C: What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?
D: What's power or CFM airflow required?
It will help us to give you good idea to quote

Any more information , please feel free to contact Mona ——→

We will reply you within 2 hours . Thanks

Skype : helen860615

QQ : 304994675

Tel : 86 755 26070926

Mobile :0086-15818540201
