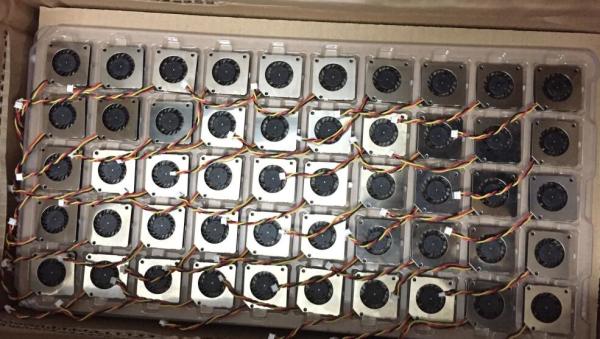

Equipment Mini Fan 30 mm / Induction cooker Cooling Fan / High Air Flow Fan

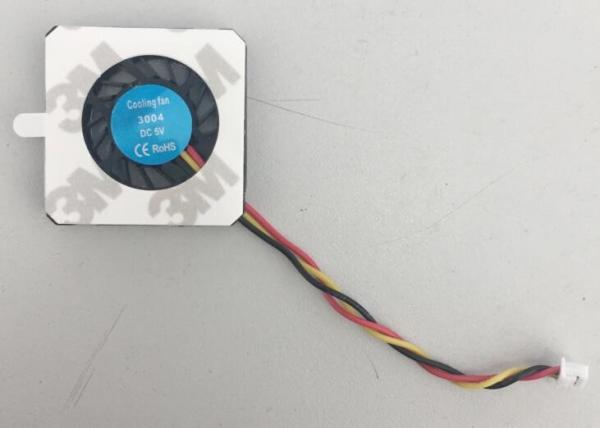

Brushless axial dc fan 30 x 30 x 4mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

1. ELECTRICAL :

Standard operating condition is 25℃, 65%RH ambient, unless otherwise specified.

	Item	Specification	Test Condition
1	Rated Voltage	5.0 VDC	DC power supply
2	Rated Current	0.06A±10%	DC power supply at Rated Voltage
4	Rated Power	0.25 W	At Rated Voltage.
5	Starting Voltage	3.3 VDC	DC power supply
6	Operating Voltage Range	3.3 – 5.5 VDC	DC power supply
7	Speed	8000 RPM ±15%	Measured at 5 minutes after starting under 25±5℃, 65±5%RH ambient
8	Acoustical Noise	27.5 DBA ±4 DBA	Measured at typical speed with an acoustic microphone 1 meter away from the fan intake in a test chamber with background noise level below 18dB(A)
9	Static Pressure	3.61 mmH2O	Refer to PERFORMANCE CHART ITEM 9 at zero airflow.
10	Air Flow	0. 63 CFM	Refer to PERFORMANCE CHART ITEM 9 at zero static Pressure.
11	Direction of rotation	Counter-anticlockwise	DC power supply, viewed from impeller.
12	Noise test

2 .MECHANICAL

3. MATERIAL

4.EXPECTED LIFE SPAN (MTBF)

At a standard operating condition of 10±5℃, 80±5%RH ambient

HYDRAULIC Bearing:20000 hrs , Continuous operating under 45℃ 65%RH

HYDRAULIC Bearing:10000 hrs , Intermittent operating under 85℃ 65%RH

5. ASSEMBLY DIAGRAM

NOTE:

1. LEAD WIRE UL 1571 28AWG

RED WIRE --------- ( + )

BLACK WIRE --------- (—)

BLUE WIRE --------- (FG)

2. Cable: 300mm

6. Specification And Fan Performance Curve:

Description About Our Company :

Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates production , research , development and sales . It has 3000 flat plant and professional design and production team . At present , the company has production development department , Q & C department ,R & D department , the domestic sales department and overseas sales department .

Shipment:

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Any more information , please feel free to contact Helen ——→

We will reply you within 2 hours . Thanks
