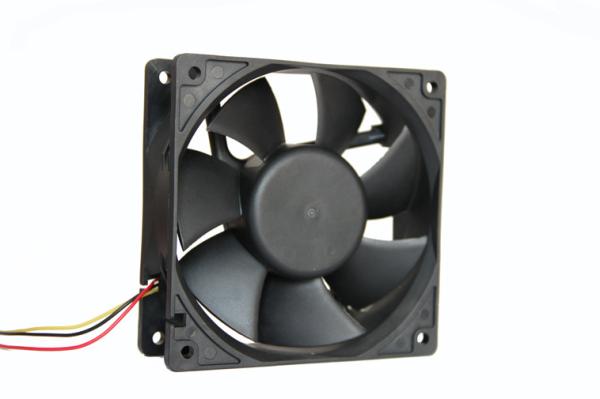

High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan
High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan
High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan
High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX12038AH1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12v/24v/48v
Speed :
4000-2500rpm
Max air Flow :
101-166CFM
Bearing Type :
Ball Bearing/Sleeve Bearing
Material :
Plastic
Expected Life :
50,000-30,000 hours(40C)
Description

High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan

120×120×38mm Cooling Fan , low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

  • Voltage:12V , 24V, 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
  • Opetation Temperature:-10℃～70℃(Ordinary humidity)
  • Storage Temperature:-40℃～70℃(Ordinary humidity)
  • Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)

Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min

Inch-

H2O

 pa dB-A g
MX12038AB(S)U1 B.S 12 7.0-13.8 1.50 18.00 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H1 B.S 12 7.0-13.8 1.00 12.00 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M1 B.S 12 7.0-13.8 0.60 7.20 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L1 B.S 12 7.0-13.8 0.40 4.80 2500 101.85 2.88 0.26 64.63 40.00 262.00
MX12038AB(S)U2 B.S 24 14.0-27.6 1.00 24.00 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H2 B.S 24 14.0-27.6 0.60 14.40 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M2 B.S 24 14.0-27.6 0.40 9.60 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 2500 101.85 2.88 0.26 64.63 40.00 262.00
MX12038AB(S)U4 B.S 48 28.0-56.0 0.60 28.80 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H4 B.S 48 28.0-56.0 0.40 19.20 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M4 B.S 48 28.0-56.0 0.20 9.60 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L4 B.S 48 28.0-56.0 0.12 5.76 2500 101.85 2.88 0.26 64.63 40.00 262.00

Dimensions (Uint:mm)

High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan

High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan

Usage:

High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan

Certification:


High Speed Equipment Cooling Fans High Air Flow Equipment Cooling Fan Explosion Fan

How to Select a right cooling fan?

A:Where are you used? Application for what

What's size limitation do you have?

What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

What's power or CFM airflow required?

It will help us to give you good idea to quote

Application : equipment , electronic equipment , medical equipment , computers , power supplies ,

welding machines , packaging , printing equipment , satellite communications , CNC , machinery and

office automation products such as ventilation and cooling purposes . Electrical Fireplace , Oven , Wall

Cooler , Disinfecting cabinet , Warmer , Microwave , Refrigerator , Cooler , etc .

Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates

production , research , development and sales . It has 3000 flat plant and professional design and

production team . At present , the company has production development department , Q & C department ,

R & D department , the domestic sales department and overseas sales department .

Shipment

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Any more information , please feel free to contact Mona ——→

We will reply you within 2 hours . Thanks

Skype : helen860615

QQ : 304994675

Tel : 86 755 26070926

Mobile :0086-15818540201
