Specifications
Brand Name :
MX
Model Number :
MX17251ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Product Name :
172mm × 150mm × 51mm AC Brushless Fan
Voltage :
110V-120V / 220V-240V / 380V
Frequency :
50/60hz
Air Flow :
200/190CFM
Frame Material :
Aluminum Alloy
Impellear Material :
Plastic
Description

172 x 150 x 51 mm AC Radiator Cooling Fan / High Speed Industrial Equipment Fan


Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0



Model:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX17251ABH11 B 110/120 50/60 0.44/0.46 30/37 2500/2100 200/187 5.4/6.0 0.55/0.5 53/48 900
MX17251ABH22 B 220/240 50/60 0.26/0.28 44/35 2500/2200 200/190 5.4/6.0 0.55/0.5 43/48 900
MX17251ABH38 B 380/400 50/60 0.15/0.13 38/35 2500/2200 200/190 5.4/6.0 0.55/0.5 53/48 900

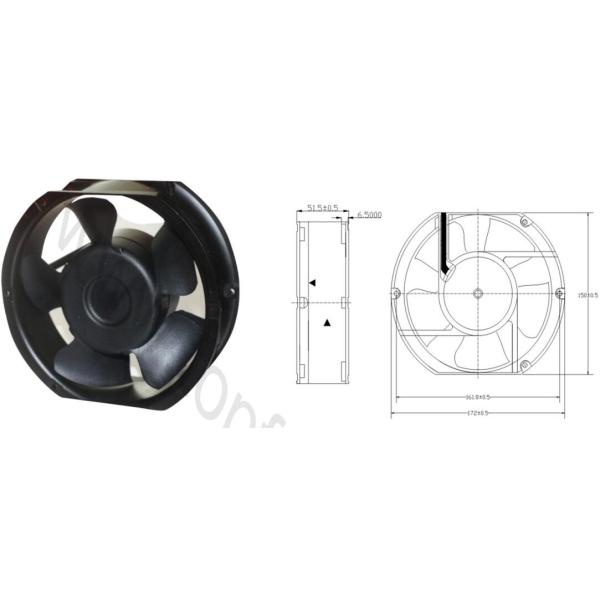

Dimensions (Unit:mm)

Radiator Cooling AC Brushless Fan High Speed Industrial Equipment 172 X 150 X 51mm

Radiator Cooling AC Brushless Fan High Speed Industrial Equipment 172 X 150 X 51mm

FAQ:

1.How about the lifetime about fan?

Life Expectancy:
Dual Ball Bearing: 50000 hours
Sleeve Bearing: 30000 hours
Hydraulic Bearing: 30000 hours

2.What effects the quoted price for the fan?
The specification(size),bearing type and voltage.
3.Certification?
CE, ROSH,UL,ISO9001 Approved.
4.Delivery time?
Sample lead time:3-5 days
Delivery lead time:2 weeks
5.Payments of terms ?
Payment by T/T or Paypal .
100% payment for sample orders .
30% deposit and 70% balance before shipment .
6.Delivery ways ?
FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
